| Prod Model: |
HZ26341 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Hardness: |
Soft, Middle, Hard |
| Cutting Speed: |
10-40 |
| Wire Speed(M/S): |
30-40 |
| Technology: |
Sintered, Electroplated, Vacuum Brazed |
| Certification: |
ISO9001:2000, SGS |
| Beads Diameter: |
7.2-11.5mm |
| Production Processes: |
More Than 70 Processes, 100% Quality Testing |
| Power Source: |
Hydraulic |
Product Description
New Arrival High Precision Diamond Wire Saw For Quarry
| Application | 1.For Stone Quarry,Block Squaring&Chamfering,Profiling Cutting
2.For Cutting Reinforce Concrete |
| Diameter Of Wire Saw | 7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm |
| Technology | Sintered,Electroplated,Vaccum Brazed |
| Coating Fix Injection | Plastic,Rubber,Spring,Rubber+Spring,Plastic+Spring |
| Beads/Meter | 40/37/33/28/26pcs |
| Attention | l. Checking the saw regularly and adjust timely.
2.Checking the pearl abrade regularly,Avoid the eccentric wear
3. Checking the joint regularly and adjust timely.
4. The tension of ropes is 250-300kg(Φ4-5mm ropes)
5.Water supply is around 15-25L/min |
| Feature | 1.Very less breakage ratio when using therefore increase working lifetime.
2.Automatic production ensures stable quality performance.
3.Safe, high efficiency and environment protecting. |

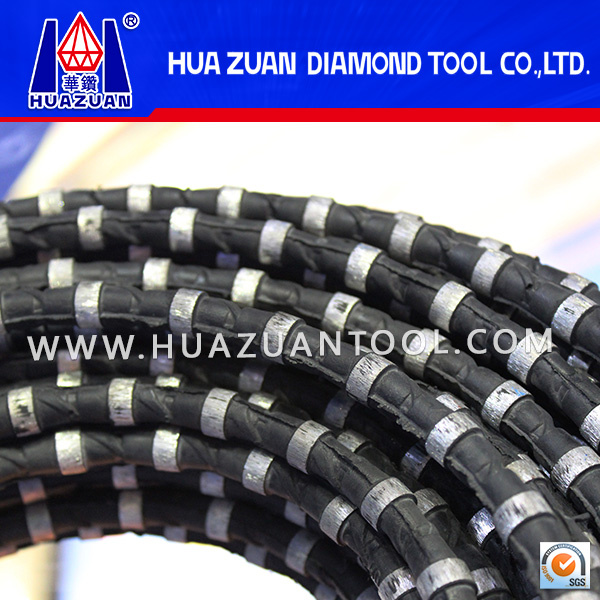

Product photo:
Our Advantage:
There are some parameter for your reference:
Diamond wire saw for Granite quarry
Compared with other methods,the use of diamond wire saw for granite quarrying reduces the waste of quarry resource, no noise ,no dust ,block regular,high output and working efficiency.
| Beads diameter | Beads/meter | Coating | Stone hardness | Wire speed(m/s) | Cutting speed(m²/h) | Life (m²/m) |
Φ10.5mm
Φ11mm
Φ11.5mm | 40 | Rubber
Rubber + Spring | Soft | 25-30 | 8-12 | 16-22 |
| Middle | 22-25 | 4-8 | 8-15 |
| Hard | 18-22 | 2-4 | 7-9 |
Φ10.5mm
Φ11mm
Φ11.5mm | Plastic
Plastic +
Spring | Soft | 25-30 | 8-12 | 16-22 |
| Middle | 22-25 | 4-8 | 8-15 |
| Soft | 18-22 | 2-4 | 7-9 |
Diamond wire saw for Marble quarry
| Beads diameter | Beads/meter | Coating | Stone hardness | Wire speed(m/s) | Cutting speed(m²/h) | Life (m²/m) |
Φ10.5mm
Φ11mm
Φ11.5mm | 26/28 | Spring | Soft | 36-38 | 19-22 | 35-65 |
| Middle | 34-36 | 9-18 | 20-35 |
| Hard | 30-32 | 6-9 | 15-25 |
Φ10.5mm
Φ11mm
Φ11.5mm | 33 | Plastic
Plastic +
Spring | Soft | 36-38 | 19-22 | 35-65 |
| Middle | 34-36 | 9-18 | 20-35 |
| Hard | 30-32 | 6-9 | 15-25 |
Φ10.5mm
Φ11mm
Φ11.5mm | Rubber | Soft | 36-38 | 19-22 | 35-65 |
| Middle | 34-36 | 9-18 | 20-35 |
| Hard | 30-32 | 6-9 | 15-25 |
*Other specifications are available upon request.
