Prod Model: |
CSNXB250 |
Density: |
1.8g/cm3 |
Working Temperature: |
200±50 |
Compressibility: |
7~17 |
Recovery: |
35 |
Thickness: |
0.5-5.0mm |
Standard: |
Nonstandard |
Type: |
Csnxb250 |

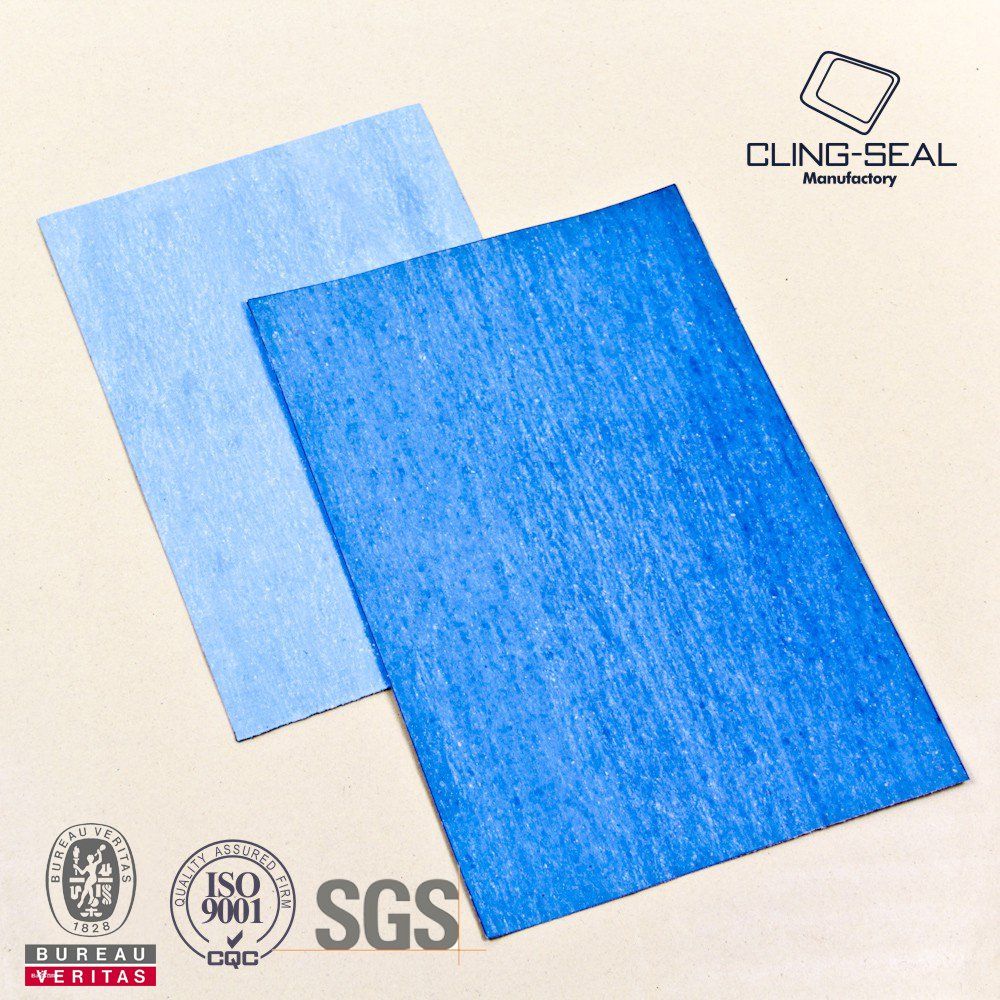

Product Description
From this page you can purchase non asbestos jointing gasket sheet from 0.5 to 5mm thickness. Remember that as a general rule you should select the thinnest material possible for your application.
General Properties of Non-asbestos jointing gasket sheet compressed with aramid firbre and NBR.It generally have very good oil resistant properties. They are also good for use in applications that put them into contact with water, petrol, or natural gas.
As such, non-asbestos jointing gasket are used in air compressors, diesel engines, pipelines, and many other general industrial and marine environments.
If you can't find what you are looking for, or require a bespoke material, please do not hesitate to contact us.
Is Non-Asbestos jointing sheet the Best Material for My Application? If you are unsure as to which material is best for your application then you can consult our gasket material selector. Material specifications can be downloaded from the link on the left of this page.
Alternatively, we are always happy to offer technical help and advice and so if you require assistance then please do not hesitate to contact us.
Product Information:
It made of aramid fiber, non asbestos mineral fiber, synthetic fiber, synthetic oil resistant rubber, Compressed by hot roller, vulcanized.
Product Type
It have following type based on different temperature(Numbers means peak temperature)
CSNXB150; CSNXB250; CSNXB350
Product Features:
·Good adaptability and durability, good sealing, no delamination, high yield
·An economical sealing gasket and exhaust, manifold gasket material
·Proved by ISO9001 UKAS,100% no asbestos
·Good oil-resistance.
Product Application:
Engine, Air compressor, Gearbox ,Pipe line and Flange sealing
Product Size:
Thickness-------0.5-5.0mm
Size---1500*1500mm,1500*2000mm,1500*4500mm,1270*1270mm,1270*3810mm
Size can be customized by clients.
Physical Property:
Items | CSNXB150 | CSNXB250 | CSNXB350 |
Tensile Strength | Mpa | 7.0 | 8.0 | 10.0 |
Compressibility | % | 7-17 |
Recovery | ≥% | 40 | 45 | 50 |
Creep relaxation | ≤% | 40 | 35 | 30 |
Density | g/cm3 | 1.8±0.1 |
Flexibility at room temperature | Bend 180°C on the rod with diameter which is 12 times of nominal thickness of the sample, no crack. |
Immersed into ASTM 3# at 150ºC for 5h | Tensile Strength | MPa≥ | 5.0 | 6.0 | 7.0 |
Weight Increase | ≤% | 30 |
Immersed into ASTM B at21-30ºC for 5h | Thickness Increase | - | 0-20 |
Flexibility | - | No crack |
Working Temperature | Max/Continuous | ºC | 200/150 | 300/250 | 350/300 |
Working Pressure | Max/Continuous | MPa | 2.0/1.0 | 4.0/2.0 | 5.0/3.0 |

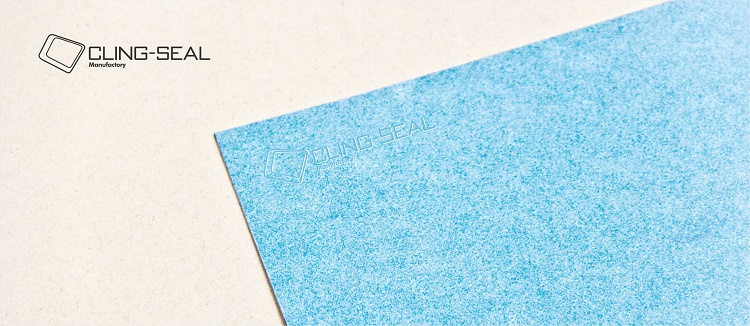

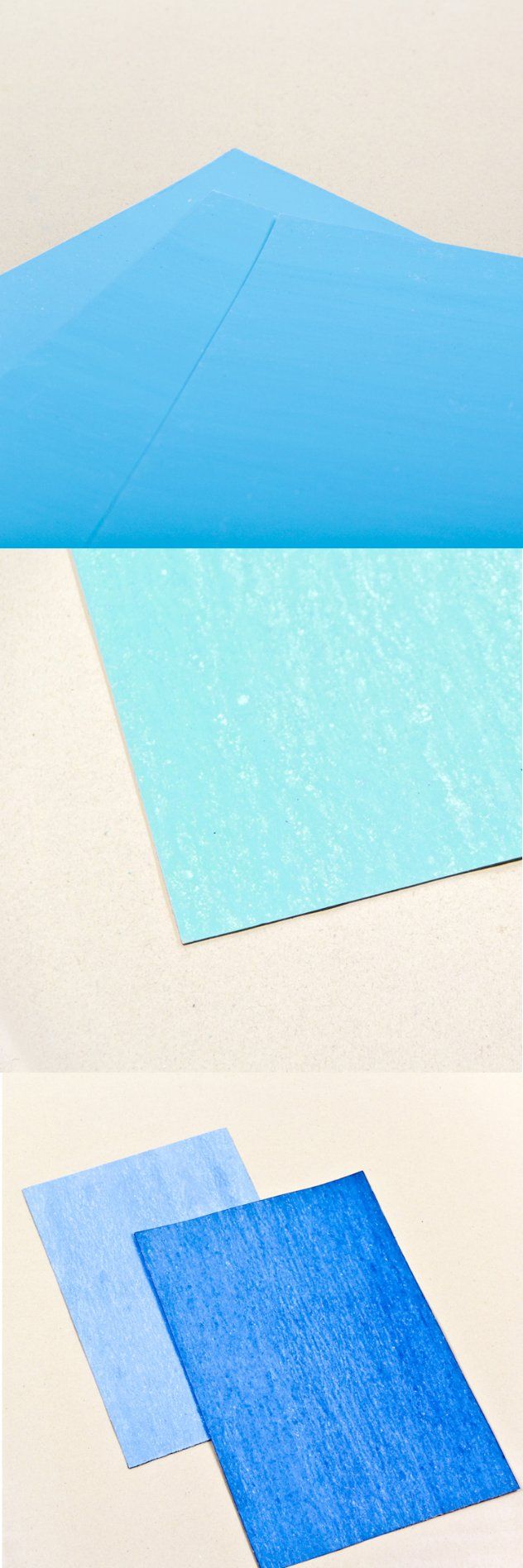

Product Shows
Product Technical Details
As a general rule, Non-asbestos jointing gasket sheet is:
• Good for use with water
• Good for use with petrol
• Have good resistance to oil
Customer Service
We are happy to answer any questions that you might have about this product. Please contact us for more information.
