| Price: | US $ 2.38-3.016 |
|---|---|
| Min Order: | 20016 |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | cs1080T |
|---|---|
| Density: | 2.1-2.2g/cm3 |
| Working Temperature: | 500deg |
| Compressibility: | 10-20% |
| Recovery: | >35% |
| Thickness: | 1.0-3.0mm |
| Standard: | Nonstandard |
| Type: | CS1080t |
From this page you can purchase graphite gasket sheet from 1.0 to 3mm thickness. Remember that as a general rule you should select the thinnest material possible for your application.

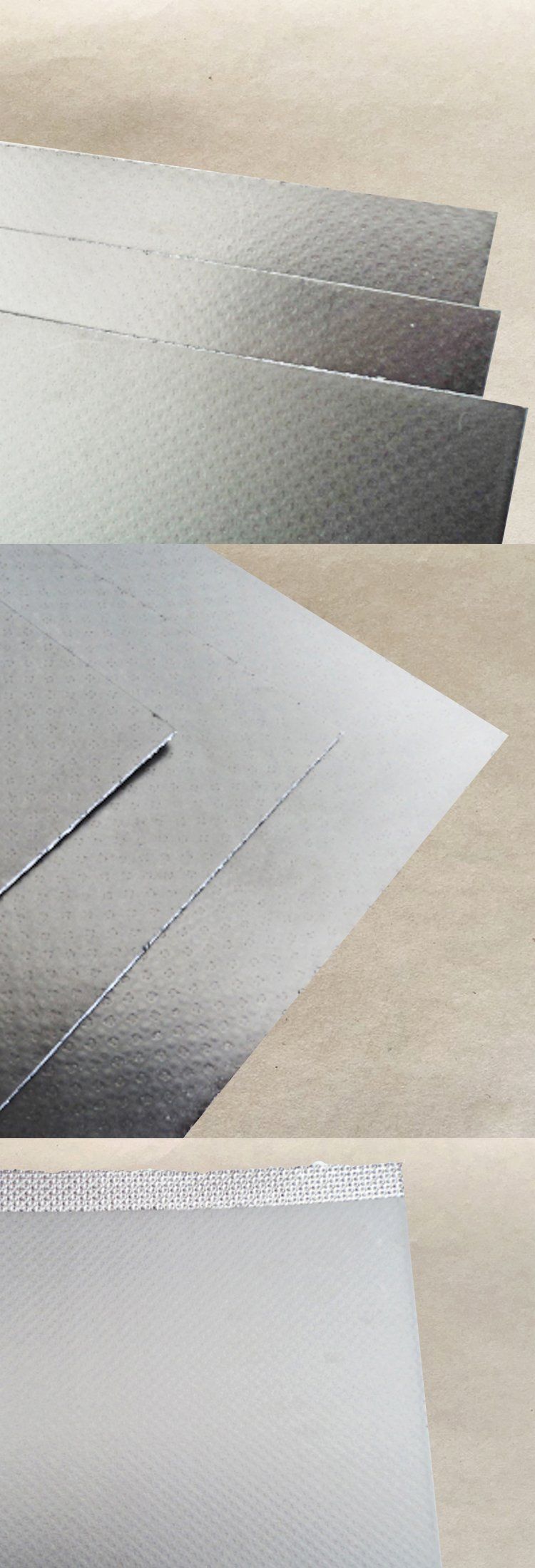

General Properties of Graphite gasket sheet is made from two sides Pure flexible graphite sheet with 0.2-0.25mm perforated metal insert. It generally used in high temperature and high pressure environments, and commonly finds applications in steam cycling or exhaust applications.
If you can't find what you're looking for, of require a bespoke material, please do not hesitate to contact us.
Is Graphite the Best Material for My Application? If you are unsure as to which material is best for your application then you can consult our gasket material selector, or our guide to rubbers.
Alternatively, we are always happy to offer technical help and advice and so if you require assistance then please do not hesitate to contact us.
Product Formation:

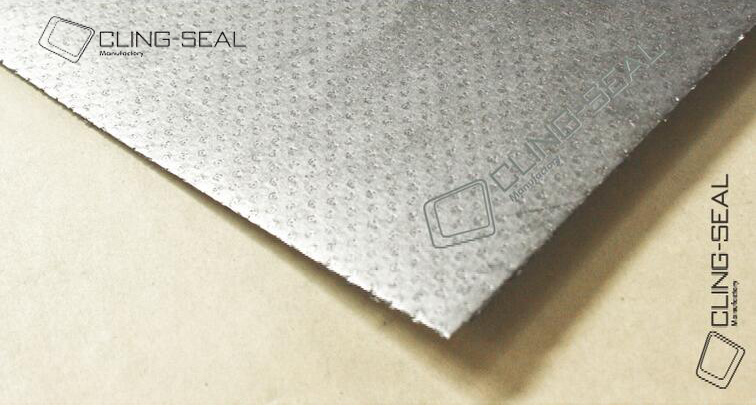

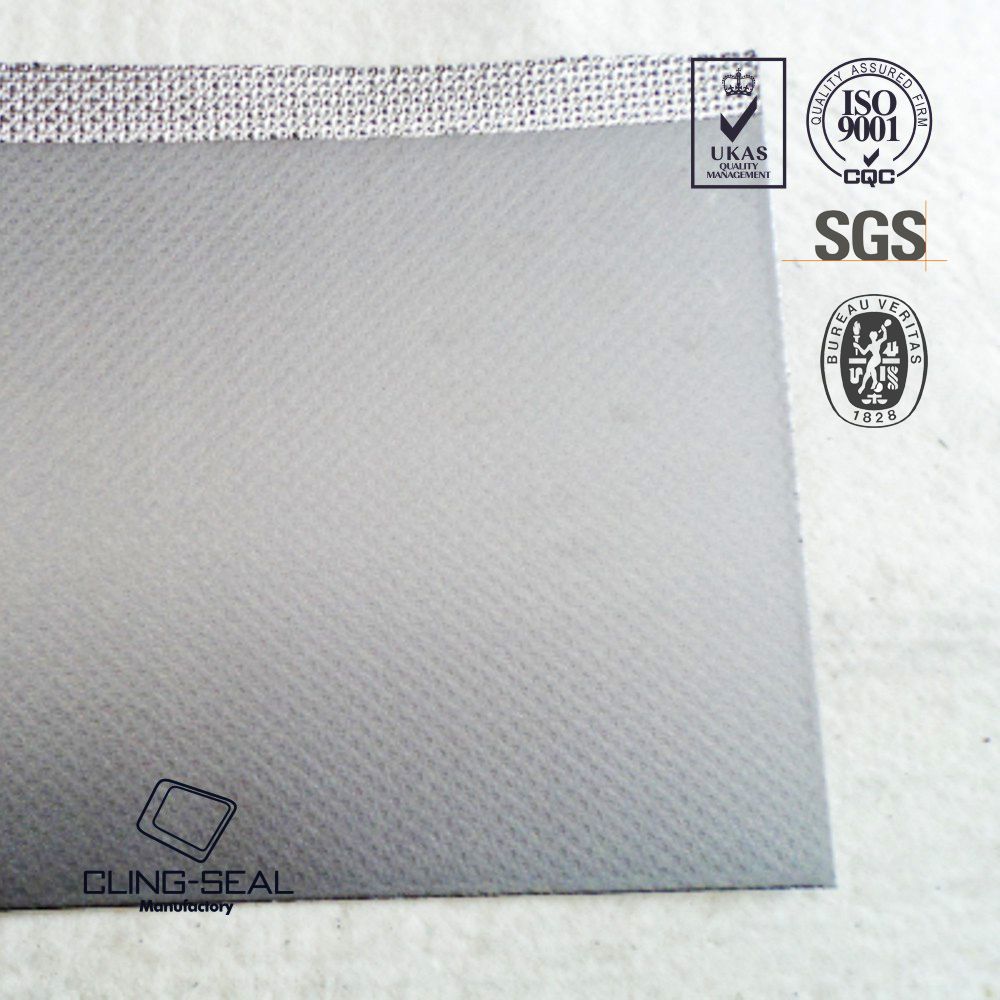

It made from two sides flexible graphite sheet with perforated metal insert. Metal usual be 0.2-0.25mm carbon steel, called tinplate. It also can be ss201, 304,316. Carbon content are 95,97,98,99% for selected.
Product Features:
·Good adaptability and durability, good sealing, no delamination, high yield
·An economical sealing gasket and exhaust, manifold gasket material
·Good oil-resistance.
·Suitable for High temperature and pressure resistance
Product Application:
It suitable for oil sealing and gasket, cylinder head gasket
Product Size:
Thickness-------1.0-6.0mm Notice: While thicker, it can be 3+2 type(Product section from top to bottom in order are Paper-Metal-Paper-Metal-Paper) and Multi paper bonding technology
Size---500*500mm;500*1000mm;500*1500mm;1000*1000mm;1000*1500mm
Size can be customized by clients.
Physical Property:
Item | Data | |
Tensile Strength (MPa,min.) | ≥30 | |
Compressibility (%,) | 10-20 | |
Recovery (%) | ≥35 | |
150ºC, At IRM 903# for 5hours | Thickness Increase(%) | ≤10 |
Weight Increase(%) | ≤10 | |
21ºC~30ºC, At B Fuel for 5hours | Thickness Increase(%) | ≤10 |
Weight Increase(%) | ≤10 | |
Thickness Deviation(mm) | 0.05 | |
We are happy to answer any questions that you might have about this product. Please contact us for more information.
About Us
Cling-Seal Manufacturing co.Ltd. is a factory of manufacturing & export various gasket material and exhaust gasket in China. We have been sold our products for 12 years in China market, and 9 years in global market. We have more than 12 years experience in producing deferrent reinforced seal gasket paper.
Ours main products are non-asbestos reinforced sheet, graphite reinforced sheet, double steel non asbestos (graphite) composite sheet, high quality reinforced perforated metal cylinder head gasket materials, flexible graphite gasket materials, compressed sheet jointing gasket materials, gasket filler materials etc. It is easy to cut gaskets at very cheap prices for a wide range of industries. Inserted metal could be tinplate or stainless steel. Thickness of tinplate is 0.18mm to 0.25mm. Thickness of stainless steel is 0.10mm (SS304,SS316),0.15mm (SS201).
All of our products are extensively applied in petroleum, chemical industry, electrical power, metallurgy, automobiles, motorcycle, ship building, food, paper, mining, steel and pharmacy etc. which help user to solve the leak problem, now our products have been sold to Europe, Japan, South Korea, Taiwan, Singapore, South America, Middle-East and Africa etc. many countries and regions.
