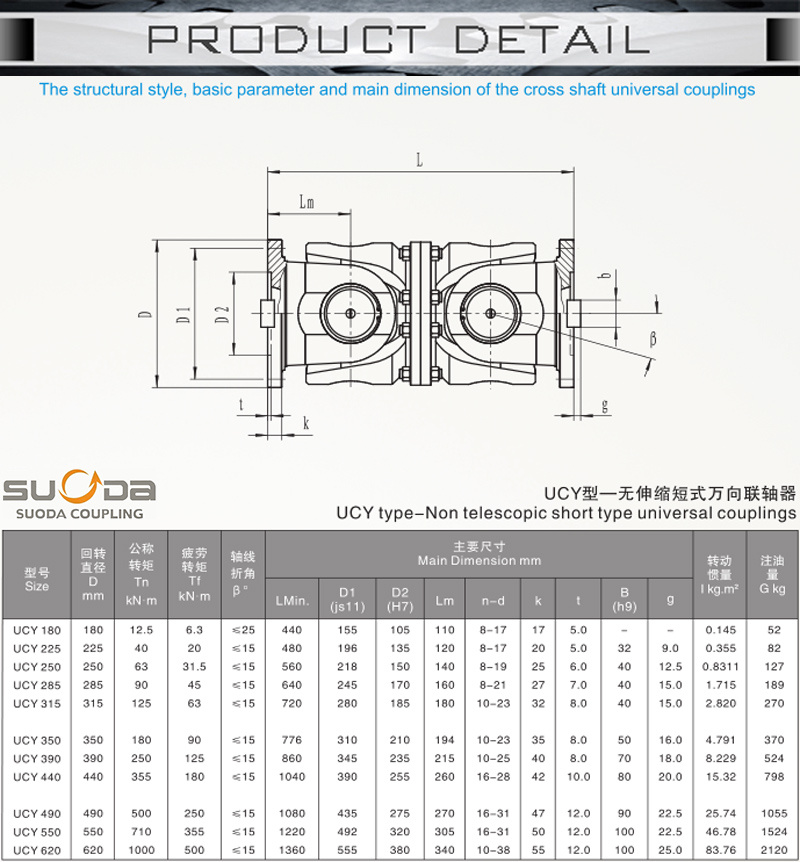

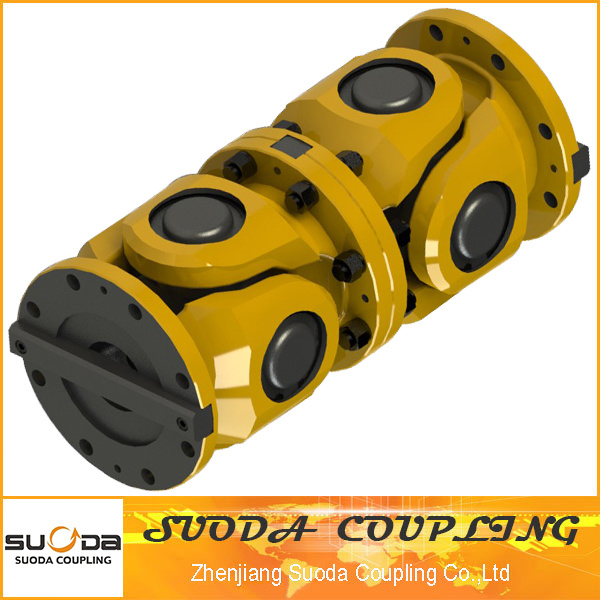

Non Telescopic Short Type Universal Coupling
| Price: |
US $ 10/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
UCY Type |
| Size: |
Ucy 180-620 |
| Maintenance: |
Oil or Grease |
| Rigid Or Flexible: |
Rigid |
| QC: |
ISO9001 |
| Delivery Time: |
15-45 Days |
| Color: |
Customer Required |
| Standard Or Non-Standard: |
Standard |
| Connect: |
Keyed |
| Manufacturing Method: |
Cut Gear |
| Toothed Portion Shape: |
Curved Gear |
| Type: |
Circular Gear |
| Material: |
Customer Required |
Product Description
Suoda Philosophy: Quality is fundamentality, Innovation is soul, Agility is chance, Customer get benefit.
The advantage of Suoda Universal coupling
•The fork of Small specification universal coupling uses forgings production.
•According to the use of customer demand, ,in addition to the standard structure, the shaft sleeve and the linkage of universal shaft coupling, can choose the end face tooth, claws and other forms of design.
•The hole shape connecting shaft sleeve is cylindrical, flat hole, taper-lock a variety of forms, for customers to choose from.
The universal coupling with spder get a wide range of applications because of high transmission efficiency,allows two-axis angular displacement,lower noise and lubrication requirements,realiable work.
According to the fork structure divided into C and P two types.
Suoda universal coupling:
Ability to compensate a large angle.
Large bearing capacity,compared to other types of couplings with same diameter,the greater torque transmitted for the turning diameter limited mechanical equipment.
High transmission efficiency.
Smooth operation,low noise,easy assembly,disassembly and easy maintenance.
suoda manufacturing", the former name was "zhenjiang transmission machinery Co., Ltd ". It is also as a subsidiary company of feida group (listed company, certificate no. ). In 2003, it cooperated with American golden bridge Co., Ltd and set up "zhenjiang suoda coupling Co., Ltd, a sino-American joint venture. After, set up two subsidiary companies which named" zhenjiang suoda precision machinery Co., Ltd" and "zhenjiang suoda precision casting Co., Ltd". Three companies all belong to "suoda manufacturing" division department of feida group.

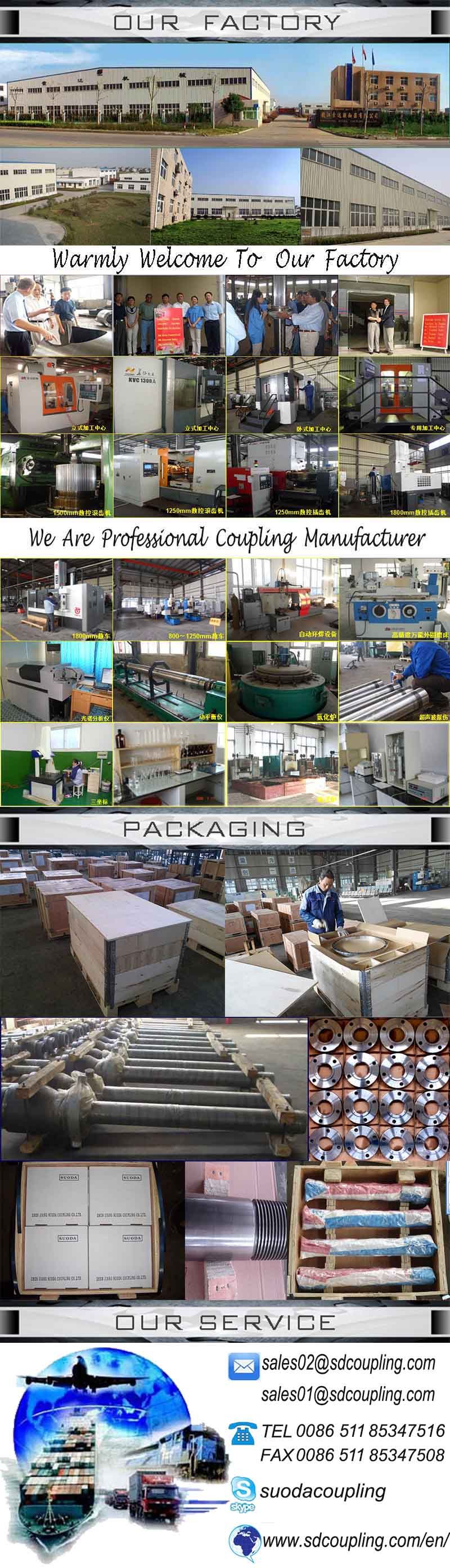

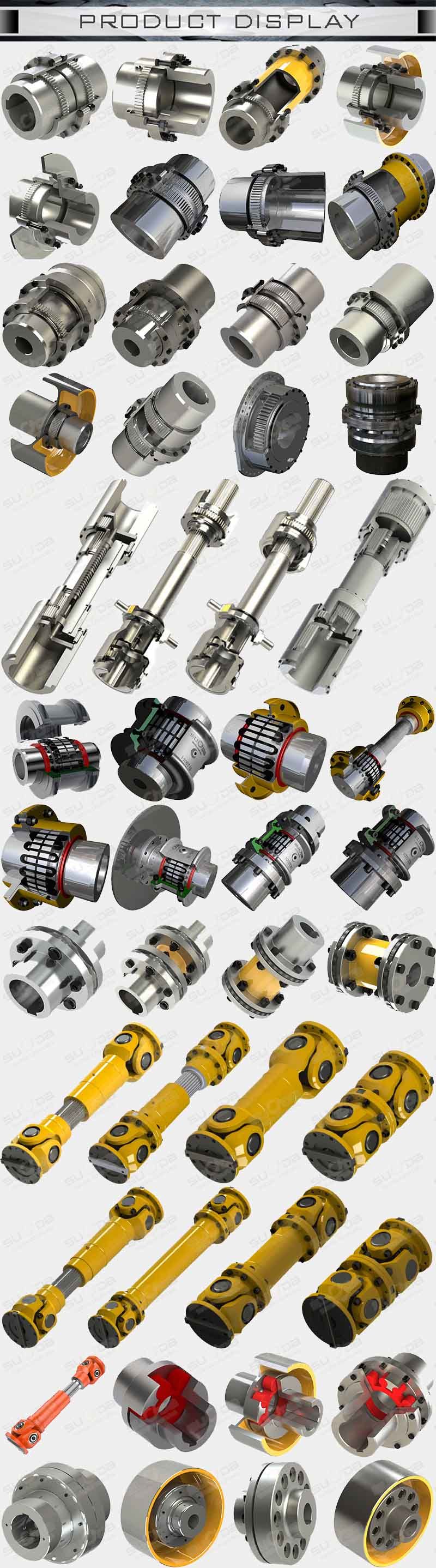

Factory is located in industrial park, dantu new district, zhenjiang. The main products are gear coupling, steelflex grid coupling, film coupling, universal coupling with spider and other type couplings. The main application fields are in port facilities, metallurgy, machinery, rail transport machinery, wind power machinery, rubber machinery, papermaking machinery, mining and heavy machinery industry etc. The company owns 94 employees, 17 technical and quality staff, 11 managers and 5 other staff among. The annual sales value is about 6.5 million dollars. The fixed assets are 2.1 million dollars. The factory total area covers 16800 m2 and area under roof is 8800 m2.
Quality is our life. So we update inspection&test equipments constantly in order to ensure the product quality accurately. About quality we aren't just saying that but action. The goal of product testing is to achieve 100% quality target and zero deflection in the process.
Raw material inspection: Chemical composition testing (chemical assay and spectral analysis), mechanical property testing (yield strength, tensile strength, elongation, hardness), metallographic examination, ultrasonic inspection and radiographic flaw detection.
Inspections during the processes: We must do self-checking and initial product inspection during each process. We must do on-site inspection and random inspection strictly according to the inspection standard. We must do product inspection according to the customers require (universal shaft dynamic balance test, gear coupling dynamic balance test and torsion test) until the quality of product are passed.
From raw material to finished product to end-user, any quality problem can be traced accurately by batch no., raw material heat no. And forging lot no.
Improving business administration is our continual target. Our company implements operations management mode, such as the institutionalizing management, work standardization and normalized conduction. Quality system is established according to ISO ISO9001: 2000 standard and had authenticated by TUV (certificate no.: 01100064733). Full utilizing opportunities of cooperate with overseas companies to improve our quality and management.
Quality-oriented, power by innovation, opportunity by agility.
