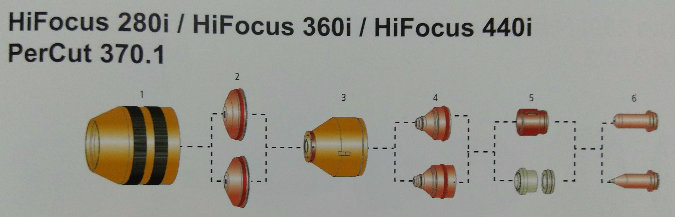

The series of JSI plasma consumables are suitable for HiFocus280i/360i/440i plasma cutting machine, which contains water tube, electrode, tip, nozzle, shield cap, swirl ring, protection cap, retaining cap. All the consumables are made by advanced equipent with high quality material, which gurrantte the high precision and long life.
NO
KJELLBERG®
ALTERNATE REFERENCE
SUNSHINE™
DESCRIPTION
1
.11.848.201.081
G501
JSIG501
Protection Cap 35A-200A
.11.848.401.081
G521
JSIG521
Protection Cap 280A-440A
2
.11.848.201.1520
G4020
JSIG4020
Swirlgas Cap 35A-60A
.11.848.201.1530
G4030
JSIG4030
Swirlgas Cap 90A
.11.848.201.1525
G4025
JSIG4025
Swirlgas Cap 90A
.11.848.201.1522
G4022
JSIG4022
Swirlgas Cap 130A
.11.848.201.1530
G4030
JSIG4030
Swirlgas Cap 130A-200A
.11.848.401.1550
G4350
JSIG4350
Swirlgas Cap 280A-440A
.11.848.401.1555
G4355
JSIG4355
Swirlgas Cap 360A-440A
3
.11.848.201.1604
G3004
JSIG3004
Nozzle Cap 35A
.11.848.201.1628
G3028
JSIG3028
Nozzle Cap 60A-200A
.11.848.401.1649
G3249
JSIG3249
Nozzle Cap 280A
.11.848.401.1619
G3219
JSIG3219
Nozzle Cap 280A-440A
.11.848.401.1629
G3229
JSIG3229
Nozzle Cap 360A/400A
.11.848.401.1609
G3209
JSIG3209
Nozzle Cap 360A/440A
4
.11.848.221.407
G2007Y
JSIG2007Y
Nozzle 35A
.11.848.221.408
G2008Y
JSIG2008Y
Nozzle 60A
.11.848.221.410
G2010Y
JSIG2010Y
Nozzle 90A
.11.848.221.412
G2012Y
JSIG2012Y

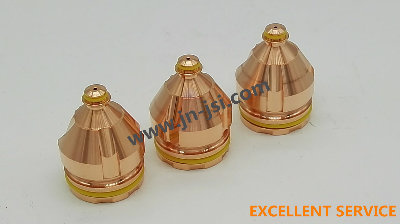

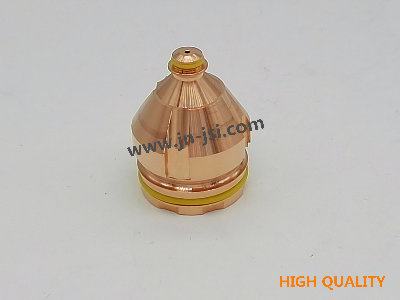

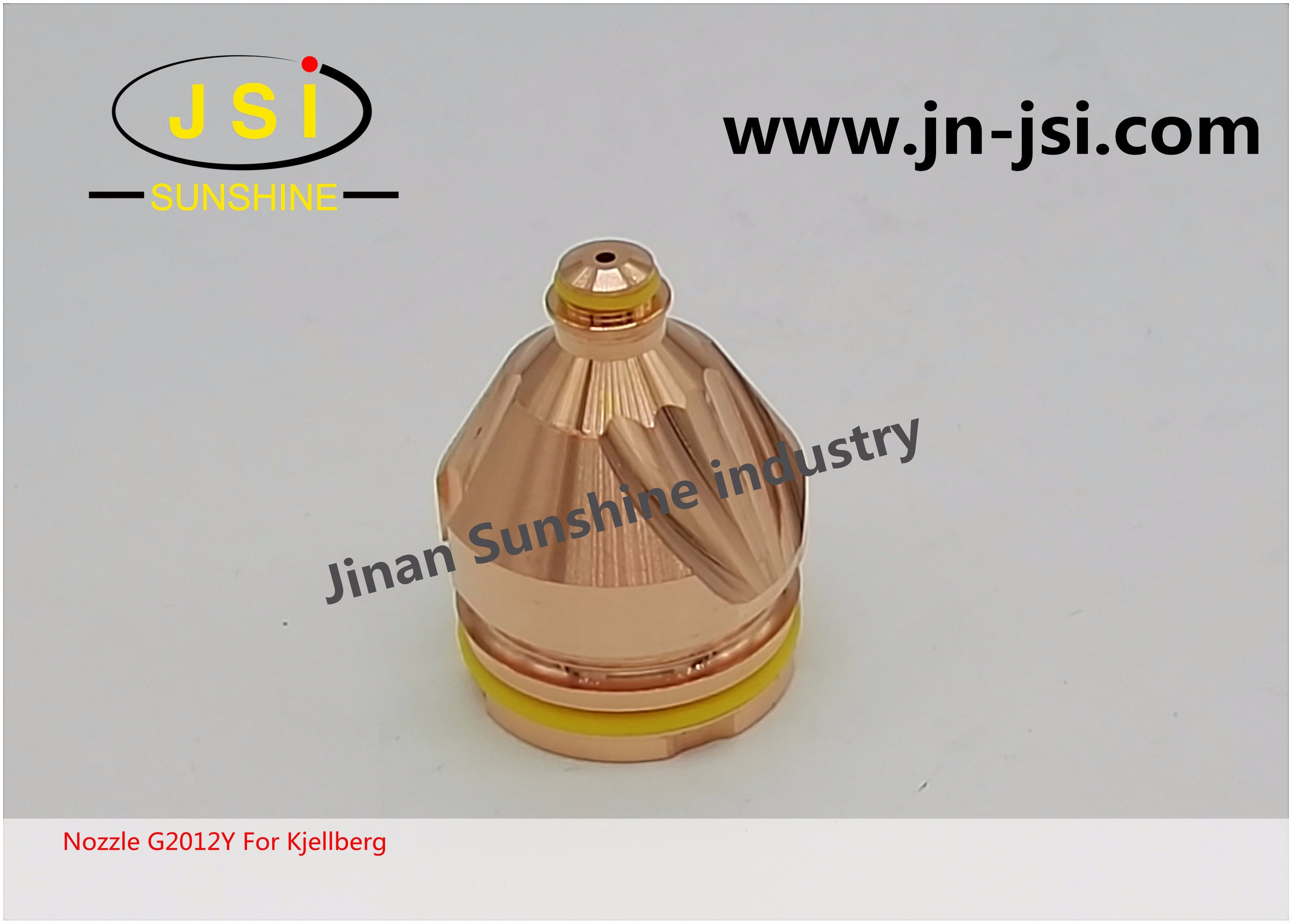

Nozzle 130A
.11.848.221.414
G2014Y
JSIG2014Y
Nozzle 160A
.11.848.221.416
G2016Y
JSIG2016Y
Nozzle 200A
.11.848.421.426
G2326Y
JSIG2326Y

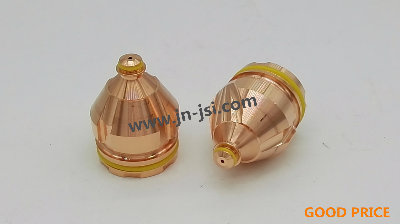

Nozzle 280A
.11.848.421.430
G2330Y
JSIG2330Y
Nozzle 360A
.11.848.421.431
G2331Y
JSIG2331Y
Nozzle 400A
.11.848.411.629
G2729
JSIG2729
Nozzle 440A
5
.11.848.221.145
G101
JSIG101*
Swirl Ring, 35A
.11.848.221.146
G102
JSIG102*
Swirl Ring, 60A-200A
.11.848.421.145
G121
JSIG121*
Swirl Ring, 280A-400A
.11.848.421.149
G125
JSIG125*
Swirl Ring, 440A
6
.11.848.221.300
G002Y
JSIG002Y
Silver Electrode, 35A-160A
.11.848.221.310
G003Y
JSIG003Y
Silver Electrode, 200A
.11.848.421.310
G032Y
JSIG032Y
Silver Electrode,280A
.11.848.421.330
G034Y
JSIG034Y
Silver Electrode, 360A-400A
.11.848.411.500
G071
JSIG071
Silver Electrode,440A
7
.11.848.201.142
G901Y
JSIG901Y
Cooling Tube 35A-200A
.11.848.401.142
G931Y
JSIG931Y
Cooling Tube 280A-400A
.11.848.411.142
G971
JSIG971
Cooling Tube 440A
PRODUCTION PROCESS

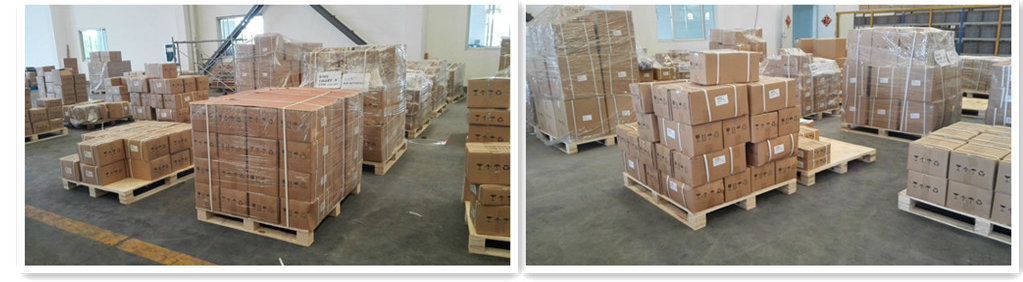

STORAGE AND DELIVERY COMPANY PROFILE 1.Who is Jinan Sunshine Industry? Jinan Sunshine industry has more than ten years' experiences in plasma cutting consumables. Our replacements can be used for HYPERTHERM®, KJELLBERG®, ESAB®, KALIBURN®, KOIKE®, THERMAL DYNAMICS®, PASONIC® etc. 2.Why choose us?

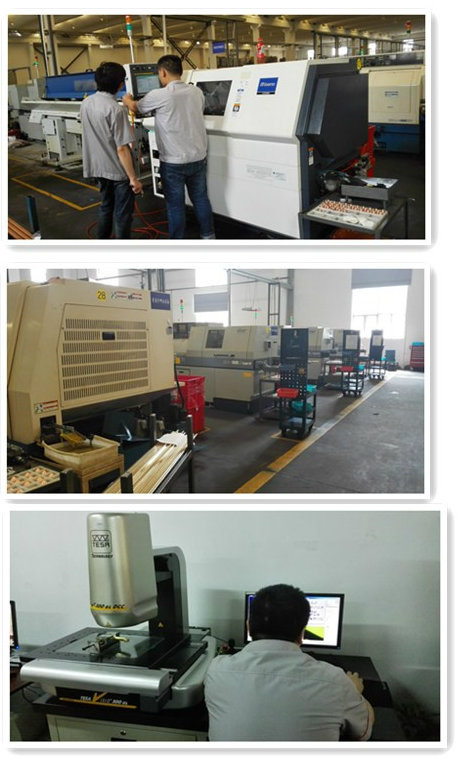

1. High Quality JSI have been keeping of improving our products quality and variouty based on our advanced equipment, R&D team, including professors and senior engineers. JSI also established the cooperation with some famous university, such as Shandong University, so that we can complementry strengths. 2.Stable Consistency For the replcements, quality consistency is very important. JSI have highly advanced CNC facilities and machining centers, as well as highly advanced inspection facilities, for example Vision Measuring Systerm, Projectors, Microscope, Surface Roughness Tester, Hardness tester, Universal Material Testing Machine etc. These can effectively ensure product accuracy and tolerance of shape and position.
3.Good Price We can guranttee better price if the same quality and higher quality if the same price.
4.Excellent Service We commitment that any enquiry from you will be appreiated and replied within 48 hours. And any urgent E-mail or fax will be get our answer within 24 hours. The extraordinary urgent situation will get our response within 4 hours.
KJELLBERG® HiFocus280i/360i/440i®are the registered trademartk of KJELLBERG®. Except the parts indicated with a *, the parts listed above are not geniune KJELLBERG® parts and no way affiliated with KJELLBERG®. Reference to KJELLBERG® machine, torches and numbers are for your convenience only. Parts indicated with a * are original parts manufactured by the above named manufacturer and are just being resold.
