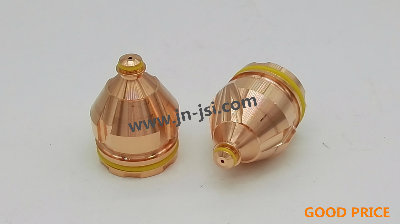

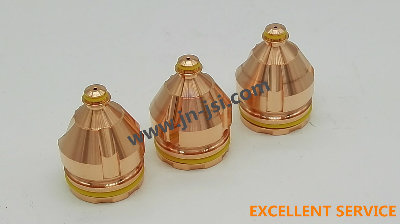

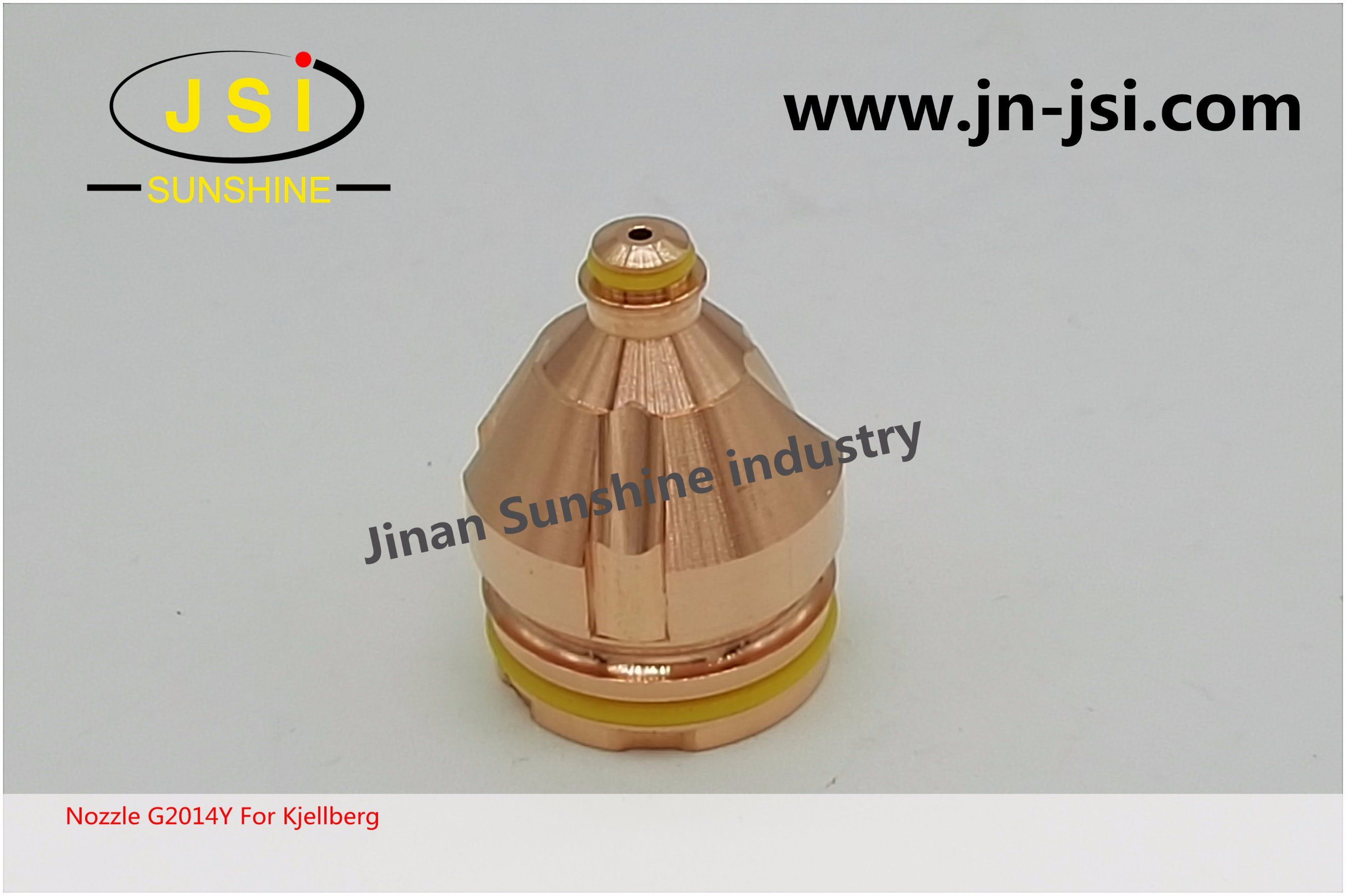

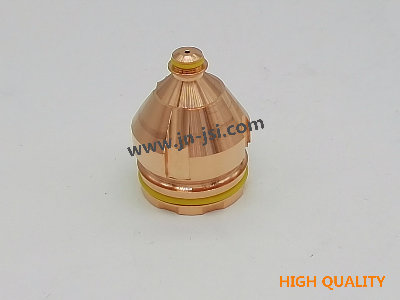

Nozzle G2014y for Kjellberg Plasma Cutting Torch
| Price: |
US $ 5-6.5/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Model Number: |
G2014y |
| Use Type: |
Machine |
Product Description
PRODUCT DESCRIPTION
The series of JSI plasma consumables are suitable for HiFocus280i/360i/440i
plasma cutting machine, which contains water tube, electrode, tip, nozzle, shield cap, swirl ring, protection cap, retaining cap. All the consumables are made by advanced equipent with high quality material, which gurrantte the high precision and long life.

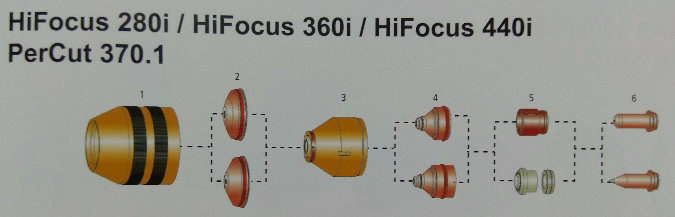

| NO | KJELLBERG® | ALTERNATE REFERENCE | SUNSHINE™ | DESCRIPTION |
| 1 | .11.848.201.081 | G501 | JSIG501 | Protection Cap 35A-200A |
| .11.848.401.081 | G521 | JSIG521 | Protection Cap 280A-440A |
| 2 | .11.848.201.1520 | G4020 | JSIG4020 | Swirlgas Cap 35A-60A |
| .11.848.201.1530 | G4030 | JSIG4030 | Swirlgas Cap 90A |
| .11.848.201.1525 | G4025 | JSIG4025 | Swirlgas Cap 90A |
| .11.848.201.1522 | G4022 | JSIG4022 | Swirlgas Cap 130A |
| .11.848.201.1530 | G4030 | JSIG4030 | Swirlgas Cap 130A-200A |
| .11.848.401.1550 | G4350 | JSIG4350 | Swirlgas Cap 280A-440A |
| .11.848.401.1555 | G4355 | JSIG4355 | Swirlgas Cap 360A-440A |
| 3 | .11.848.201.1604 | G3004 | JSIG3004 | Nozzle Cap 35A |
| .11.848.201.1628 | G3028 | JSIG3028 | Nozzle Cap 60A-200A |
| .11.848.401.1649 | G3249 | JSIG3249 | Nozzle Cap 280A |
| .11.848.401.1619 | G3219 | JSIG3219 | Nozzle Cap 280A-440A |
| .11.848.401.1629 | G3229 | JSIG3229 | Nozzle Cap 360A/400A |
| .11.848.401.1609 | G3209 | JSIG3209 | Nozzle Cap 360A/440A |
| 4 | .11.848.221.407 | G2007Y | JSIG2007Y | Nozzle 35A |
| .11.848.221.408 | G2008Y | JSIG2008Y | Nozzle 60A |
| .11.848.221.410 | G2010Y | JSIG2010Y | Nozzle 90A |
| .11.848.221.412 | G2012Y | JSIG2012Y | Nozzle 130A |
| .11.848.221.414 | G2014Y | JSIG2014Y | Nozzle 160A |
| .11.848.221.416 | G2016Y | JSIG2016Y | Nozzle 200A |
| .11.848.421.426 | G2326Y | JSIG2326Y | Nozzle 280A |
| .11.848.421.430 | G2330Y | JSIG2330Y | Nozzle 360A |
| .11.848.421.431 | G2331Y | JSIG2331Y | Nozzle 400A |
| .11.848.411.629 | G2729 | JSIG2729 | Nozzle 440A |
| 5 | .11.848.221.145 | G101 | JSIG101* | Swirl Ring, 35A |
| .11.848.221.146 | G102 | JSIG102* | Swirl Ring, 60A-200A |
| .11.848.421.145 | G121 | JSIG121* | Swirl Ring, 280A-400A |
| .11.848.421.149 | G125 | JSIG125* | Swirl Ring, 440A |
| 6 | .11.848.221.300 | G002Y | JSIG002Y | Silver Electrode, 35A-160A |
| .11.848.221.310 | G003Y | JSIG003Y | Silver Electrode, 200A |
| .11.848.421.310 | G032Y | JSIG032Y | Silver Electrode,280A |
| .11.848.421.330 | G034Y | JSIG034Y | Silver Electrode, 360A-400A |
| .11.848.411.500 | G071 | JSIG071 | Silver Electrode,440A |
| 7 | .11.848.201.142 | G901Y | JSIG901Y | Cooling Tube 35A-200A |
| .11.848.401.142 | G931Y | JSIG931Y | Cooling Tube 280A-400A |
| .11.848.411.142 | G971 | JSIG971 | Cooling Tube 440A |

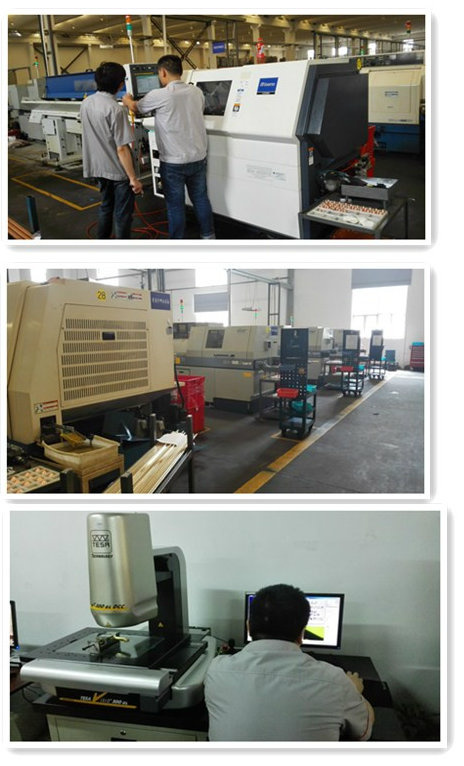

PRODUCTION PROCESS

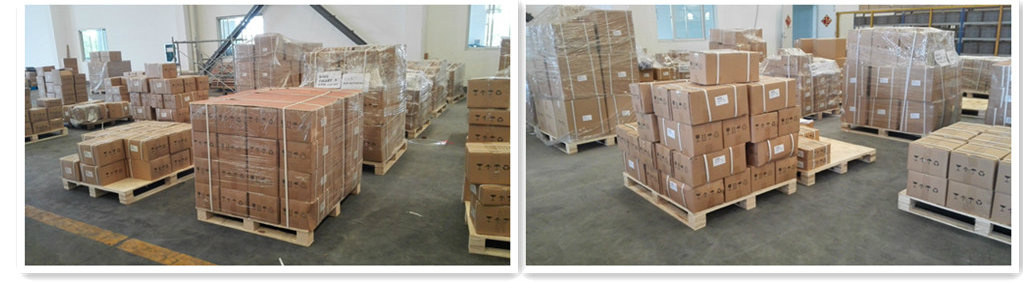

STORAGE AND DELIVERY
COMPANY PROFILE 1.Who is Jinan Sunshine Industry? Jinan Sunshine industry has more than ten years' experiences in plasma cutting consumables. Our replacements can be used for HYPERTHERM®, KJELLBERG®, ESAB®, KALIBURN®, KOIKE®, THERMAL DYNAMICS®, PASONIC® etc.
2.Why choose us?
1. High Quality
JSI have been keeping of improving our products quality and variouty based on our advanced equipment, R&D team, including professors and senior engineers. JSI also established the cooperation with some famous university, such as Shandong University, so that we can complementry strengths.
2.Stable Consistency
For the replcements, quality consistency is very important. JSI have highly advanced CNC facilities and machining centers, as well as highly advanced inspection facilities, for example Vision Measuring Systerm, Projectors, Microscope, Surface Roughness Tester, Hardness tester, Universal Material Testing Machine etc. These can effectively ensure product accuracy and tolerance of shape and position. 3.Good Price
We can guranttee better price if the same quality and higher quality if the same price. 4.Excellent Service
We commitment that any enquiry from you will be appreiated and replied within 48 hours. And any urgent E-mail or fax will be get our answer within 24 hours. The extraordinary urgent situation will get our response within 4 hours. KJELLBERG® HiFocus280i/360i/440i ® are the registered trademartk of KJELLBERG®. Except the parts indicated with a *, the parts listed above are not geniune KJELLBERG® parts and no way affiliated with KJELLBERG®. Reference to KJELLBERG® machine, torches and numbers are for your convenience only. Parts indicated with a * are original parts manufactured by the above named manufacturer and are just being resold.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
