Instruction: If use with spiral hose, the sixth digit of product code must change from 1 to 2. For example: Change from P15611-08-08Y to P15612-08-08Y

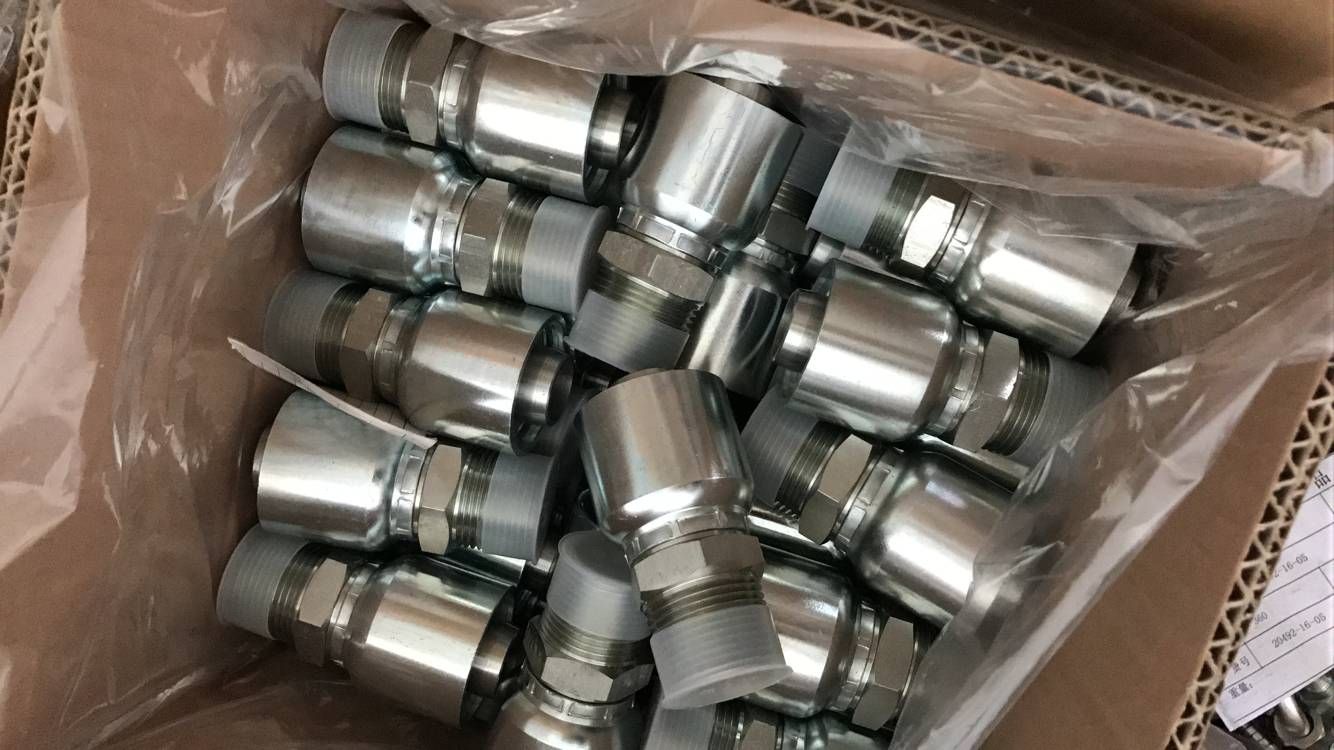

All of our hydraulic fittings are produced by advanced CNC machines.
Standard: Yonghua Technology: Hot forging Material: carbon steel 45# or stainless steel 304/316 Surface: zinc plated (trivalent chromium plating). The plating for hydraulic hose fitting is zinc with Cr +3. It not only can reduce pollution obviously and save pollution treatment cost, but also can improve the quality of fitting. It passes a 96 h salt spray test in accordance with ASTM B 117.
Application: Widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.

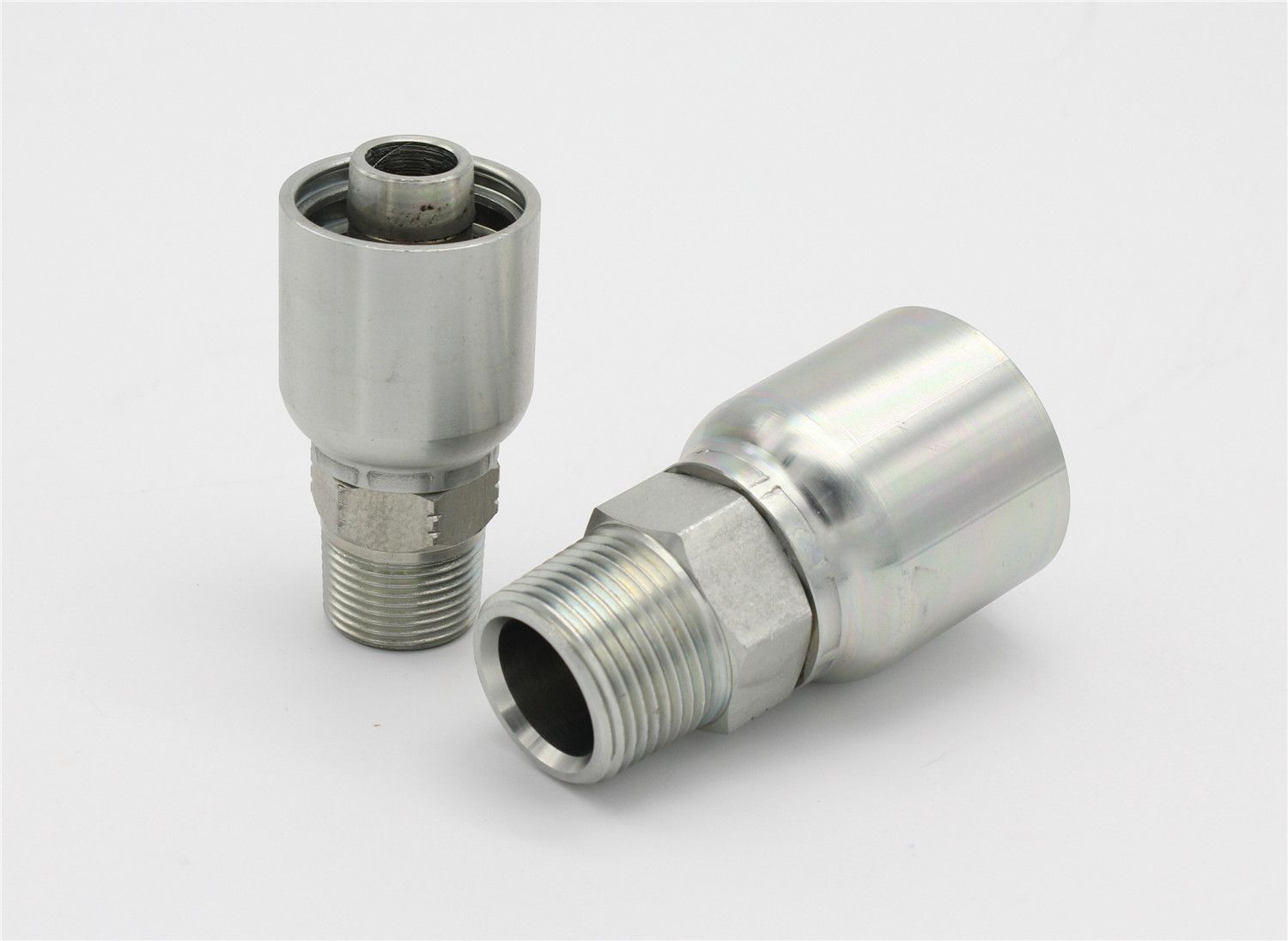

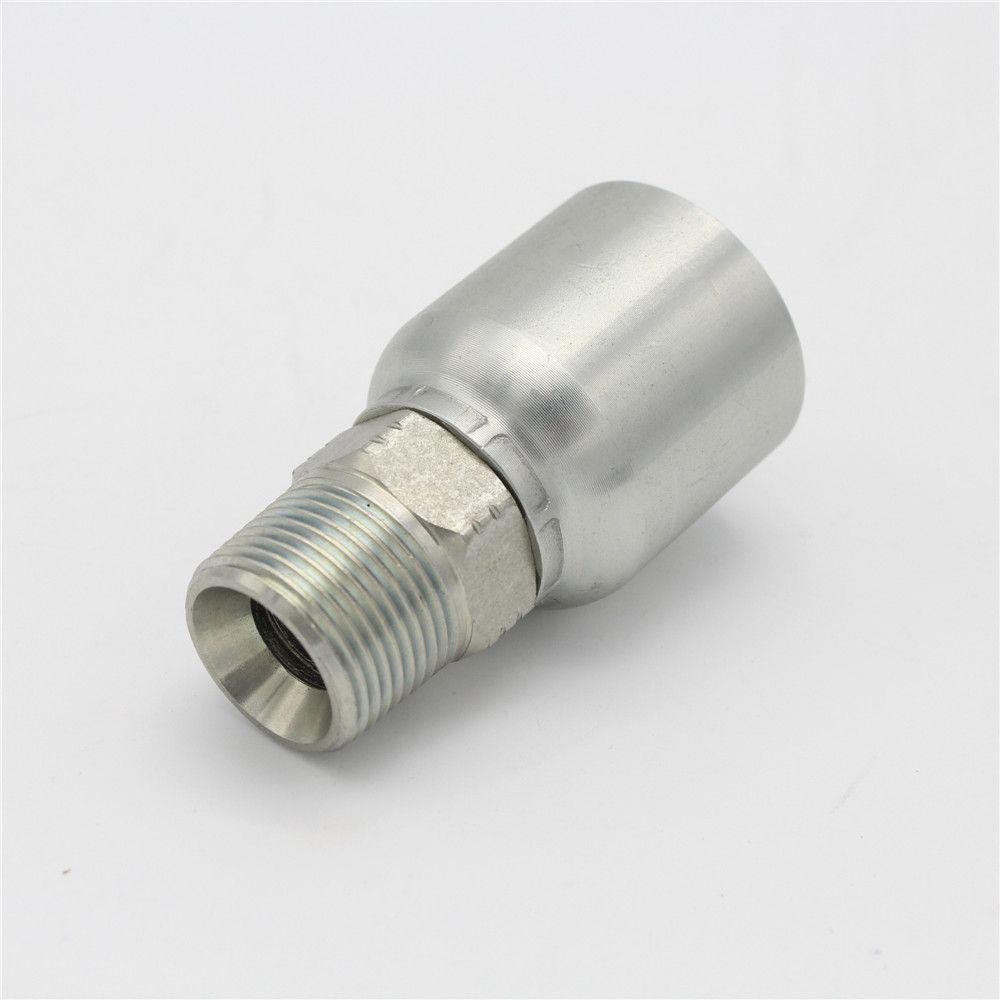

15611Y
Description
Part No.
THREAD E
HOSE BORE
DIMENSIONS
NPT MALE
BRAIDED
SPRIRAL
DN
DASH
A
C
S1
156111Y-04-04Z
/
Z1/4"X18
6
04
28
15
17
15611Y-04-05Z
/
Z1/4"X18
8
05
28
15
17
15611Y-04-06Z
15612Y-04-06Z
Z1/4"X18
10
06
27.5
15
17
15611Y-06-04Z
/
Z3/8"X18
6
04
29
16
19
15611Y-06-05Z
/
Z3/8"X18
8
05
29
16
19
15611Y-06-06Z
15612Y-06-06Z
Z3/8"X18
10
06
29
16
19
15611Y-06-08Z
15612Y-06-08Z
Z3/8"X18
12
08
30.5
16
19
15611Y-08-06Z
15612Y-08-06Z
Z1/2"X14
10
06
34
19.5
22
15611Y-08-08Z
15612Y-08-08Z
Z1/2"X14
12
08
34.5
19
22
15611Y-08-10Z
15612Y-08-10Z
Z1/2"X14
16
10
35.5
19.5
22
15611Y-12-08Z
15612Y-12-08Z
Z3/4"X14
12
08
37.5
19.5
27
15611Y-12-10Z
15612Y-12-10Z
Z3/4"X14
16
10
37.5
19.5
27
15611Y-12-12Z
15612Y-12-12Z
Z3/4"X14
20
12
38.5
19.5
27
15611Y-12-16Z
15612Y-12-16Z
Z3/4"X14
25
16
39.5
20
32
15611Y-16-10Z
15612Y-16-10Z
Z1"X11.5
25
16
45
25.5
36
15611Y-16-12Z
15612Y-16-12Z
Z1"X11.5
20
12
45
25.5
36
15611Y-16-16Z
15612Y-16-16Z
Z1"X11.5
25
16
46.5
25.5
36
15611Y-20-16Z
15612Y-20-16Z
Z1.1/4"X11.5
25
16
49.5
26.5
46
15611Y-20-20Z
15612Y-20-20Z
Z1.1/4"X11.5
32
20
50.5/52.5
26.5
46
15611Y-24-24Z
15612Y-24-24Z
Z1.1/2"X11.5
40
24
51/54
26
50
15611Y-32-32Z
15612Y-32-32Z
Z2"X11.5
50
32
55/58.4
27.5
55
Note: 1. The dimension before "/" for A issuitable for braided hose, and the dimension after "/" for A is suitable for spiral hose. 2. The plating for one piece hose fitting is zinc with Cr +3. 3. The compatible hose for braided nipple: FC686, FC687, GH663, GH793, GH781 and for spiral hose nipple: 2755, GH506.
