| Prod Model: |
15.2.2.2.3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
35mm |
| Thread Size: |
3/8" Shaft Without Thread |
| Segment Type: |
Normal Type |
| Drilling Materials: |
Marble, Granite, Sandstone, Limestone, etc. |
| Delivery Time: |
Around 30days |
| MOQ: |
50PCS |
| Company Type: |
Direct Manufacturer and Trading Company |
| Market: |
All Over The World |
| Warehouse: |
with Enough Capacity |
Product Description

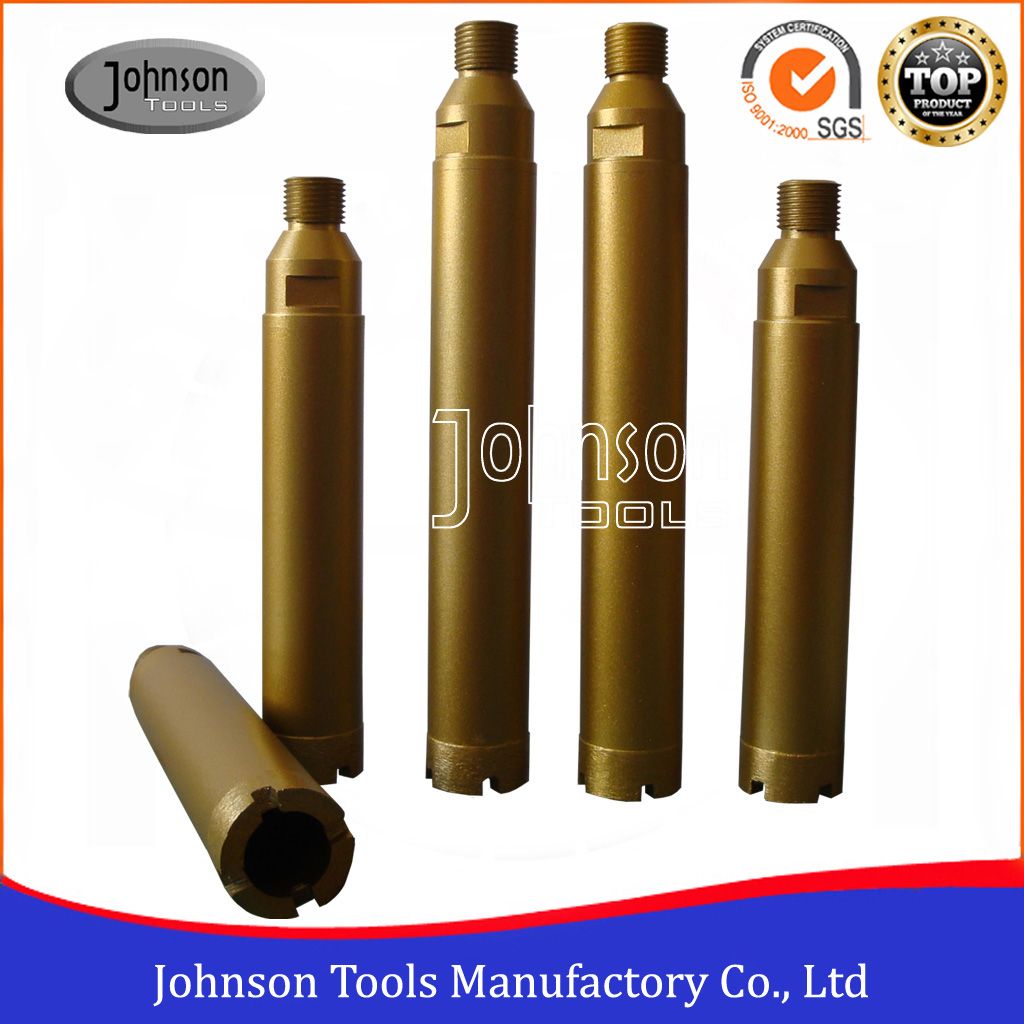

Od35mm Diamond Core Bit for Stone
Why choose us:
1.SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2.Well approved by our worldwide clients, export more than 70 countries.
3.Success formula for concrete saw blade
4.Quick Delivery time.
5.One-Day reply to your inquiry and question.
1.Description of OD35mm Diamond Core Bit for Stone
A. Core drilling thinner applications of stone, including granite, marble, sandstone, limestone, and so on.
B. Premium grade core bits that deliver fast drilling speed and extend product life.
C. Use application with core drilling machines and hand drills.
D. Production strictly according to customer requirements.
E. Size could be customized.
2. Features of OD35mm Diamond Core Bit for Stone
1). Usage: With water application
2). Processing Technology: silver welded
3). Applications: Stone drilling
4). Segment type: Flat segment
5). Delivery time: Around 20-30days
3. Specification information of OD35mm Diamond Core Bit for Stone
| Middle Diamond Core Bit for Stone |
| Item No. | Diameter | Teeth No. | Segment Dimension | Total Length | Connection Type |
| mm | Height | Thickness |
| BGB35 | 35 | Crown | 8 | 3.0 | 83 | 3/8" shaft |
| BGB(UNC)35 | 35 | Crown | 8 | 3.0 | 103 | 5/8"-11 or M14 |
Other size we can do as following
| Middle Diamond Core Bit for Stone |
| Item No. | Diameter | Teeth No. | Segment Dimension | Total Length | Connection Type |
| mm | Height | Thickness |
| BGB30 | 30 | Crown | 8 | 3.0 | 83 | 3/8" shaft |
| BGB38 | 38 | 4 | 8 | 3.0 | 83 | 3/8" shaft |
| BGB40 | 40 | 4 | 8 | 3.0 | 83 | 3/8" shaft |
| BGB45 | 45 | 5 | 8 | 3.0 | 83 | 3/8" shaft |
| BGB50 | 50 | 6 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB55 | 55 | 6 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB60 | 60 | 7 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB65 | 65 | 7 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB70 | 70 | 7 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB(UNC)30 | 30 | Crown | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)38 | 38 | 4 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)40 | 40 | 4 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)45 | 45 | 5 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)50 | 50 | 6 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)55 | 55 | 6 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)60 | 60 | 7 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)65 | 65 | 7 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)70 | 70 | 7 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
4. Packing and shipping of OD35mm Diamond Core Bit for Stone
Each Core drill bits are packed in plastic box, then according to the size, normal put in an export standard carton, gross weight per carton is limited within 15-20kg.
Shipping date: If we have steel body in our stock, normally shipment will be around 15 days. If not, usually around 20-30days.
Delivery way: By sea, by air, by courier, by land, by courier, etc.
5.Payment term:
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6.Our Technology:
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
