| Prod Model: |
15.2.2.2.6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Arts: |
Welding |
| Kind: |
Diamond Drill |
| Brand: |
Johnson Tools |
| Saw Blade External Diameter: |
51mm |
| MOQ: |
100PCS |
| Diameter: |
32mm |
| Material: |
Metal Bond with Diamond |
Product Description

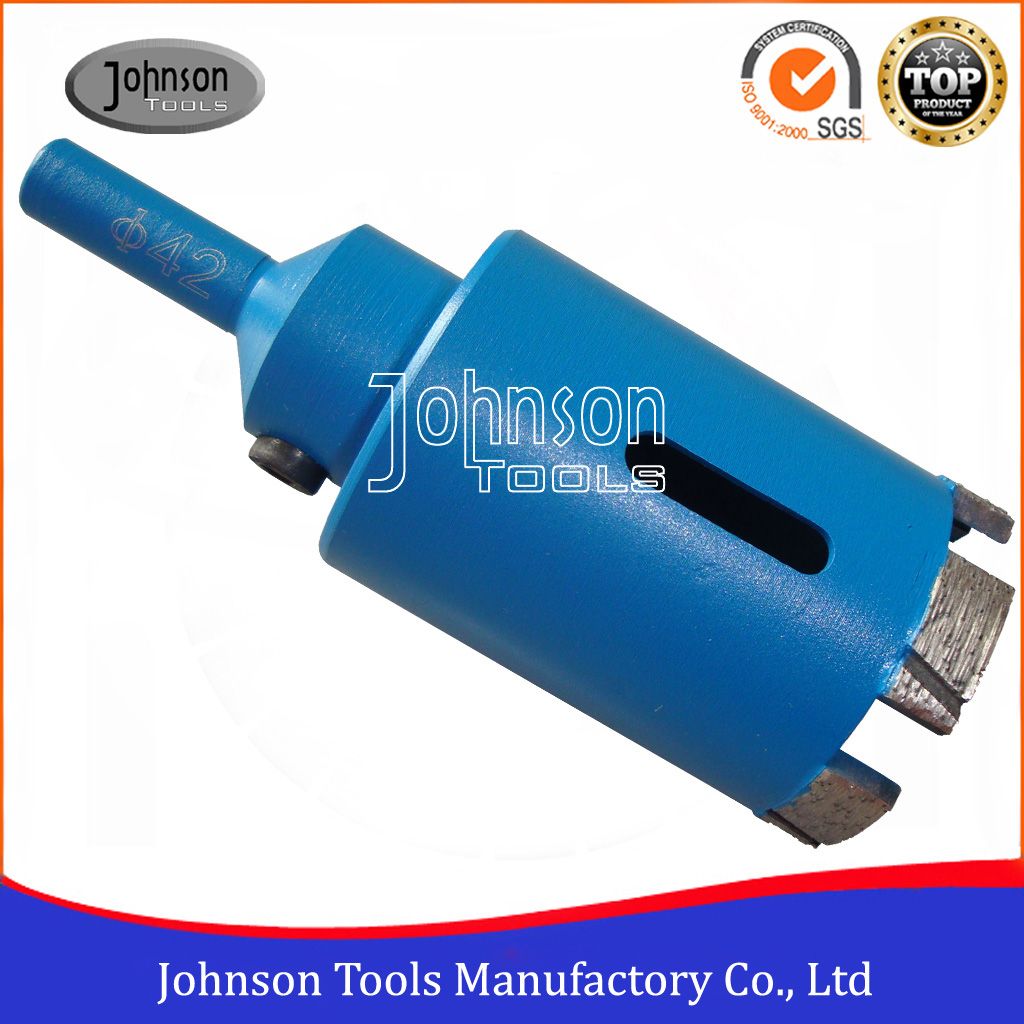

Od42mm Diamond Core Bit for Stone Drilling
Why choose us:
1.SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2.Well approved by our worldwide clients, export more than 70 countries.
3.Success formula for concrete saw blade
4.Quick Delivery time.
5.One-Day reply to your inquiry and question
1.Description of OD42mm Diamond Core Bit for Stone
1). Core drilling thinner applications of stone, including granite, marble, sandstone, limestone, and so on.
2). Premium grade core bits that deliver fast drilling speed and extend product life.
3). Use application with core drilling machines and hand drills.
4). Production strictly according to customer requirements.
5). Size could be customized.
2. Features of OD42mm Diamond Core Bit for Stone
a. Usage: With water application
b. Processing Technology: silver welded
c. Applications: Stone drilling
d. Segment type: Flat segment
e. Delivery time: Around 20-30days
3.Specification information of OD42mm Diamond Core Bit for Stone
| Middle Diamond Core Bit for Stone |
| Item No. | Diameter | Teeth No. | Segment Dimension | Total Length | Connection Type |
| mm | Height | Thickness |
| BGB42 | 42 | 4 | 8 | 3.0 | 83 | 3/8" shaft |
| BGB(UNC)42 | 42 | 4 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
Other size we can do as following
| Middle Diamond Core Bit for Stone |
| Item No. | Diameter | Teeth No. | Segment Dimension | Total Length | Connection Type |
| mm | Height | Thickness |
| BGB30 | 30 | Crown | 8 | 3.0 | 83 | 3/8" shaft |
| BGB35 | 35 | Crown | 8 | 3.0 | 83 | 3/8" shaft |
| BGB38 | 38 | 4 | 8 | 3.0 | 83 | 3/8" shaft |
| BGB40 | 40 | 4 | 8 | 3.0 | 83 | 3/8" shaft |
| BGB45 | 45 | 5 | 8 | 3.0 | 83 | 3/8" shaft |
| BGB50 | 50 | 6 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB55 | 55 | 6 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB60 | 60 | 7 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB65 | 65 | 7 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB70 | 70 | 7 | 8 | 3.0 | 83 | 1/2" shaft |
| BGB(UNC)30 | 30 | Crown | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)35 | 35 | Crown | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)38 | 38 | 4 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)40 | 40 | 4 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)45 | 45 | 5 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)50 | 50 | 6 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)55 | 55 | 6 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)60 | 60 | 7 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)65 | 65 | 7 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
| BGB(UNC)70 | 70 | 7 | 8 | 3.0 | 103 | 5/8"-11 or M14 |
4. Packing and shipping of OD42mm Diamond Core Bit for Stone
Each Core drill bits are packed in plastic box, then according to the size, normal put in an export standard carton, gross weight per carton is limited within 15-20kg.
Shipping date: If we have steel body in our stock, normally shipment will be around 15 days. If not, usually around 20-30days.
Delivery way: By sea, by air, by courier, by land, by courier, etc.
5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6.Our technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond cutting tools is our aim!
7.FAQ.
Q: How to place order to your company?
Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
Performa Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
After-Sale Service: Track the goods, learn the products' performance.
Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement
contact us,you will get more than what you see
