| Prod Model: |
6.4.2.6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
20 Inch |
| Usage: |
Stone Cutting |
| Manufacturing Arts: |
Welding |
| Kind: |
Diamond Laser Saw Blade |
| Saw Blade External Diameter: |
500mm |
| Company Type: |
Direct Manufacturer and Trading Company |
| Establishing Year: |
2000 |
| Warehouse: |
with Enough Capacity |
| Market: |
All Over The World |
Product Description

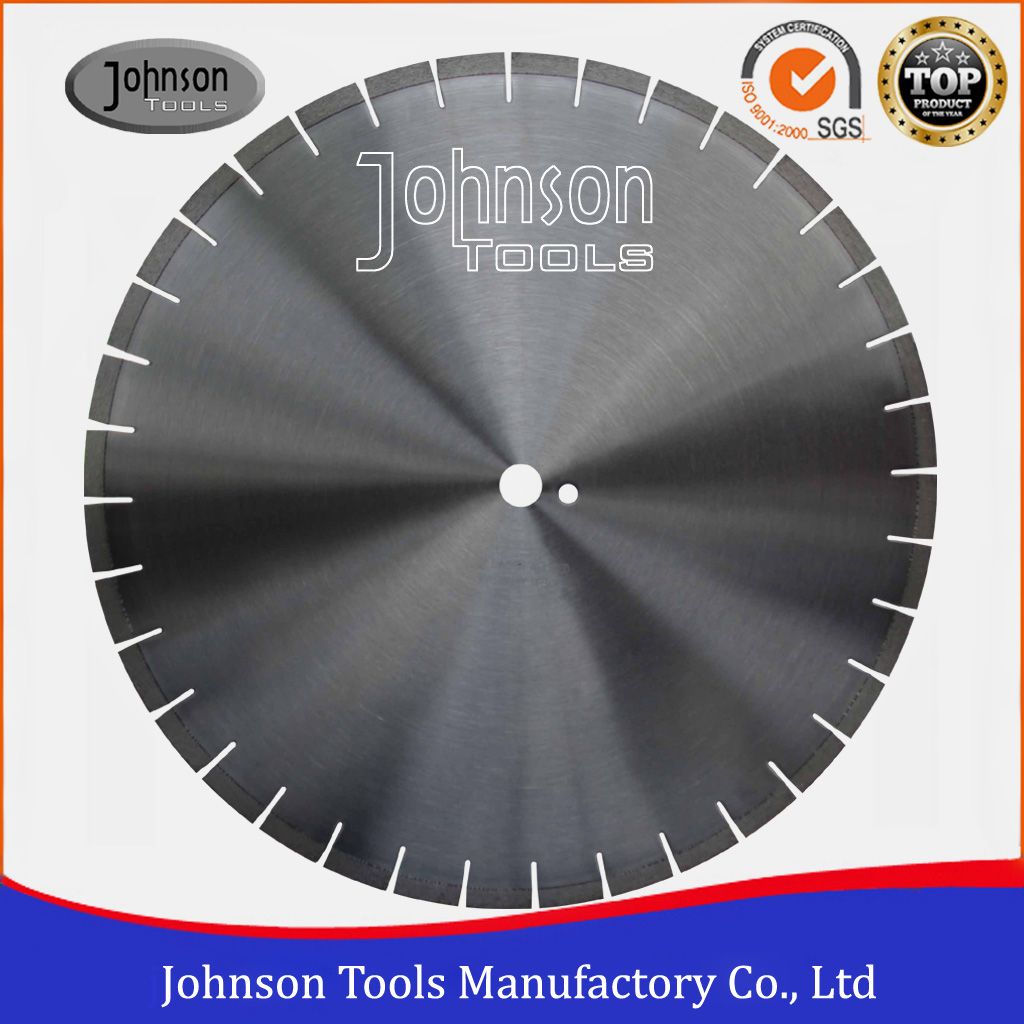

OD500mm Laser Welded Silent Saw Blade for granite cutting
Why choose us:
1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2. Well approved by our worldwide clients, export more than 70 countries.
3. Success formula for concrete saw blade
4. Quick Delivery time
5. One-Day reply to your inquiry and question.
1. Description of the OD500mm Laser Welded Silent Saw Blade for granite cuttingWith its large application range and broad cutting spectrum these diamond cutting blades offer the user great durability, performance and lifetime. These diamond disc can be used on angle grinders, disc cutters, bench saws. These cutting edge diamond blades allow unrivalled performance in most common stone materials; these high quality diamond blades provide the user with the great cutting versatility and some of the fastest diamond cutting characteristics available from any comparable diamond blade on the market.We can offer our clients good after-sale service and professional technical assistance.

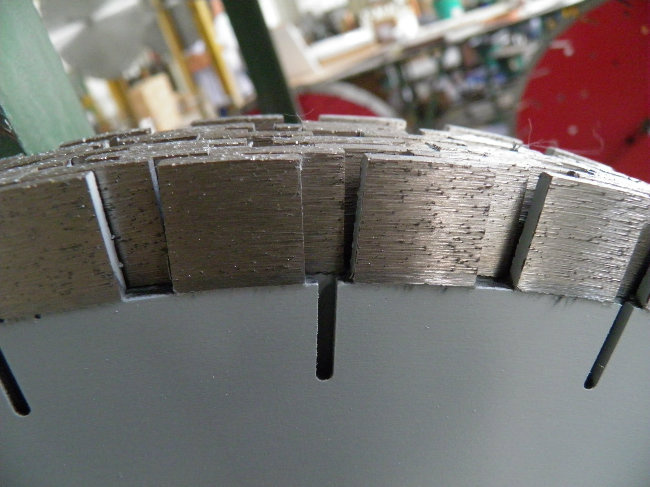

2. Features of the OD500mm Laser welded saw blade for cutting Granite1. silent core, no any noise when working For cutting granite2. Competitive price and opportune delivery.
3. Suit to a variety of stone, such as granite, sandstone, limestone, basalt.
4. 100% laser welding brazed technology.
5. Accurate cutting and no chipping.
6. Different specifications and grades meet different requirement.
7. Dry or wet cutting.3. Specification Information of the OD500mm Laser Welded Silent Saw Blade for granite cutting1. Diameter: 20"/500mm2. Segment length: 40mm3. Segment thickness: 4mm4. Segment height: 10/12/15mm
5. Inner hole: 22.23mm, 25.4mm, 50mm, 60mm or as your request.
6. Type: silent steel disc | Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(mm) |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
Other size of the Diamond laser silent saw blade for granite| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(mm) |
| 4" | 105 | 32 | 2.2 | 7/10/12/15 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/10/12/15 | 9 |
| 6" | 150 | 34 | 2.2 | 7/10/12/15 | 11 |
| 7" | 180 | 34 | 2.4 | 7/10/12/15 | 14 |
| 8" | 200 | 40 | 2.4 | 7/10/12/15 | 13 |
| 9" | 230 | 37 | 2.6 | 7/10/12/15 | 16 |
| 10" | 250 | 40 | 2.6 | 7/10/12/15 | 18 |
| 12" | 300 | 40 | 3.0 | 7/10/12/15 | 21 |
| 14" | 350 | 40 | 3.2 | 7/10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
| 32" | 800 | 24 | 6.0 | 10/12/15 | 46 |
4. Packing and shipping of the OD500mm Laser Welded Silent Saw Blade for granite cutting
Packing: Each saw blade is packed in white box or colored box packing, then according to the size, 5pcs put in an export standard carton, carton size: 53 x 53 x10cm.
Shipping: Usually by courier, air and sea, we could recommend the suitable way for actually quantity and gross weight.

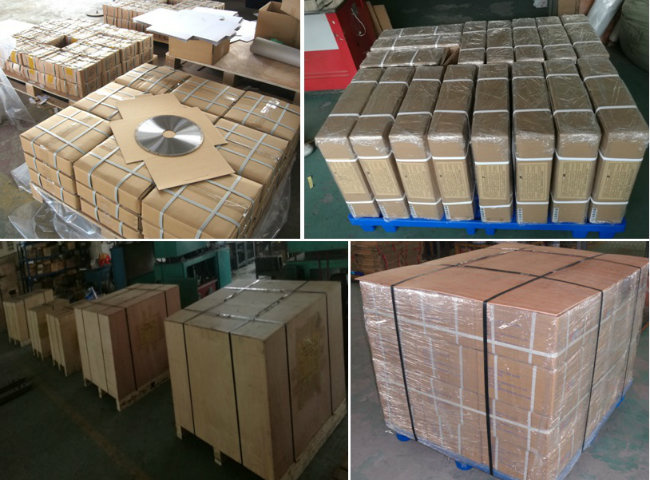

Packing picture:
5.Payment terms
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.

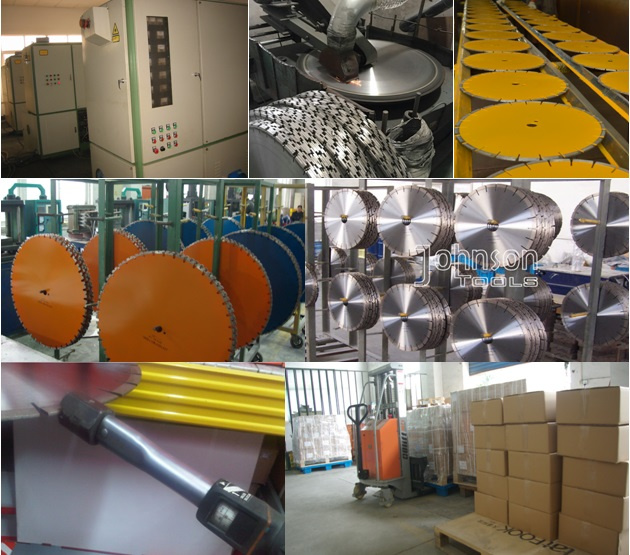

6. Our Technology
We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.Providing our customers with satisfactory diamond cutting tools is our aim!
7. Our Replated products
8. sales Teams
9. Certificate
10. Company Information
Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries.
We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.
Johnson Tools people sincerely looking forward to serving you in the near future!
Let's work together to make the business better and better.
