Od60mm Diamond Drilling Bit for Stone

Name: Od60mm Diamond Drilling Bit for Stone
Brand: tool-buy.com
SKU: 708436905
Availability: InStock
Rating: 4.6 (104 reviews)

Price:	US $ 15-19.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Johnson Tools Manufactory Co., Ltd.

Showroom Product Company Profile

Prod Model:	15.2.2.2.9
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Drilling
Manufacturing Arts:	Welding
Kind:	Diamond Drill
MOQ:	100PCS
Diameter:	Od60mm
Delivery Time:	Around 25days
Material:	Metal Bond

Product Description

Od60mm Diamond Drilling Bit for Stone

Why choose us:
1. SGS, MPA certificate, Established in 2000 year, Rich producing experience.
2. Well approved by our worldwide clients, export more than 70 countries.
3. Success formula for concrete saw blade
4. Quick Delivery time.
5. One-Day reply to your inquiry and question.

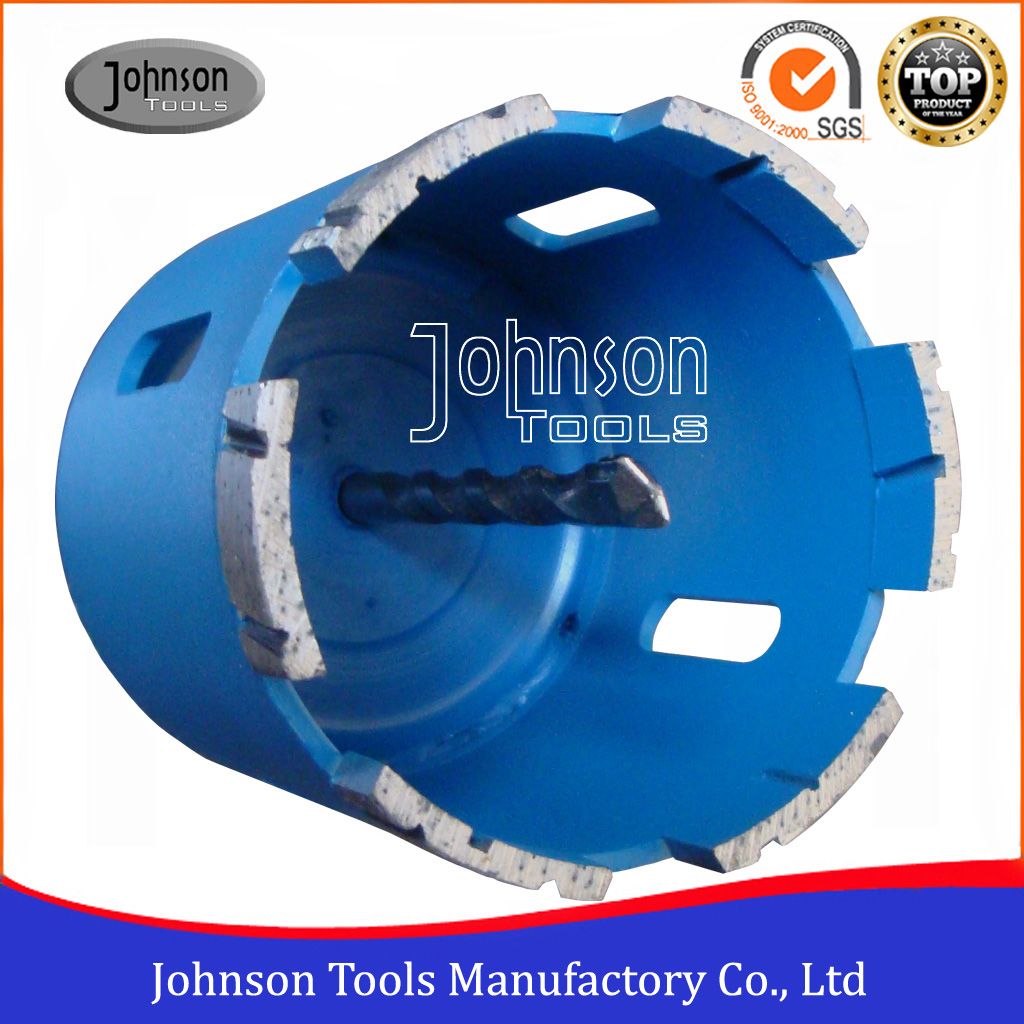

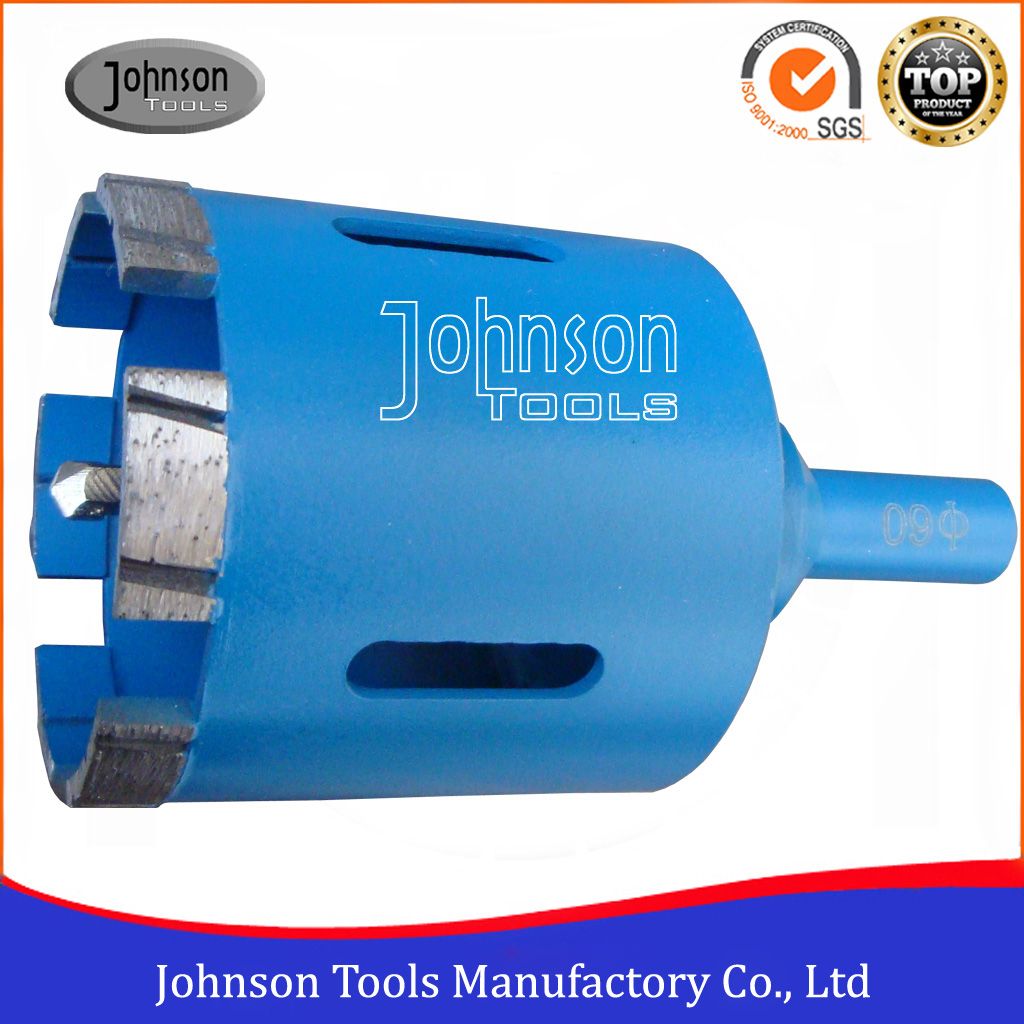

1.Description of OD60mm Diamond Core Bit for Stone

Excellent diamond segment which especially design for stone drilling, such as granite, marble, sandstone, limestone, Engineered stone, etc. Made for countertop, kitchen or any other stone fabrication applications.

2.Features of diamond stone core drills OD60mm
60mm outside diameter.
M14 thread or 5/8"-11 thread
Wet Drilling
Segment height is 8mm height.
Segment type: Normal segments or Turbo segments.
Other special sizes could be made upon request.
3.Specification information of OD60mm diamond drill bits for stone

Item No.	Diameter	Segment Dimension		Total Length	Teeth No.
Item No.	mm	Height	Thickness	Total Length	Teeth No.
BGB(UNC)60	60	8	3	103	7

Other specifications we can offer

Diamond core bits for stone, with thread 5/8"-11 or M14
Item No.	Diameter	Segment Dimension		Total Length	Teeth No.
Item No.	mm	Height	Thickness	Total Length	Teeth No.
BGB(UNC)6.5	6.5	8	-	93	C
BGB(UNC)8	8	8	-	93	C
BGB(UNC)10	10	8	2	93	Crown
BGB(UNC)12	12	8	2.5	93	Crown
BGB(UNC)14	14	8	2.5	93	Crown
BGB(UNC)16	16	8	2.5	93	Crown
BGB(UNC)18	18	8	2.5	93	Crown
BGB(UNC)20	20	8	2.5	93	Crown
BGB(UNC)22	22	8	2.5	93	Crown
BGB(UNC)25	25	8	2.5	93	Crown
BGB(UNC)28	28	8	2.5	93	Crown
BGB(UNC)30	30	8	3	93	Crown
BGB(UNC)35	35	8	3	93	Crown
BGB(UNC)40	40	8	3	103	4
BGB(UNC)45	45	8	3	103	5
BGB(UNC)51	51	8	3	103	6
BGB(UNC)55	55	8	3	103	6
BGB(UNC)60	60	8	3	103	7
BGB(UNC)65	65	8	3	103	7
BGB(UNC)70	70	8	3	103	8
BGB(UNC)76	76	8	3	103	8
BGB(UNC)85	85	8	3	103	9
BGB(UNC)100	100	8	3	103	10
BGB(UNC)105	105	8	3	103	10
BGB(UNC)110	110	8	3	103	11
BGB(UNC)115	115	8	3	103	11
BGB(UNC)120	120	8	3	103	12
BGB(UNC)127	127	8	3	103	12
BGB(UNC)150	150	8	3	103	14

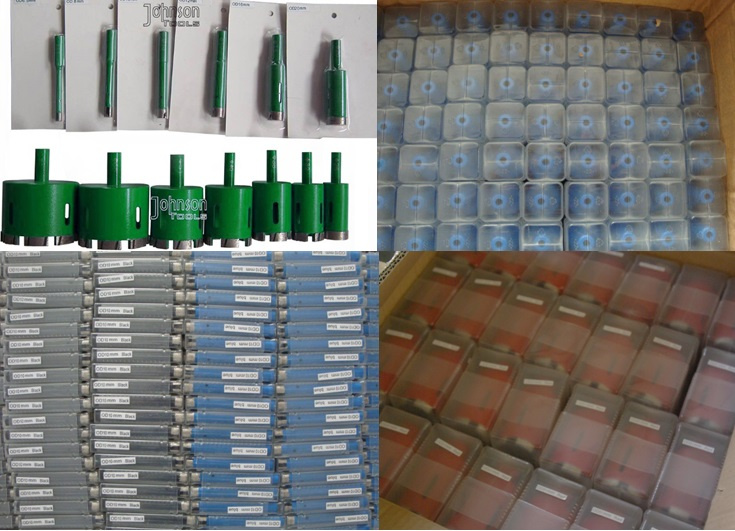

4.Packing and shipping of 60mm core bits for stone
According to the size, normally put in an export standard carton, gross weight per carton is limited within 20-25kg.
Shipping date: If there is steel discs in our stock, normally shipment within 10-15days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.

5. Payment term
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.

6.Our Related Products

7.Our technology

We are processing advanced production equipment, modern checking system, strict management and a strong technical force with the combination of many skilled workers and technical engineers.

Providing our customers with satisfactory diamond cutting tools is our aim!

8.Certification

9.Sales team

10.Company Information
Established in 2000 year, Johnson Tools Manufactory Co.,Ltd have been acting as one of leading manufacturers in China's stone and construction industries.
We enjoy good reputation among customers with trustworthy product quality and creditable service. Provide good quality diamond tools on sawing, grinding, polishing and drilling industry, such as laser welded wall saw blade, floor saw blade, concrete saw blade, asphalt saw blade, stone saw blade, electroplated saw blade, tuck pointing saw blade, diamond segments, grinding wheels, polishing pad, core bits, TCT saw blade, also stone cutting machine, etc.
Johnson Tools people sincerely looking forward to serving you in the near future!
Let's work together to make the business better and better.

Why clients choose Johnson?

1) Quality & Service:

We, Johnson Tools Manufactory Co., Ltd have very strict quality control system. There is one QC team in our factory on examination of every product before dispatching. We try our best to achieve zero defects.

2) Convenience of One-Stop Sourcing:

On stone and construction industry, from cutting, grinding, drilling, polishing, profiling field, till stone and its cutting machine, we can help you select the best tools, finish your project perfectly.

3) Flexible payment term:

T/T, Letter of Credit, PayPal, West Union, Credit Card, etc.

4) Delivery time:

Around 5-30days based on quantity of clients' order.

Repeated orders, we help our clients prepare one order's raw materials to shorten the producing time.

5) Good evaluation of our clients' from our deferent's countries.

6) Sales Teams:

We have a friendly, enthusiastic, energetic sales team, ready to service with you all the time.

Professional Manufacturer on Diamond Tools since Year 2000.

Above 95% Diamond Tools products export to Six Continent, over 70 Countries.

Our diamond tools differ diamond Cutting tools, diamond Grinding tools, diamond Polishing tools, diamond Drilling tools, and other accessories & stone cutting machine. Wildly used on Stone and Construction industry.

*****Customer Evaluation*****

To do the same bond as we use is very important. We did many tests at your blades And the performance is very good. -- Remco

The cutting of the blade on concrete road was very good. Cutting life is estimated at 800 meters. Note: Client use our 14" laser saw blade. -- Jabar

Segments from you is very good, durable and sharp. Note: Client use our 102mm-300mm diamond segments for core bits for reinforced concrete. -- Zainul

First of all I would like to thank you for the sending the samples of the Diamond Saw Cutting Blades. We have tested it and are very much impressed. -- Ancila

About your 200mm&250mm tuck point saw blade, we made about 11000 meters and it' s a very good indice! -- Julia

And its good, We need more: ) Saw blade 20X 600mm 20X 800mm 3X 1000mm 10X1200mm.

-- Kovacevic

Welcome to join us to be a Johnson Tools partner!

Let's work together to make the business better and better.
