One Way Clutch Bearings for Gearbox and Industrial Machine Fe400z
| Price: |
US $ 7-20/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
FE 400 Z |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Fe 400 Z |
| Seals Type: |
Non-Sealed |
| Precision: |
P6 |
| Inside Diameter: |
2-80mm |
| Outside Diameter: |
10-88mm |
| Torque (N.M): |
3-788 |
| Idling Speed Max (Rpm): |
1300-10000 |
| OEM: |
Accept |
| Stock: |
Rich |
| Delivery: |
in Stocks |
Product Description

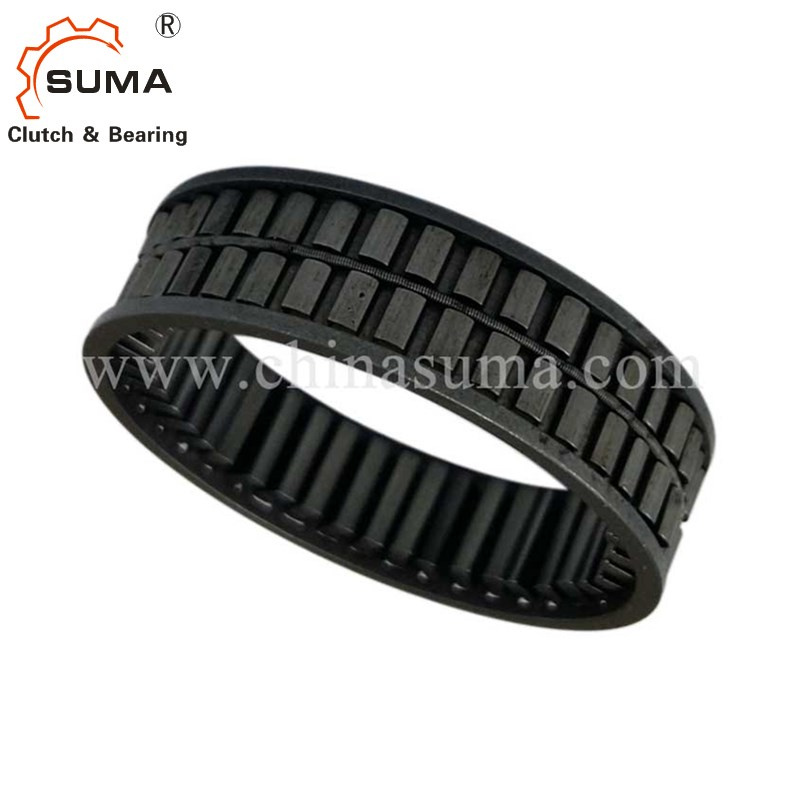

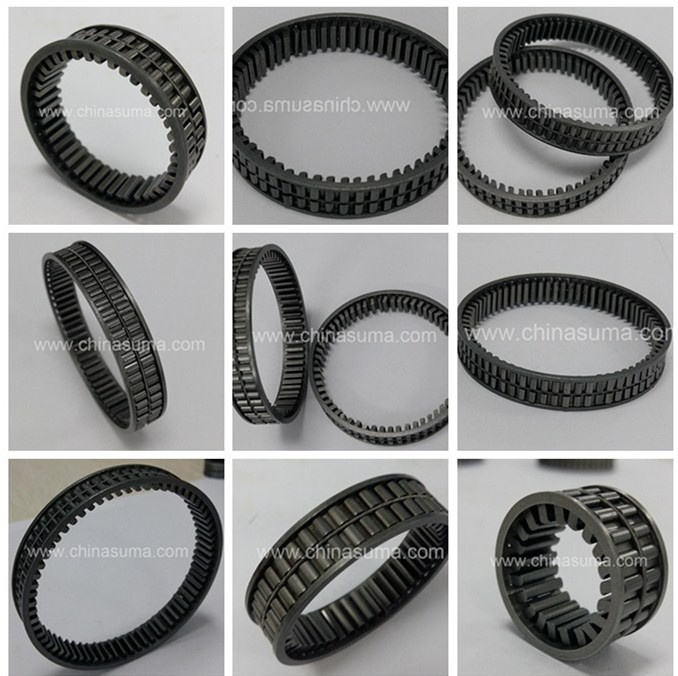

One Way Clutch Bearings for Gearbox and Industrial Machine FE400Z
Description of One Way Clutch Bearings for Gearbox and Industrial Machine FE400ZFE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.
USED AS:
1.Indexing elements to change from oscillating to intermittent rotary motion.
2.Backstops to prevent self reversing due to load condition when the machine is not activated.
3.Overrunning clutches to maintain driven unit activated even during slowdown, or in the case of two speed operation (by independent motors) to switch to the higher speed by passing the slower.
LUBRICATION
Lubrication is especially important to obtain maximum life of freewheel clutches.
Good lubrication decreases drag. Please refer to our Lubrication Selection Table for proper
selection.
Clutches (except the sealed Clutches of series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS , and FKN...-2RS) are shipped rust protected not lubricated.

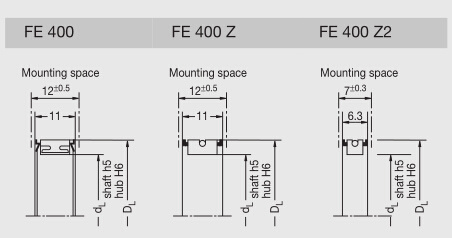

Parameter of One Way Clutch Bearings for Gearbox and Industrial Machine FE400Z
| Designation | d | D | W | Tnom | nmax | Weight | Item no. |
| [mm] | [mm] | [mm] | [Nm] | [rpm] | [kg] |
| FE 412 Z | 4 | 12 | 12 | 4 | 27,000 | 0.003 | 300393 |
| FE 416 Z | 8 | 16 | 12 | 16 | 19,200 | 0.006 | 300400 |
| FE 420 Z | 12 | 20 | 12 | 35 | 12,500 | 0.007 | 306041 |
| FE 422 Z | 14 | 22 | 12 | 53 | 10,100 | 0.008 | 300405 |
| FE 423 Z | 15 | 23 | 12 | 62 | 9,200 | 0.009 | 300411 |
| FE 425 Z | 17 | 25 | 12 | 72 | 8,100 | 0.011 | 300415 |
| FE 427 Z | 19 | 27 | 12 | 83 | 7,400 | 0.013 | 300422 |
| FE 428 Z | 20 | 28 | 12 | 93 | 7,500 | 0.013 | 300430 |
| FE 430 Z | 22 | 30 | 12 | 107 | 6,300 | 0.014 | 300435 |
| FE 432 Z | 24 | 32 | 12 | 117 | 5,900 | 0.016 | 300439 |
| FE 433 Z | 25 | 33 | 12 | 128 | 6,000 | 0.016 | 300445 |
| FE 435 Z | 27 | 35 | 12 | 143 | 5,100 | 0.017 | 300448 |
| FE 437 Z | 29 | 37 | 12 | 154 | 4,800 | 0.018 | 300455 |
| FE 438 Z | 30 | 38 | 12 | 166 | 4,900 | 0.019 | 300460 |
| FE 442 Z | 34 | 42 | 12 | 198 | 4,400 | 0.018 | 300463 |
| FE 443 Z | 35 | 43 | 12 | 207 | 4,300 | 0.022 | 300469 |
| FE 448 Z | 40 | 48 | 12 | 248 | 4,200 | 0.024 | 300478 |
| FE 453 Z | 45 | 53 | 12 | 293 | 3,400 | 0.022 | 300482 |
| FE 455 Z | 47 | 55 | 12 | 313 | 3,300 | 0.026 | 300487 |
| FE 458 Z | 50 | 58 | 12 | 344 | 3,100 | 0.029 | 300489 |
| FE 459 Z | 51 | 59 | 12 | 353 | 3,000 | 0.03 | 300494 |
| FE 463 Z | 55 | 63 | 12 | 393 | 2,900 | 0.032 | 300497 |
| FE 468 Z | 60 | 68 | 12 | 444 | 2,700 | 0.034 | 300501 |
| FE 470 Z | 62 | 70 | 12 | 465 | 2,600 | 0.035 | 300505 |
| FE 473 Z | 65 | 73 | 12 | 495 | 2,500 | 0.037 | 300508 |
| FE 478 Z | 70 | 78 | 12 | 548 | 2,600 | 0.039 | 300511 |
| FE488Z | 80 | 88 | 12 | 657 | 2,100 | 0.045 | 300514 |
| FE 508 Z | 100 | 108 | 12 | 889 | 1,700 | 0.055 | 300519 |
| FE 528 Z | 120 | 128 | 12 | 1,127 | 1,300 | 0.066 | 300522 |
| FE 648 Z | 240 | 248 | 12 | 2,673 | 800 | 0.131 | 300524 |
MARKS
A large quantity of freewheel-clutches with varying design features and dimensions are available , depending on requirements such as: Torque, indexing frequency, idling speed and environment
The supporting equipment around the clutch has to be built accurately and of high quality for the
clutch to operate properly .This is why we offer support units or complete assemblies of freewheel clutches.Packaging
Changzhou Suma precision machinery Co, Ltd. Is a manufacturer specialized in Producing Various one way bearing, one way clutch, backstop clutch, overrunning clutch, indexing freewheel, spherical plain bearing and cylindrical roller bearing with high technology.
The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc. In addition, special clutch bearings are also provided in accordance upon customers' Requirement for various applications.
With more than 10 years of experience, er focus on developing and manufacturing a variety of one way bearings to meet the needs of our customers' reauirements. With an emphasis on performance and reliability, we provide products that support industry machines, such as forklift, torque covertor, -excavator, printer, textile machines, fans, small-size loader and so on.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
All of our products are engineered by superior production equipment, manufactured with advanced instrument to ensure high precision and reliable Performance.
We welcome you to visit our website, and do not hesitate to contact us.
