| Prod Model: |
GS series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity(Tons): |
25, 45 |
| Type: |
High-Speed Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description

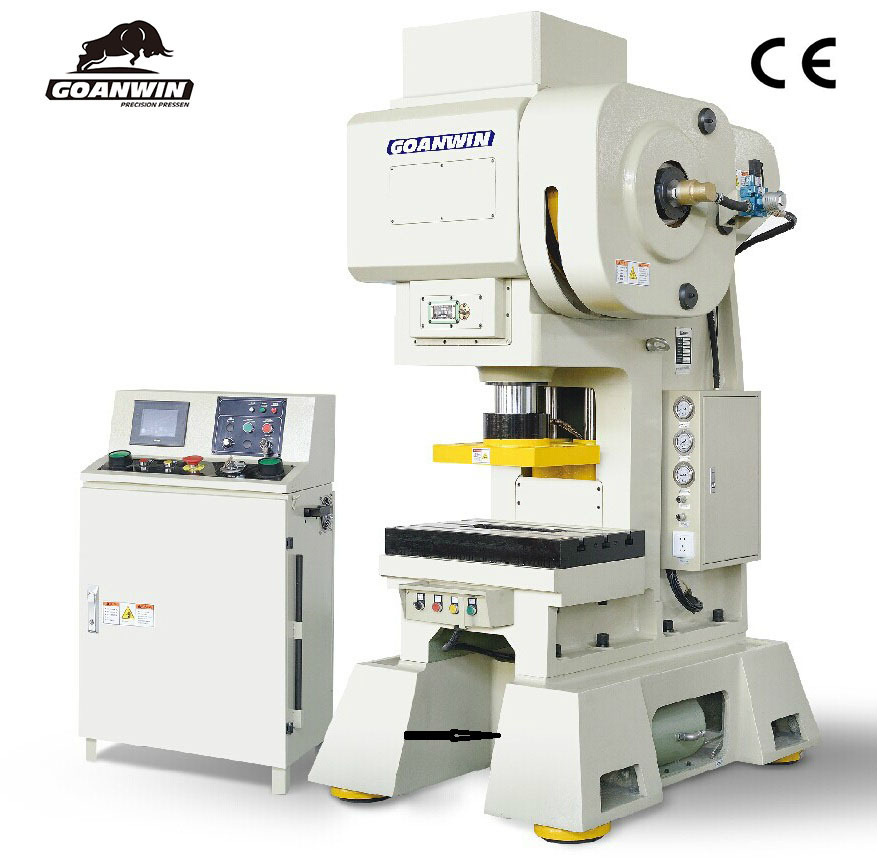

Open Front High Speed Sheet Metal Punching Power Press Features:·It is suitable for mass production of precision electronic and hardware.
·Use special integral casting iron alloy, having high rigidity and vibration-resisting performance.
·The sliding board designed with long-way type and equipped with balancing device of sliding board, can guarantee running in high accuracy.
·All wear-resisting elements are served by electronictype timing automatic lubricating system, the press machine will stop automatically when the lubricate oil is lack.
·Advanced,simple control system, can guarantee the sliding board running and stop in.
·Can equipped any automatic equipments meet automatic production requirements, promote productive
Standard accessories:Electric lubrication device
Die height indicator
Balance device
Crank angle indicator
Electric stroke counter
Air source receptacle
Against over-run safety device
Inverter
Touch pad
Preset counter
Misfeed detection consent
Power supply
Electrical cam
Maintenance tool box
Operation Manual
Optional accessories:Die room light
Anti vibration press mount
Photo-electronic safety device
Feeder
Uncoiler
Leveler
Guaranty & Service1. Guaranty period
One year
2. Guaranty covers
Main parts of the machine, wearing parts not included
3. Parts delivery
Within 3working days by TNT
4. Technical support
Technical support via email or video, technicians available for overseas service with reasonable additional costs
5. Installation & commissioning
Seller can dispatch technicians to do installation & commissioning, technician costs will be on buyer's side
Contact :
Ms.Mindy
NingBo Goanwin Machinery Manufacturing Co., Ltd. is a high-tech enterprise in forging industry located in Ningbo, China. We are professional in design, manufacture, sale, service, trade for mechanical press machines. Goanwin has a core of research and development technology and focus on advanced forging design. Furthermore, Goanwin has a engineering research center, gathered the first-class professional technicians from Germany, Taiwan and Main land China. In Goanwin, We following ISO9001 and 14001 team spirit strictly, create better internal and external environment, to offer best quality and services to our customers.
With many years of efforts and development, Gonawin earned Certificate of High-tech Enterprise, CE Certification, ISO9001 Certification and other more than 86 Certificates of Utility Model Patent. We insist use the best quality of components and parts, always adhere precise process, to ensure the products with high quality. Before delivery, each machine has more than 100 times quality test, including at least 72 hours actual operation in the assembly shop. All priority parts have corresponding encoding and traceability records, all machines are have 24 hours strict test. Each machine must need loading test, voltage test, temperature rise test, precision test before delivery.
Goanwin products have been exported to more than 10 countries, such as America, Europe, Africa and Southeast Asia etc. We also have more than 20 marketing networks in China, each of dealer has complete personnel services. Goanwin offered comprehensive services to our customers, including plan, design and performance, commissioning and maintenance and operator training.
With an accelerated global economic integration, now Goanwin focus on the entire world to spare no effort or funds to introduce technologies, talents to improve products and adjust industrial structure to achieve an international top class level. We will continue to put forth effect to achieve technical advancements to make technical innovations, Quality and Service Improvements.
Goanwin, Let us to create double win.
