Opgw Strain Clamp 70kn Pole Line Hardware
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
ONZ |
| Structure: |
Preformed Dead End |
| Standard: |
Standard |
| Condition: |
New |
Product Description

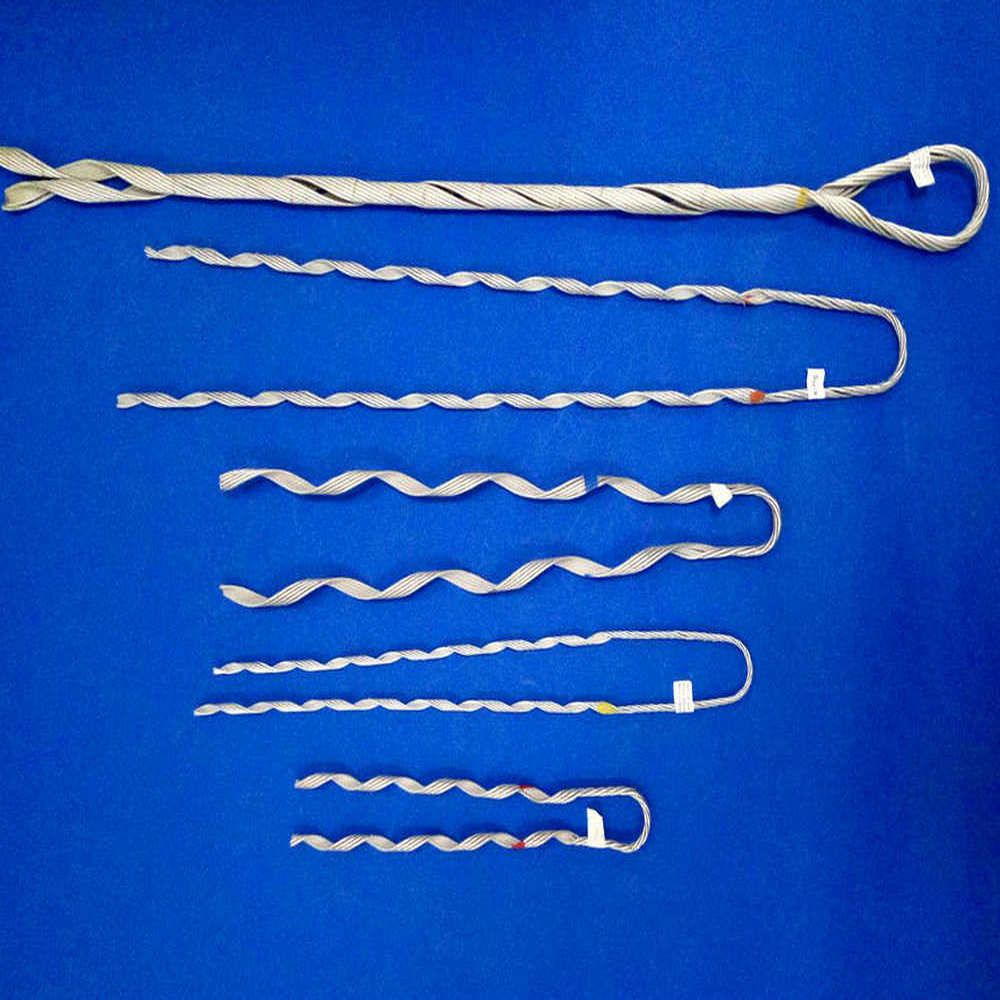

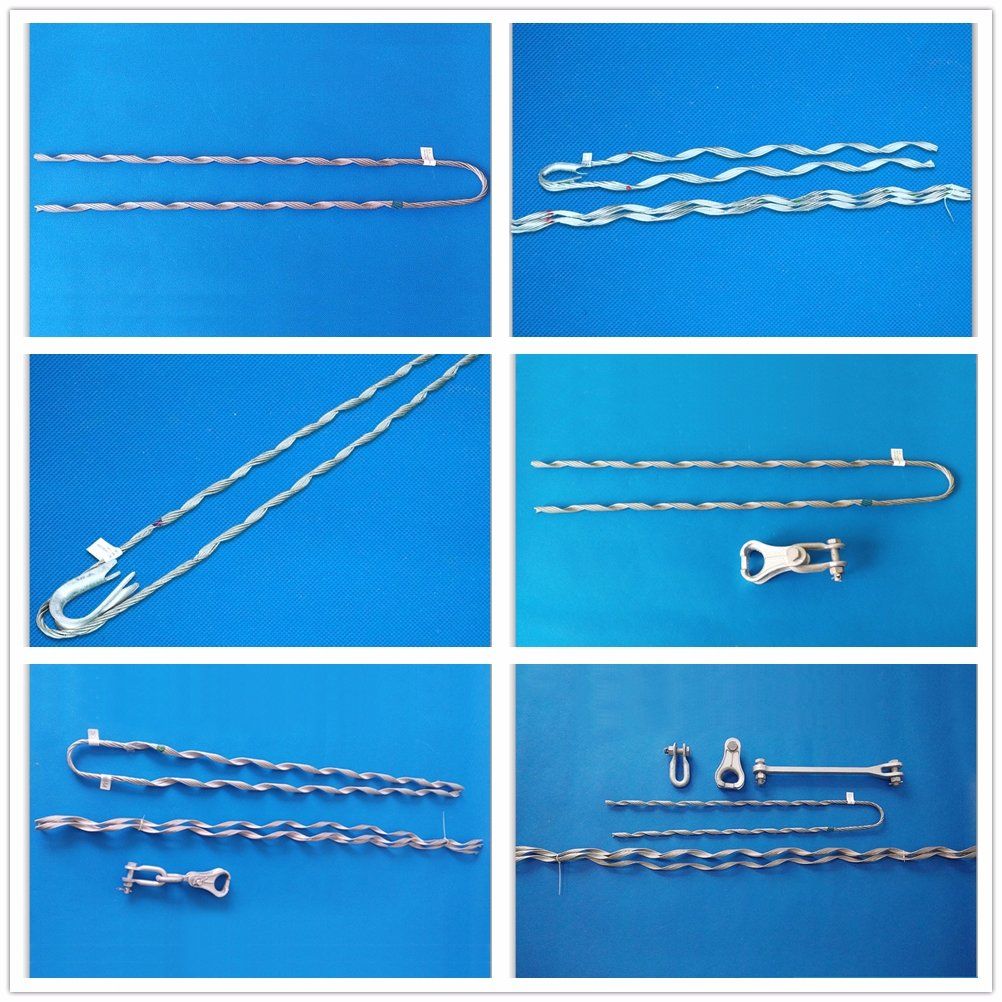

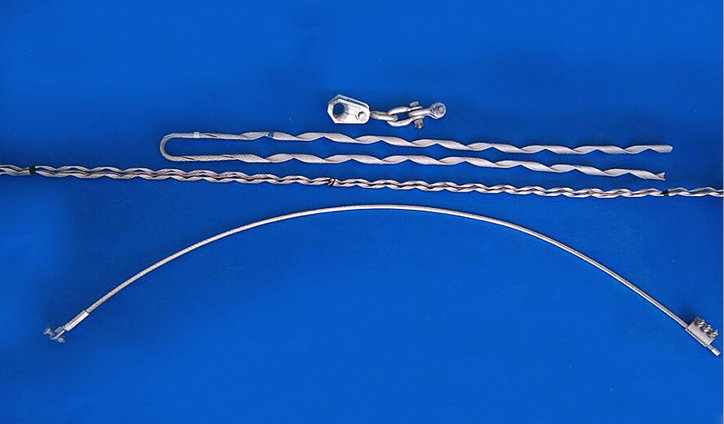

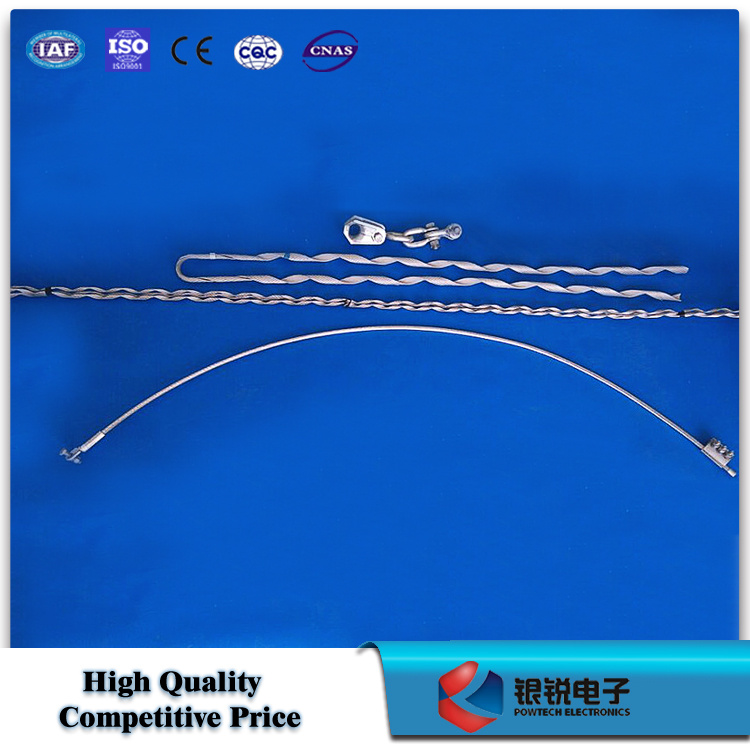

Tension Set for OPGW
Configuration & material:
Outer armor rod: steel wires
Inner armor rod: steel wires
Clevis thimble: hot galvanized cast steel
Extension link: hot galvanized cast steel
Anchor shackle: Hot dipped galvanized steel
Parallel groove clampAluminum ground wireBolt, nut and etc.
Feature:
Stress can be distributed equally among the OPGW cable surface without stress centralization to protect OPGW cable. It can have higher grip strength for the cable and can support higher tensile force when stress doesn't exceed the optical cable's side strength.The grip strength for the cable is not less than 95% of rated tension strength (RTS) of the optical cable, fully suitable for the installation of OPGW cable.
Application:
Terminal pole tower, tension pole/tower, Suitable for city OPGW cable installation.
Technical data:
RTS: 70KN| Model | Cable Dia.
(mm) | Inner Armor Rod (mm) | Outer Armor Rod (mm) | Extension Link | Anchor shackle |
| ONZ-070-9.5 | 8.3-9.5 | 1900 | 1500 | PH-7 | U-7 |
| ONZ- 070-10.2 | 9.6-10.2 | 1900 | 1500 | PH-7 | U-7 |
| ONZ-070-11.5 | 10.3-11.5 | 1900 | 1500 | PH-7 | U-7 |
| ONZ-070-12.4 | 11.6-12.4 | 1900 | 1500 | PH-7 | U-7 |
| ONZ-070-13.4 | 12.5-13.4 | 1900 | 1500 | PH-7 | U-7 |
| ONZ-070-14.4 | 13.5-14.4 | 1900 | 1500 | PH-7 | U-7 |
| ONZ-070-15.4 | 14.5-15.4 | 1900 | 1500 | PH-7 | U-7 |
| ONZ-070-16.4 | 15.5-16.4 | 1900 | 1500 | PH-7 | U-7 |
| ONZ-070-17.4 | 16.5-17.4 | 1900 | 1500 | PH-7 | U-7 |
Related Product:
Why Choose Us?
1.Strict quality control system
2.Factory direct-sales,Lower purchasing cost
3.Professional,efficient after-sales service,Time and manpower saving
4.Experienced workers team,Advanced technicians,Sophisticated equipment
5.Small trial order/OEM product/artwork is acceptable
6.ADSS/OPGW cable,cable accessories supplier for 20 years from China,ISO certificated
FAQ
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces free samples, But u should pay express
cost or u provide us with express account number.
Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.
Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production.
Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.
Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.
Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
