Dead End Clamp with Insulation Coating
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
NZAL-9.69 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Finish: |
Insulation Coated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Sheath Material: |
PVC |
| Range Of Application: |
Cold-Resistant |
| Certification: |
Ce, RoHS, ISO9001, CCC, UL |
| Brand: |
Optelec |
Product Description
Dead End Grips with Insulation Coating Hot Selling Product
Description:
POWTECH has created a denomination that will allow us to recognize the accessory. The denomination for the
Dead-end Grip is the following: with first letters meaning the product NZ(Dead end Guy Grip), Two letters meaning raw material which they are made from. AL (Aluminum alloy), AC (Galvanized steel),AW (Aluminum Clad Steel-ACS), CW (Copper Clad Steel-CCS), AA(Aluminized steel), SS(Stainless Steel). and with two series of three numbers, they show the diameter range of the specified conductor.
Example:
Galvanized steel Dead-end Guy Grip for a cable with a diameter range from 9,31 to 9,99 mm
The rods of the fitting are refaced in the ends to avoid damages in the application and to the specified cable.
The inside of the dead end is gritted with a non-slip material.
The Aluminum Alloy dead-ends coated have the main function to fix the messenger cable to a pole, to the structu re, front of a house, etc.The area of the loop always must be protected with a suitable thimble.
Tolerances: Length -10mm--+20mm.
Raw Material: Aluminum Alloy
Be used for: Insulated conductor, Telecom cable
Technical Specifications:| Type | Diameter range | Length (mm) | Color code | Per carton |
| Qty | Wt/kg |
| NZAL-9.69 | 9.23~9.69 | 559 | Yellow | 100 | 9.09 |
| NZAL-13.16 | 12.53~13.16 | 762 | Blue | 50 | 13.63 |
| NZAL-16.76 | 16.25~16.76 | 838 | Red | 25 | 10.9 |
| NZAL-20.13 | 18.69~20.13 | 914 | Orange | 25 | 14.54 |
| NZAL-21.48 | 19.91~21.48 | 965 | Blue | 25 | 15.45 |
| NZAL-22.55 | 21.22~22.55 | 1016 | Black | 25 | 18.18 |
| NZAL-31 | 29~31 | 1194 | Blue | 20 | 20 |
| NZAL-33 | 31~33 | 1244 | Black | 15 | 17.45 |

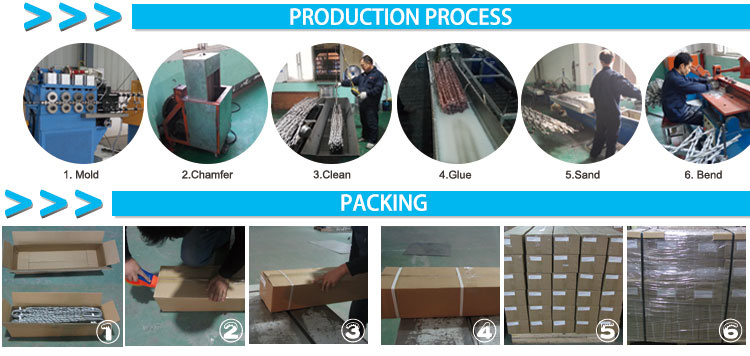

Production Line:

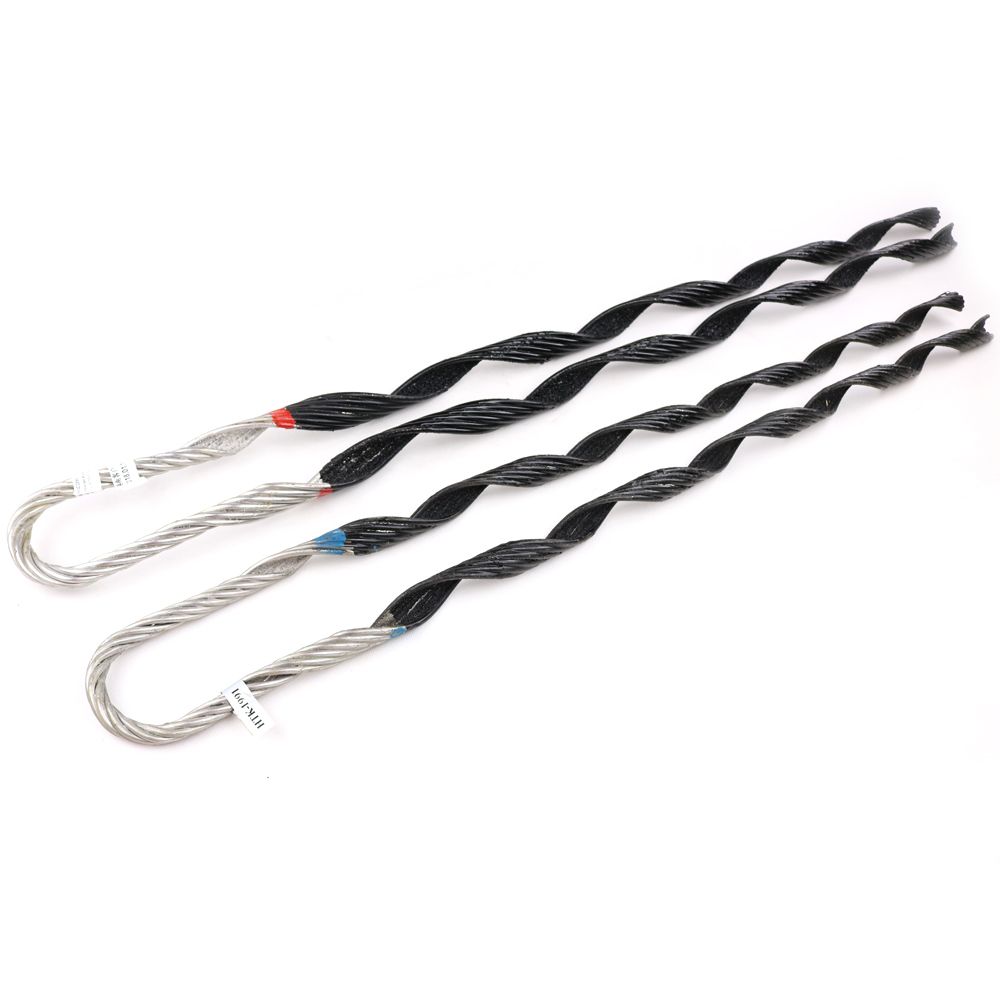

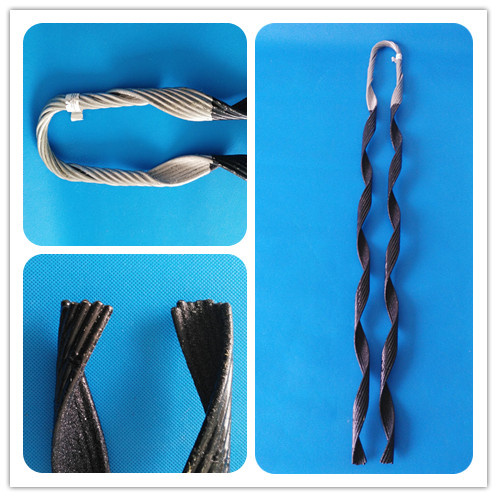

Detailed Images:
Contact Information:
Certificate:
Customer Company Visit:
Advantages:
Reliability
Powtech has been engaged in designing and manufacturing ADSS/OPGW cable,Cable accessories nearly for 20 years.
Powtech professional design teams and strict quality control systems ensure each product from Powtech is reliable and ideal deals.
Powtech quality products meet the demands of many clients all around the world well according to their specific requirements.
Faster Delivery
With our own factory and product line, we can ensure faster delivery in the industry.
Further more, we have accumulated rich resources in shipping channels, which also promise our faster delivery time.
Powtech standard cases can be finished within 7 days and those custom-made within 8 days.
Lower Price
Powtech are committed to providing the best products for money of our customers all over the world.
Powtech has its own factory and massive production line,Which ensures that we can procure all materials at a lower purchasing cost than our competitors.
We promise that all products from Powtech are the most affordable in the industry.
Why Choose Us?
1.Strict quality control system
2.Factory direct-sales,Lower purchasing cost
3.Professional,efficient after-sales service,Time and manpower saving
4.Experienced workers team,Advanced technicians,Sophisticated equipment
5.Small trial order/OEM product/artwork is acceptable
6.ADSS/OPGW cable,cable accessories supplier for 20 years from China,ISO certificated
FAQ
Q1:Can u provide us with samples?
Powtech answer:Yes, we can provide 1-2 pieces free samples, But u should pay express
cost or u provide us with express account number.
Q2:If we need customized/OEM product,Can u supply?
Powtech answer:Yes,Customized/OEM product/artwork is available for us.Professional
designers,Advanced technicians and mold modifications department ensure that we will make
the exact model for u accordingly.
Q3:If u can accept small trial order?
Powtech answer:Yes,Small trial order can be available also,But u should pay 100% T/T down
payment before production.
Q4:What payment terms available for u?
Powtech answer:If order amount less than 10000USD,100% T/T;If amount more than
10000USD,30%T/T in advance plus 70%T/T before shipment.
U can place an order via Alibaba website,Which is also very safe
and has payment protection for u.
Q5:Can u offer discount ?
Powtech answer:Yes,Discount available on large order.The larger the order,The more
discount we will offer.
Q6:What is ur delivery time?
Powtech answer:Usually,Delivery will be made within 2 weeks after down payment;If order very
large,1 month we will need.Please note,Delivery time is production time,Shipping time not
included,If u want to know,We can help u consult shipping company for details.
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
