| Prod Model: |
DIP-P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
>8000nit |
| Waterproof: |
IP67 Front IP65 Rear |
| LED Chip: |
Opto |
| Usage: |
Outdoor P10 Full Color |
| Module Size: |
160*160mm |
| Module Dots: |
16*16 Dots |
| Best Viewing Distance: |
10-150m |
| Vertical Viewing Angle: |
140degree |
| Mtbf: |
10,000 Hours |
| Life Span Time: |
100,000 Hours |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Average Power Consumption: |
800W/M2 |
Product Description
Outdoor P10 Full Color Video LED Display for Advertising ScreenSpecification:| | The technology parameter of P10 outdoor |
| Number | Item | P10 |
| 1 | Pixel pitch | 10mm |
| 2 | Size of modual | 160mm X 160 mm |
| 3 | Resolution of modual | 16 X 16 |
| 4 | Density of pixel | 10000dots/m2 |
| 5 | Pixel configuration | 1R1G1B |
| 6 | Red wavelength | 625±2nm |
| 7 | Green wavelength | 525±2nm |
| 8 | Blue wavelength | 470±2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | 10-120m |
| 11 | Horizontal viewing angle | 120° |
| 12 | Maximum power consumption | ≤1500w/m 2 |
| 13 | Brightness | ≥8000cd /m 2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/4scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | ≥300Hz |
| 20 | Working voltage | AC220V/110V±10% |
| 21 | IP grade | IP67(adjustable) |
| 22 | Working temperature | -20°C~80°C |
| 23 | MTBF | >10000 hours |
| 24 | Life span | >100,000 hours |
| 25 | Defects rate. | ≤0.00001(Led display line standard<0.0001) |
| 26 | Computer operation system | Win XP/Vista/ Win 2000/WIN7 |
| 27 | Video signal | RF, S-Video, RGB, RGBHV, YUV, YC.ect |
Features and advantages;1. High Contrast: 4000: 1, which is a very high level to ensure a vivid image of our LED display screen system...
2. First-class LED chip: Supplied by COTCO/CREE/AXT/SILAN/TAI WAN LED lamps to ensure the long lift-time and high brightness of our LED display screen system
3. Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen's investment.
4. Long-term Brightness: 9000-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display screen.
5. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system
6. Convenient Servicing: Front and rear cabinet access make the maintance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

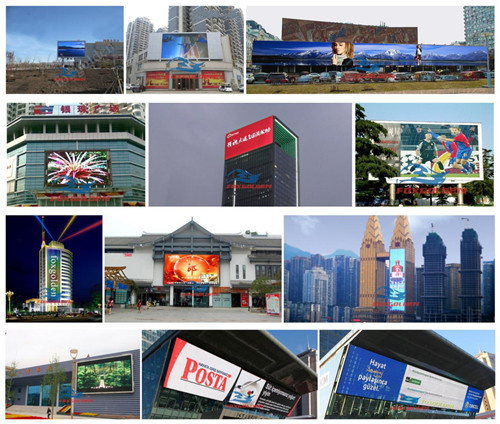

Application and market;
. Wide application field & short ROI time: Commercial advertising LED display screen, Stadium perimeter LED display screen, Mobile trailer LED display screen for mobile media, shopping mall LED display screen for logo showing, bank&stock exchange LED display screen for rates showing, train & bus station LED display screen, air port LED display screen, telecommunication LED display screen system for information showing and instruction
Customers:
Our services;1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
Company:
Trade Terms1. Payment: T/T, 50% deposits before production, 50% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
3. Shipping port: Shenzhen, Mainland China
4. MOQ: 1sqm
Package :
1.Anti-shaking wooden case
2.Flight case
3.Carton case(Normall uesd for led modules)
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
