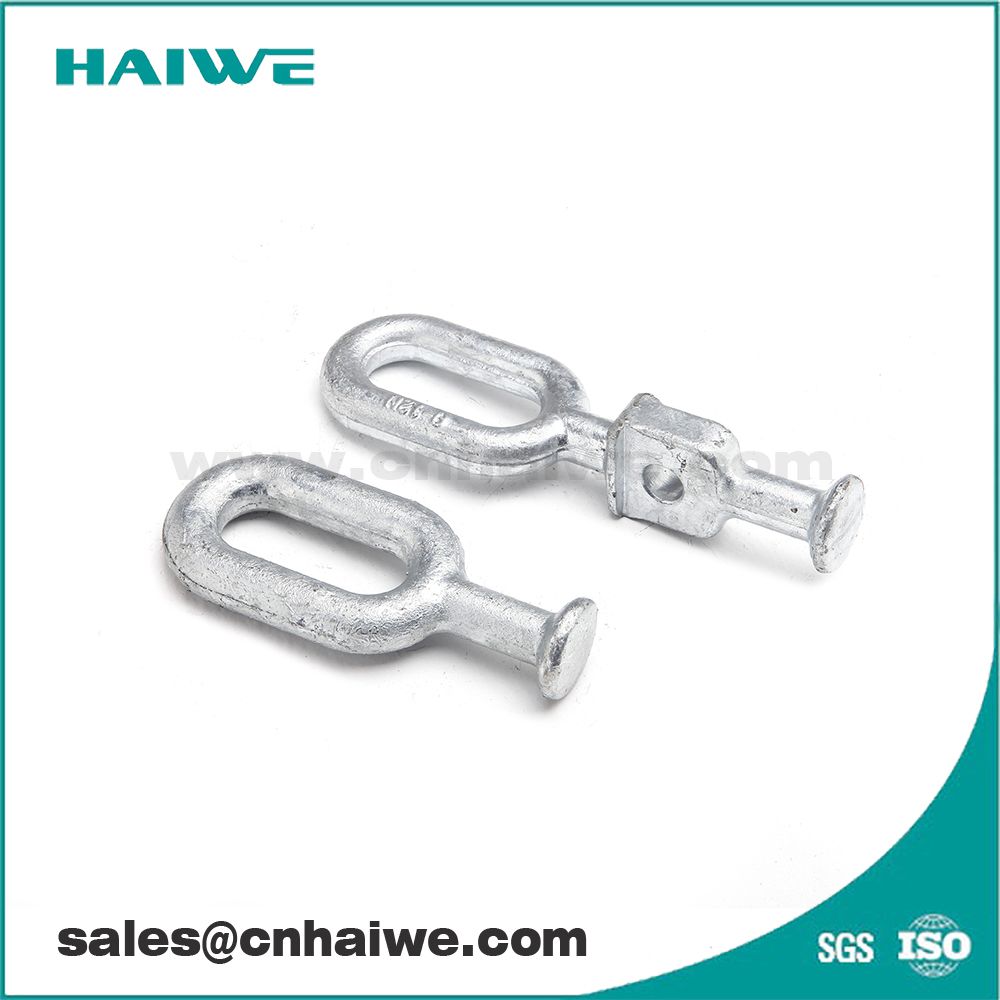

Overhead Line Hardware Hot-DIP Galvanized Steel Forged Ball-Head Shackle
| Price: |
US $ 1-10/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
QN QP QS QPJ |
| OEM: |
Accept |
| Sample: |
Free |
| Body: |
Hot-DIP Galvanized Drop Forged Steel. |
| Application: |
Overhead Transmission Line |
| Dimension: |
as Per Drawing or Sample |
| Material: |
Hot-DIP Galvanized Steel |
| Shape: |
Q Shape |
| Usage: |
Power |
Product Description
Hot-dip galvanized steel ball-head shackleMaterial:
Hot-dip galvanized drop forged steel.

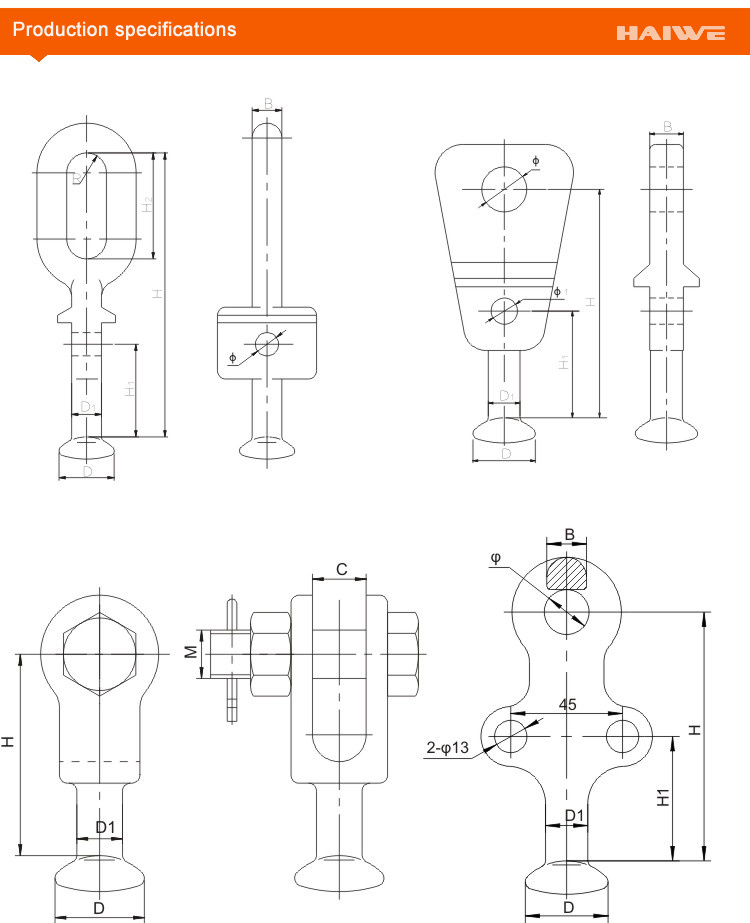

| Type | Dimensions(mm) | Rated Failure Load (KN) | Weight(kg) |
| B | D1 | D | R | Φ | H1 | H2 | H |
| Q-7N | 16 | 16 | 33.3 | 12.5 | 14 | 42 | 50 | 142 | 70 | 1.2 |
| Q-12N | 18 | 18 | 33.3 | 12 | 14 | 56 | 64 | 173 | 120 | 1.5 |
| Q-16N | 20 | 20 | 41.0 | 15 | 14 | 42 | 75 | 168 | 160 | 1.5 |
| Type | Link Marking | Dimensions(mm) | Rated Failure Load (KN) | Weight(kg) |
| B | D1 | D | Φ1 | Φ | H1 | H |
| Q-7P | 16 | 16 | 17 | 33.3 | 14 | 20 | 40 | 100 | 70 | 1.1 |
| Q-12P | 16 | 18 | 17 | 33.3 | 14 | 24 | 40 | 105 | 120 | 1.3 |
| Type | Catalog
No. | Link Marking | Dimensions(mm) | Rated Failure Load (KN) |
| C | D | D | M | H |
| QS-0755 | Q-7U | 16 | 20 | 17 | 33.3 | 16 | 75 | 70 |
| QS-1075 | Q-10U | 16 | 20 | 17 | 33.3 | 18 | 75 | 100 |
| QS-1275 | Q-12U | 16 | 20 | 17 | 33.3 | 22 | 75 | 120 |
| QS-1680 | Q-16U | 20 | 22 | 21 | 41.0 | 24 | 80 | 160 |
| | Q-21U | 20 | 30 | 21 | 41.0 | 27 | 102 | 210 |
| | Q-30U | 24 | 38 | 25 | 49.0 | 36 | 110 | 300 |
| QS-32120 | | 24 | 32 | 25 | 49.0 | 30 | 120 | 320 |
| Type | Link Marking | Dimensions(mm) |
Rated Failure Load (KN) |
| H | H | B | Φ | D1 | D |
| QPJ-07100 | 16 | 100 | 50 | 16 | 18 | 17 | 33.3 | 70 |
| QPJ-10110 | 16 | 110 | 50 | 16 | 20 | 17 | 33.3 | 100 |
| QPJ-12110 | 16 | 110 | 50 | 16 | 24 | 17 | 33.3 | 120 |
| QPJ-16120 | 20 | 120 | 55 | 18 | 26 | 21 | 41 | 160 |
| QPJ-21120 | 20 | 120 | 60 | 20 | 26 | 21 | 41 | 210 |
FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.
2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
3. What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.
4. Package information
A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box,about 1000kg per pallet
5.How long to make a sample?Is it free?
A:7 days depending on the sample's complexity.Normally,our sample is free
6.How to contact us?
A:Send your inquiry details in the below,Click "send" now!
