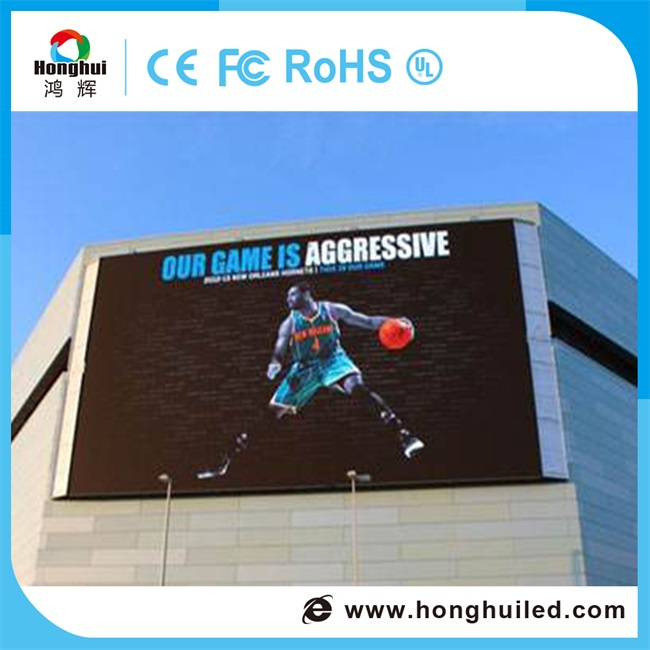

P16 Outdoor Building LED Display Screen

Prod Model:	p16 outdoor led display
Product Name:	P16 Outdoor LED Display
Gray Levels:	65536
Color Temperature:	6500-7000k
Refresh Rate:	900Hz
Display Contrast:	2500:1
Frame Rate:	60Hz/S
Service Life:	100000h
Use Voltage:	AC 90-240V
Operating Voltage:	DC5V
Maximum Power Consumption:	1000W/M2
Tube Chip Color:	Full Color
Pixel Pitch:	16mm
Display Function:	Market Display
Scanning Mode:	Static Scan
Display Type:	LED Video Display
Certification:	FCC
IP Rating:	IP65/IP54
Pixel Configuration:	DIP346
Average Power Consumption:	500W/M2
Pixel Density:	3906DOT/M2
Application:	Cultural Square,Shopping Mall,Park

Product Description

 p16 outdoor building led display  screen


Product name	P16 DIP346  outdoor led display	P16 DIP346  outdoor led display
Brightness	≥7000cd/m2	≥7000cd/m2
Pixel composition	DIP346	DIP346
Half-bright angle (horizontal / vertical)	120°/ 60°	120°/ 60°
Viewing angle (horizontal / vertical)	160°/ 140°	160°/ 140°
Number of colors	16bit	16bit
Discrete control point	≤0.1‰	≤0.1‰
Control method	synchronize with the video source	synchronize  with the video source
Working temperature	-20~50ºC	-20~50ºC
Working environment humidity	10%~90%	10%~90%
Cell plate resolution (L * H)	16*8	16*16
Unit plate size	256mmX128mm	256mmX256mm
Cell plate current	4.5A	8A
Module weight	370g	930g
Transfer board	hub40	hub75

1. Full-color LED display is composed of RGB trichromatic LEDs, 36 bit color can be shown, and the real-time, synchronous display all kinds of information, such as 2 d or 3 d animation, video, television and live streaming video content.
2. Screen after use for a long time still can keep perfect quality and white balance and enough brightness.
3. LED optical design, high precision, the RGB tricolor LED the far field of view perfect match, in order to make sure from any Angle can be the perfect reappearance of video picture
4. High quality LED chips, anti static, high wavelength stability;
5. Advanced packaging equipment, guarantee the quality and life expectancy;
6. Has a large Angle, color uniformity, low failure rate and easy maintenance.
7. Standard processing technology to ensure that each row and each column tube at the same level, ensure the stability of the clear picture.










Product Description

Super high-resolution is one of the most apparent features for the new generation of LED display, which can offer our viewers more excellent display effect.

The size of the display can be customized and details can be based on customers' request.
Convenient assembling and disassembling can save customer's time and labor cost.
The working environment of the display can be without air conditioner because of its good air exhaust.

Our LED display are widely used by our clients in Europe, America, Australia, etc
The range of application such as hotel advertising, stage renting, television, shopping malls, big markets, outdoor stadiums, concerts, fairground, sightseeing districts, Outdoor advertising media, enterprise engineering, cultural tourism, image promotion, commercial real estate, etc...



Application:

Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination



Functions and advantages

1. The cabinet is made of Die-Casting aluminium, so can be spliced with no crack. The thickness of the cabinet is only 80mm. The assembling can be much quicker and more efficient for no tools is needed, which help customers to transport and mount without any difficulties, reduce the cost of use greatly!

2. Have obvious competitiveness in quality and price in the international LED market.

3. Make use of the excellent protection technology and reached the index of IP65, can work normally in any weather condition!

4. Low power consumption and good performance of dissipating heat make it work normally in the condition of no air conditioning.

5. Suitable for outdoor, commercial applications, banking, financial securities, post office, ferry, shopping malls, railway stations, telecommunications, government, offices, monitoring, schools, restaurants, hotels, entertainment, enterprises and other various indoor places.

Our company
Shenzhen HongHui photoelectric Technology Co., Ltd is a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2013, headquartered in Shenzhen with a 2000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination. To learn more, please ask us about our fully featured customization options!
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.


Packing
Cabinet size (L * H): 960*960
Box area: 0.9216 m²
Finished product box weight: 20KG
Cabinet resolution (L * H): 160*160
Box material: Iron
Single card can be with a number of modules (height): 6 pieces


FAQ

Q1: What is a static screen, what is to scan screen, what is the difference between the two?
A: Static screen refers to when the LED screen display text, images and video, the lamp is lit at the same time on the LED display light;
Scanning screen refers to the light like a scan on the LED display, is the advantage of the characteristics of the human eye of persistence of vision, in a short time period will be LED display all light respectively.
The difference between the two: Because the LED display is driven by duty ratios, which makes the brightness of the LED display has a lot to do with the light of time cycle. So, in the same light tube with the same brightness, static screen is higher than scanning the brightness of the screen, so commonly used static screen need high brightness in the outdoor show, the scanning screen commonly used in the interior of brightness demand is not high, driven to save cost.

Q2: Display image is not complete or position is not right?
A: 1, . Firstly check "display position" in the software and the "screen size" of the parameters and display the actual size is consistent, if you don't remember, can go to see behind the screen body, calculate the screen body length and width of the pixel points. "Screen size" is determined, can go to the computer software in and see how much "screen display area", and then adjusted, until the position match.
2, if the display is not comprehensive, checks the screen connection to load the file is in agreement with the screen "screen size".
3, plays in the image is in agreement with the screen size, some image for 16: 9 or 4: 3 ratio, so released images won't full-screen playback.

Q3: There is no sound LED display screen?
A: 1, confirm that the computer sound card, use the earphone test. If there is a voice.
2. Confirm the computer sound output problem is normal to the screen body contact amplifiers, and the power amplifier to the audio cable is normal.
3, once again confirm the computer sound card and other equipment have sound card without conflict.

Q4: Unit module, one or more lines are not bright?
A: 1, use multimeter to check out A Line with the 4953 IC (manager) if there is a general output pin.
2, use a multimeter to check 74 hc138IC input and output is normal.
3, using a multimeter to check if 4953 IC burning or burned.
4, using a multimeter to check whether there is high level 4953 IC (voltage).
5, use multimeter to check 74 hc138 and 4953 control foot pass.

Q5: Display jitter (scintillation) have stripes?
A: 1, check whether the DVI signal line contact is in good condition, and signal lines are in good condition, the presence of poor contact, or the signal wire RJ45 crystal head with and without oxidation phenomenon.
2, check the signal lines for damage phenomenon.
3, check whether signal lines with high voltage cable, identified and separated. (signal wire and cable, power supply of electromagnetic interference) of weak current signal has great.
