| Prod Model: |
P16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
256mm*256mm |
| Brightness: |
6800CD |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
16mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Average Power Consumption: |
420 |
| Pixel Density: |
3906 |
Product Description

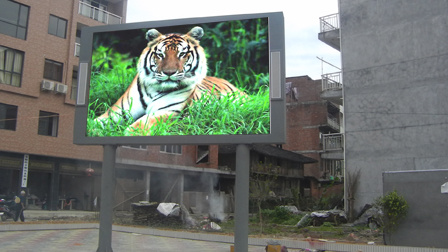

P16 Outdoor RGB LED Screen DisplayHot sale High Brightness Outdoor Rental LED Display with Hanging Structure,Outdoor LED Screen,LED Sign Board,LED Advertising Display,LED Video Wall,LED Screen Hire,LED Signs,Fixed LED Display,LED Wall,LED Video Wall,Sports LED Display
Description:
1. High Brightness even under sunlight ,Light Weight by using die-casting Aulminum Cbinet
2.Good waterproof IP65 for front and IP54 for rear,anti-corrosion,antifogging,long life span>100000Hours
3. High brightness up to 6800CD, Long view distance from 100M away
4.Made with high quality Epistar leds keep high quality, low lighting decay, energy saving
5. Brightness can be adjusted automatically according to different surrondings,
can be set to open and close the screen on fixed automatically
6. Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.
7.Cabinet size and materials can be customized according different projectsSpecification
| The specifications of modules |
|
| Items | Parameter |
| Product Model | P16 Full Color Led Module |
| Module size | 256mm*256mm |
| Pixel pitch | 16mm |
| Pixel density | 3906dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W)*16dots |
| Module maximum power consumption | 20W |
| Module Thickness | 25CM |
| Module Weight | 0.55kg |
| Driving method | Constant Current Driving |
| Scanning method | Static scan |
| Interface | HUB75 |
| Brightness | ≥6500-6800cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 1024mm*1024mm |
| Module quantity | 16pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 64*64dots |
| Optimal viewing distance | 30M~100M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 420W/H |
| Maximum power consumption | ≤800W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Jiacai can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Xiamen, China
5. Warranty time: 2 years
6. Delivery time: 3-12 working days
Jiacai Full Color Outdoor LED Display Case

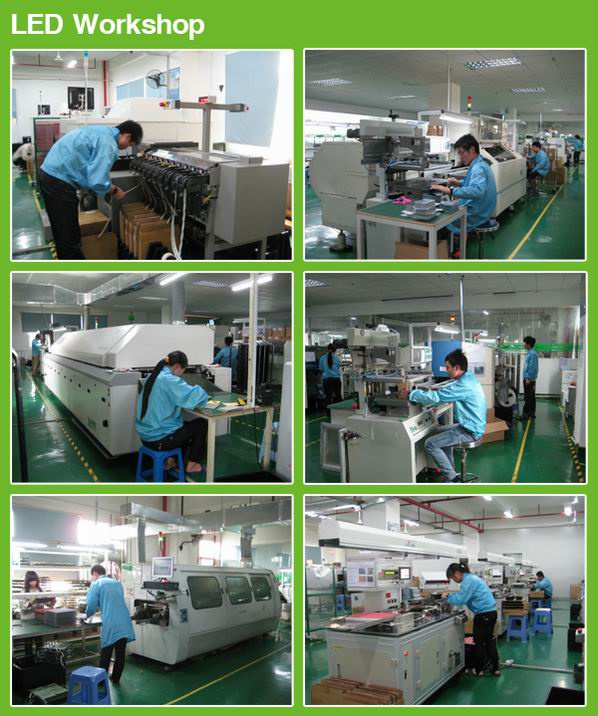

Quanzhou Jiacai Electronics Co., Ltd is a hi-tech company which is located in Fujian Quanzhou. Our factory is founded in 2006, coving an area of 175000 squar meters, with 35PCS producton lines for out door DIP modules, 6PCS production lines for indoor SMD products and more than 1600 skilled workers
Our RD team is composed by experienced experts, specialists and engineers, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients.
Our main products include indoor LED display, outdoor LED display, LED module, LED panel, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events. All our products have passed CE, FCC and RoHS certificates. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 1 years warranty
We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
