P6 Outdoor LED Digital Display for Buildings
| Price: |
US $ 650-800/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
P6 led digital display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
192mm*192mm |
| Cabinet Size: |
768mm*768mm |
| Brightness: |
6500-7000CD |
| Chip Brand: |
Epistar |
| LED Encapsulation: |
Kinglight |
| LED Specification: |
SMD3535 |
| Drive IC: |
5124/16016 |
| Refresh Rate: |
>1000Hz/S |
| Working Temperature: |
-25-+55 |
| Warranty: |
2 Years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Pitch: |
6 |
| Pixel Density: |
27777 |
Product Description

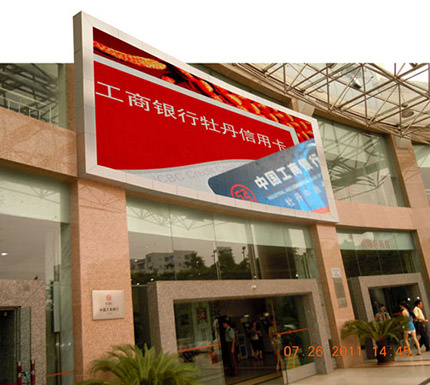

P6 Outdoor LED Digital Display for Buildings
Products detail:
P6 Outdoor Full Color LED DisplayChina LED Display Manufacturer Wholesale Outdoor Rental LED Display with Hanging Structure,Outdoor LED Screen,LED Sign Board,LED Advertising Display,LED Video Wall,LED Screen Hire,LED Signs,Fixed LED Display,LED Wall,LED Video Wall
Description:
1. High Brightness even under sunlight ,Light Weight by using die-casting Aulminum Cbinet
2.Good waterproof IP65 for front and IP54 for rear,anti-corrosion,antifogging,long life span>100000Hours
3. High brightness up to 7000CD, Long view distance from 100M away
4.Made with high quality Epistar leds keep high quality, low lighting decay, energy saving
5. Brightness can be adjusted automatically according to different surrondings,
can be set to open and close the screen on fixed automatically
6. Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.
7.Cabinet size and materials can be customized according different projectsSpecification
The specifications of modules |
|
| Items | Parameter |
| Product Model | P6 Full Color Led Module |

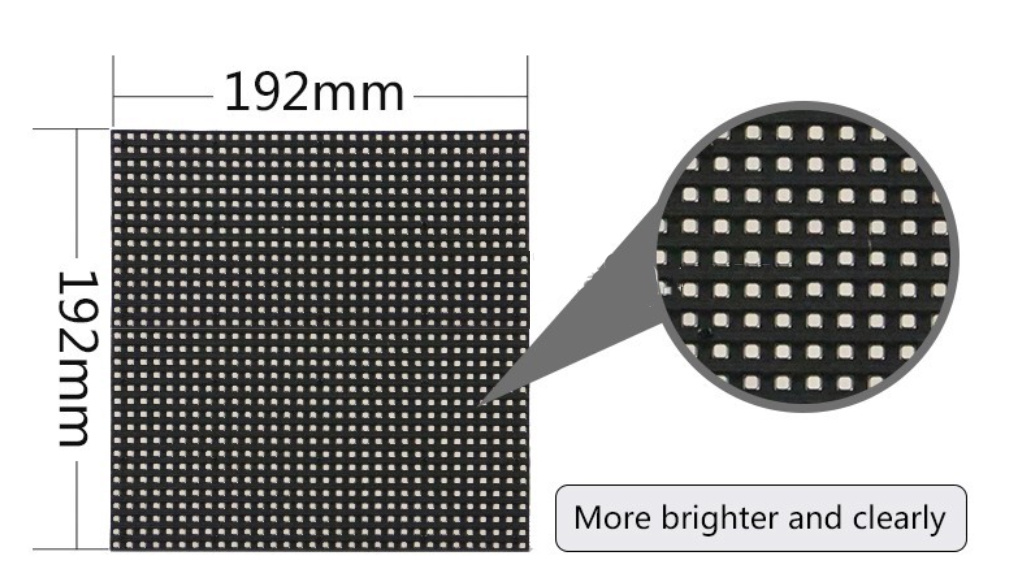

| Module size | 192mm*192mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 32dots(W)*32dots |
| Module maximum power consumption | 25W |
| Module Thickness | 25CM |
| Module Weight | 0.55kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/8 scan |
| Interface | HUB75 |
| Brightness | ≥6500-7000cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 768mm*768mm |
| Module quantity | 16pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 120*120dots |
| Optimal viewing distance | 8M~100M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-25°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 380W/H |
| Maximum power consumption | ≤760W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥1000HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
