| Prod Model: |
MJ6132TD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Power: |
5.5+1.1kw |
| Sliding Table Size: |
3200*375mm |
| Tilting Angle: |
45degree |
| Control Button: |
English Type |
| Sawblade Size: |
300mm |
| Scoring Sawblade Size: |
120mm |
| Machine Weight: |
800kg |
| Machine Color: |
White Grey |
| Production Time: |
15days |
| Guideway Type: |
Cylindrical Guideway |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
SGS |
Product Description

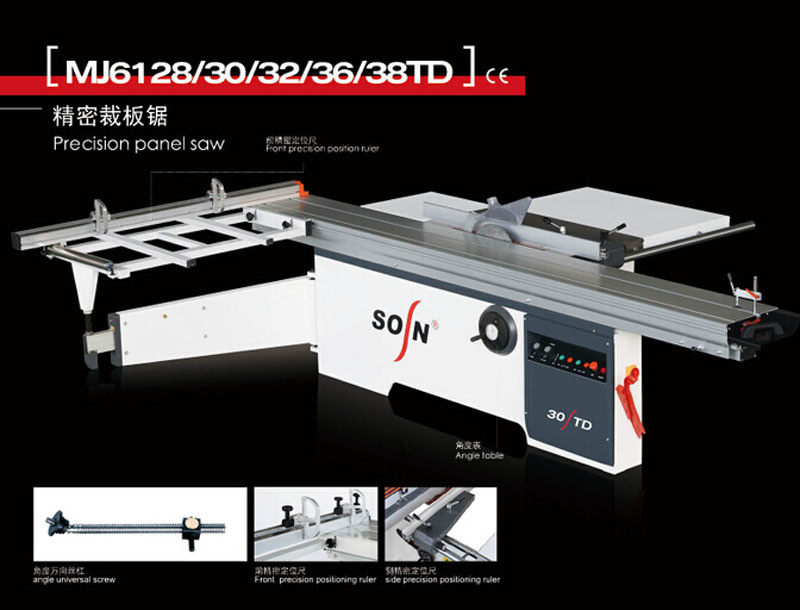

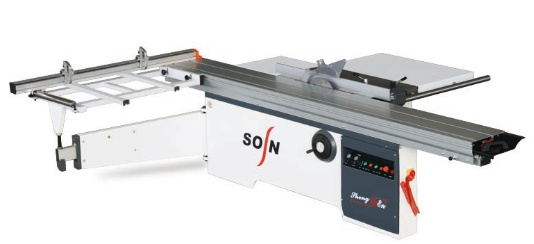

Panel Saw with Angle Tilting 45degree Mj6132td
Feature:

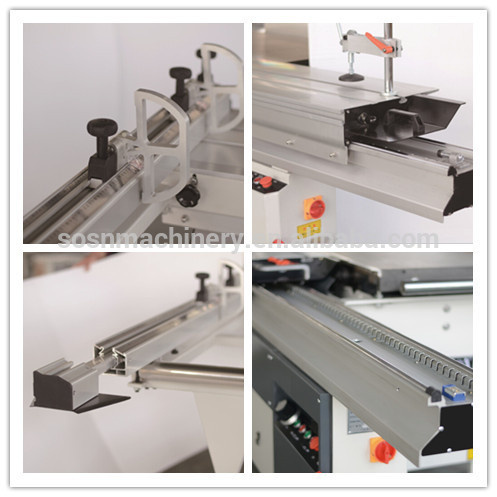

1. Sliding table guide track is plating chromium steel bars structure, exact and durable
2. Sliding table have multipoint locking, improving working efficiency greatly.
3. With oxidation treatment, movable table surface is beautiful and hard wearing
4. Manual up & down of main saw,tilting 0-45 degree
5. The motor can change Siemens motor - 5.5 kw +1.1kw
Standard Equipment
1. T-6 aircraft grade aluminum sliding table with 360mm width
2. Harvey unique "Compass" crosscut fence system

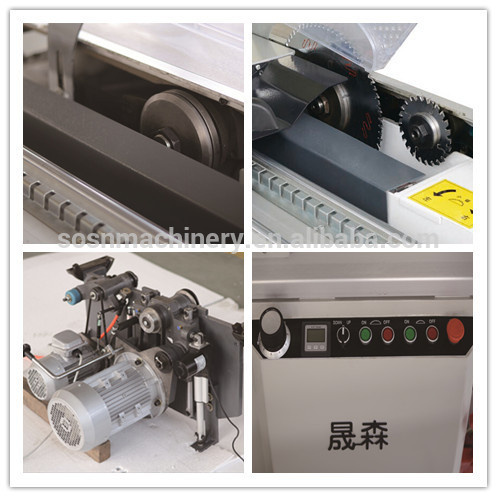

3. Independently driven main blade and scoring blade
4. Digital readouts for ripping width and blade angle
5. Heavy duty rip fence with micro-adjustment
6. Specially designed spindle arbor takes Dado blade
7. Transparent safety blade guard
8. User-friendly dual control panels

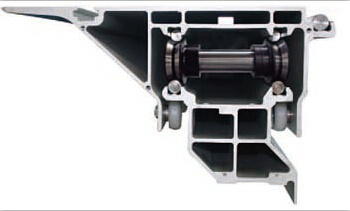

Altendorf structure
Main technical parameter:
| Dimension of sliding table | 3200X375mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm (250-300mm) |
| scoring saw blade diameter | 120mm |
| Speed of main saw spindle | 4500/6000rpm |
| Speed of scoring saw blade | 8000r/min |
| Tilting saw blade | 0-45 degree |
| Main motor | 5.5kw |
| Scoring motor | 1.1kw |
| Height of cut | 90mm |
| Height of cut 300mm saw blade at 45 degree | 60mm |
| Main spindle diameter | 30mm |
| Net weight | 800kgs |
| Gross weight(with plywood wooden package) | 850kgs |
| Overall dimensions | 3200X3150X900mm |
OEM service is available, you can choose:
1. Max. adjustable angle of main saw blade: 45º or 0º
2.Slade rail type: Altendrof structure (A), round rod structure(D) or linear structure(Z).
3. Saw blade lifting and tilting system (manual or electric)
4. Sliding table length from 1500mm to 3800mm (usually we have 1600, 2200, 2600, 2800, 3000, 320, 3800mm).
Why choose us:
1. professinal manufacture with 15 years production experience in woodworking machines.
2.more than 70 countries customers have enjoyed SOSN machines.
2.More machine equipment more advanced, more precise
3.Best price, high quality and reliable service
4.CE, ISO Certificate
5.100% quality testing before shipment
6. Warranty: 2 years, and supply the spare parts free of charge
Our service:
All inquiries will be answered within 24 Hours
We are right here waiting for an opportunity to serve you with our rich experiences.
We take care of every screw out from our hand, and will be very glad to become your reliable responsible and considerate partner in business and much more, like what we are doing for
our clients from Europe, America, Africa and Southeast Asia
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc

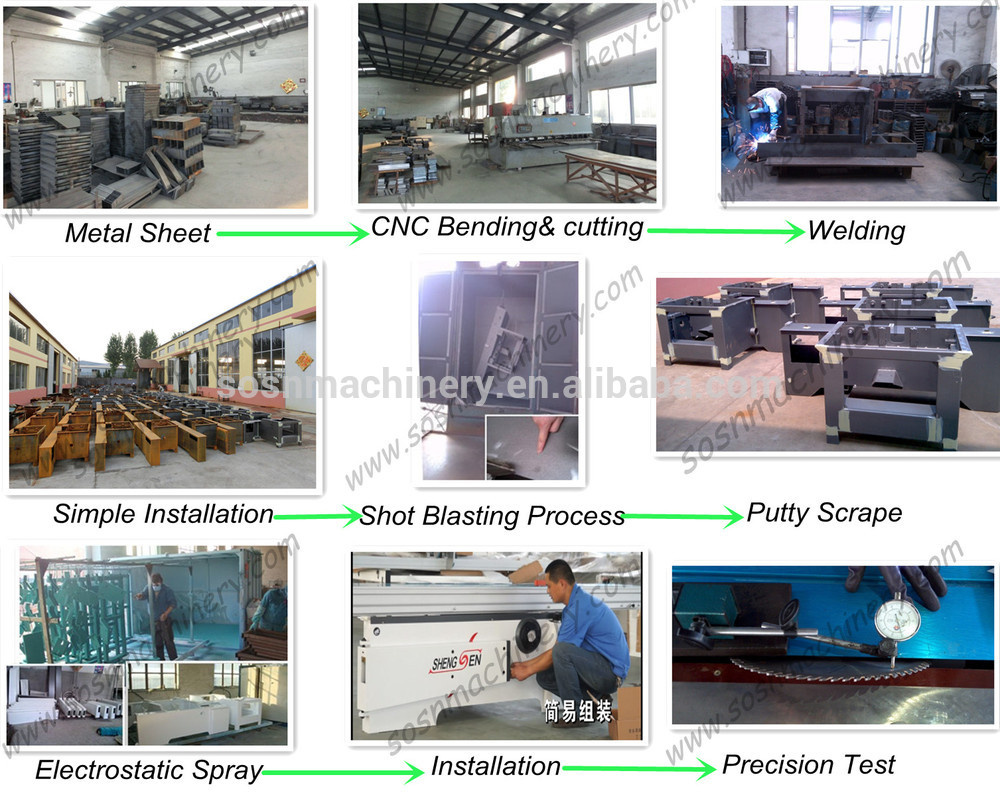

For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
