PCD Diamond Compact Wire Drawing Die

PCD Diamond Compact Wire Drawing Die
Price: US $ 2.34/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 5/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: PCD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Black
Factory: Hongxiang
Address: Shangqiu ,China
History: 26 Years
Certificate: ISO9001
Application: Hardware
Material: Polycrystalline Diamond

Product Description

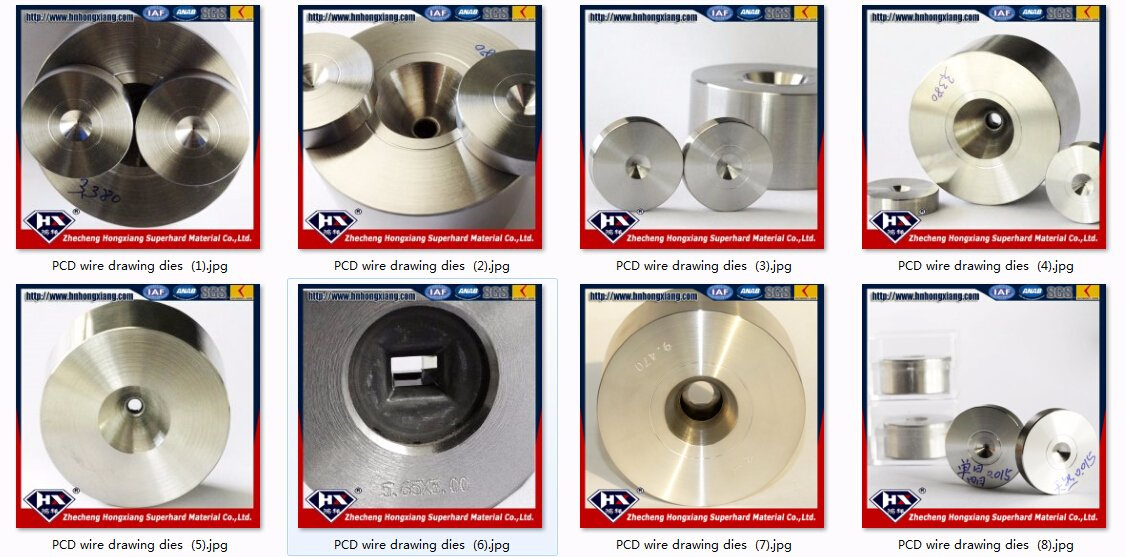

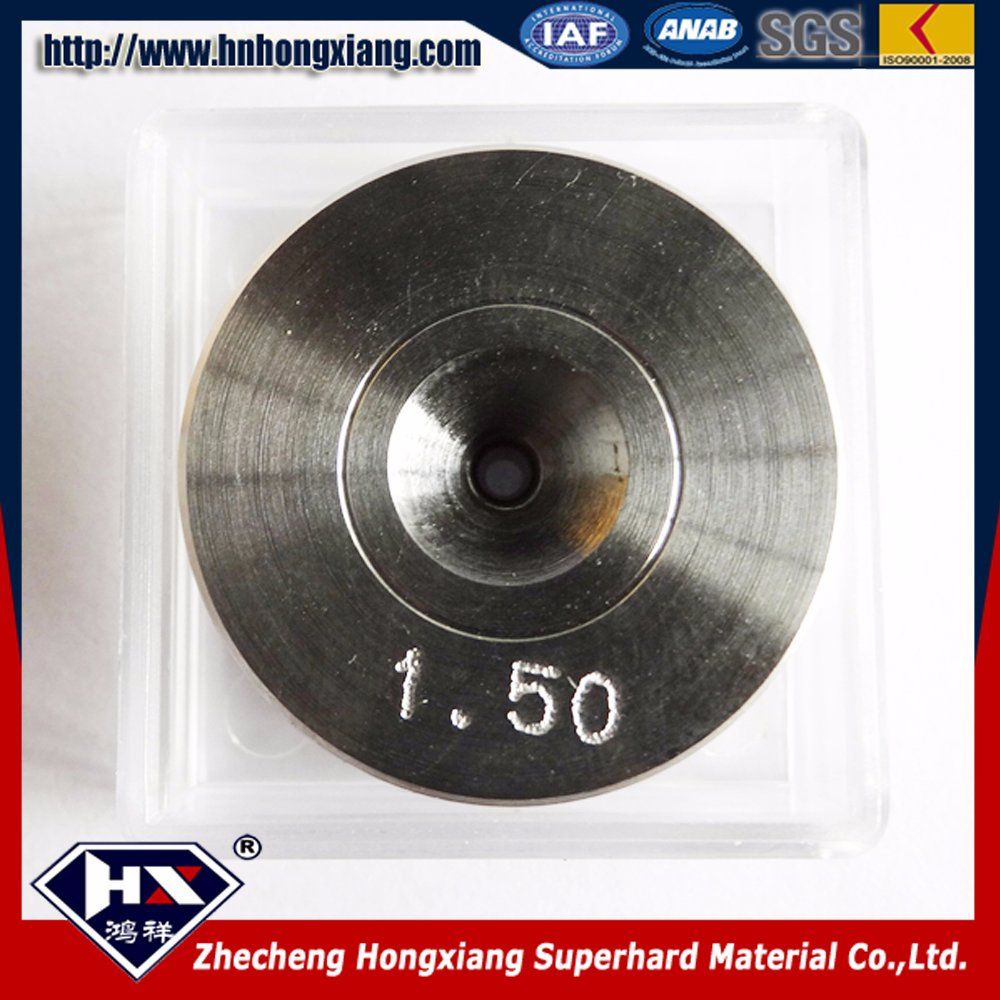

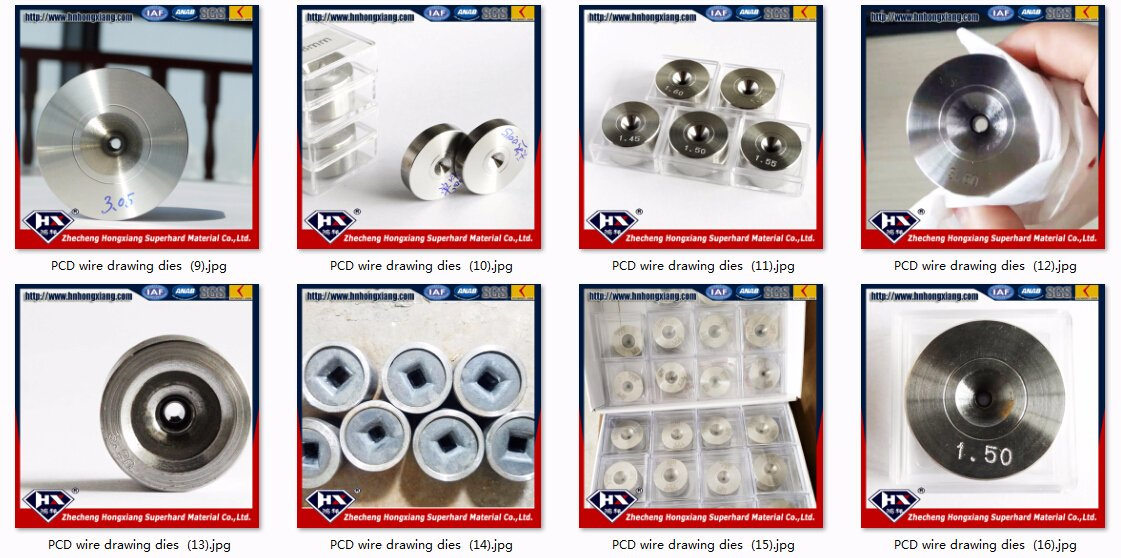

PCD wire drawing die



Hole : 0.015 - 30mm

Case diameter : 10 - 100mm

Case thickness : 4 - 50mm

Tolerance : +/- 0.001mm

Application : for stranding wire , drawing wire , compress wire , winding wire

Usage : for copper , steel , high carbon steel , middle carbon steel , low carbon steel , gold , silver , aluminium wire , and so on other metal wire , and tube .

Hole shape : round , flat , square

Material : PCD diamond , tungsten carbide , cobalt base PCD , silicon base PCD .

Factory : HONGXIANG made

Guarantee : quality problem , we change new for you .



SWG   inches     mmSWG   inches     mmSWG   inches     mm
7/00.512.7130.0922.337320.01080.274
6/00.46411.786140.082.032330.010.254
5/00.43210.973150.0721.829340.00920.234
4/00.410.16160.0641.626350.00840.213
3/00.3729.449170.0561.422360.00760.193
2/00.3488.839180.0481.219370.00680.173
1/00.3248.236190.041.016380.0060.152
10.37.62200.0360.914390.00520.132
20.2767.01210.0320.813400.00480.122
30.2526.401220.0280.711410.00440.112
40.2325.893230.0240.61420.0040.102
50.2125.385240.0220.559430.00360.091
60.1924.877250.020.508440.00320.081
70.1764.47260.0180.457450.00280.071
80.164.064270.01640.417460.00240.061
90.1443.658280.01480.376470.0020.051
100.1283.251290.01360.345480.00160.041
110.1162.946300.01240.315490.00120.03
120.1042.642310.01160.295500.0010.025

Zhecheng Hongxiang Superhard Material CO.,LTD was founded in 1990 which in affiliated with Wanke Group. The company is a high-tech enterprise with modern management experience and strong research and development ability. Besides, it has won many national and local awards and obtained several invention patents.
Constant innovation and good faith are our foothold.
Our products has exported to United Kingdom France , Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in many
Domestic and international exhibitions.
Main products:
1.synthetic diamond and diamond powder
2.In 2000,creative product:diamond drill bit,diamond wheel,diamond finger bit etc glass tools.The product is fit for kinds of glass machine,bilaterial machine and numerical control machine etc
3.In 2008,research and development product,Mainly include diamond saw blade ,diamond core bit,diamond abrasive fickert etc stone and ceramices tools.
4.In 2011,selfdevelop PCD ,PDC,etc oil and cutting tools products,which mainly used for oil drilling,coal drilling and geological exploration etc.

SALES :


CONTACTING DETAILS :

HONOR :

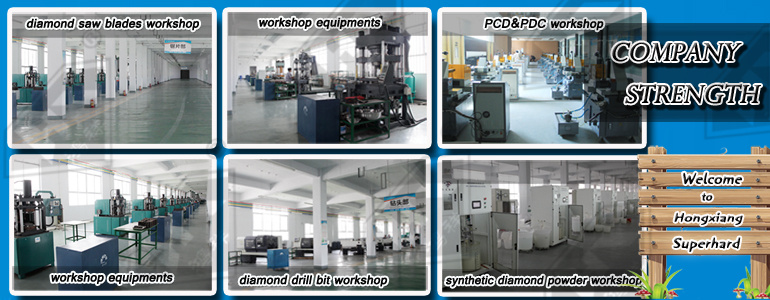

WORKSHOP :

Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.

Our products include,

Synthetic diamond

Diamond powder

Diamond saw blade

Diamond drill bit

Poly crystalline Diamond composite ( PDC )

PCD wire drawing dies

Diamond glass tools

Diamond polishing pad

Diamond cutting tools

Diamond grinding tools

Diamond wheels

Diamond tools, etc.

Why choose us?

1. Since 1990, with over 27 years diamond tools manufacturer experience.

2. Rich experience in OEM order

3. Advanced production equipment

4. Own design team, can help you custom the packaging

5. Own provincial engineering technology center

6. D&B and ISO9001 Certificates

We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.

Warmly welcome all partners to join us for mutual benefits cooperation.
