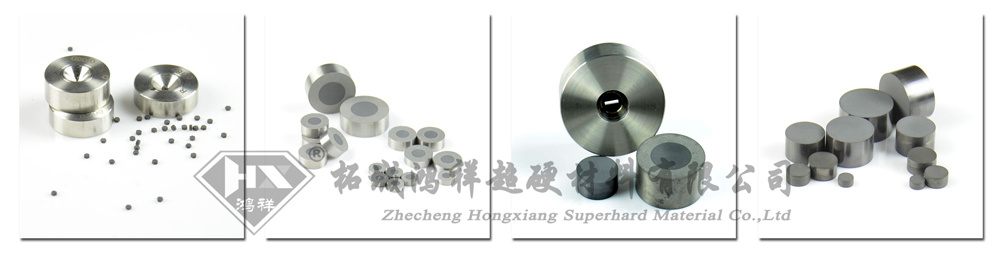

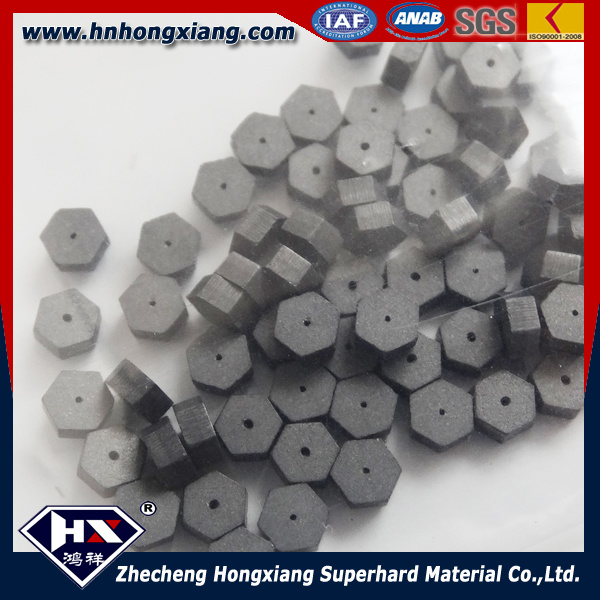

PCD for Wire Blanks for Wire Drawing Die

Prod Model:	HX PCD blanks
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Application:	Hardware
Material:	Polycrystalline Diamond

Product Description

Features:
· Available for almost any type of wire drawing operation, from rod-size to fine-size
· Can be used for wet and dry drawing applications
· Predictable wire surface quality
· Contain randomly oriented diamond crystals, making certain that wire remains round, even with significant wear the wire remains round
· Blank dimensions are guaranteed, hence maximum re cut dimensions can be predicted
· Grain Size from 1 grain to 50 Grains
· Size range from 0.025 microns to 15mm.

Application:
1. For copper wire
2. For aluminium wire
3. For iron wire
4. For steel wire

Packing & delivery:
OEM packing by DHL, UPS, TNT, EMS, and air shipping, sea shipping


Company info:

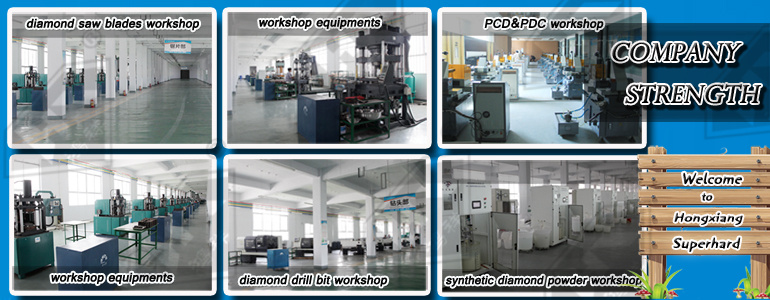

Zhecheng Hongxiang Superhard Material Co., ltd was founded in 1990which is affiliated with Wanke Group. The company is a high-tech enterprise with modern management experience and strong research and development ability. Besides, it has won many national and local awards and abtained several invention patents.
Main products:
1. Synthetic diamond and diamond powder
2. In 2000, creative product: Diamond drill bit, diamond wheel, diamond finger bit etc glass tools. The product is fit for kinds of glass machine, bilaterial machine and numerical control machine etc.
3. In 2008, research and development product, Mainly include diamond saw blade, diamond core bit, diamond abrasive fickert etc stone and ceramices tools.
4. In 2011, self-develop PCD, PDC, etc oil and cutting tools products, which mainly used for oil drilling, coal drilling and geological exploration etc.


Our products have experted to United Kingdom, France, Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in many domestic and international exhibitions. Besides, our products have won good satisfaction and recogntion by foreign customers.

ADDMA   Code	Product  NO.	Product Dimensions			Average Grain Size(um)						Max.Die4  Recommended (mm)
		Φd	ΦD	T	1	2	5	10	25	50
D6	WKH2510	2.5±0.2		1.0+0.2	√	√	√		√	-	0.4
D12	WKH3215	3.2±0.2		1.5+0.2	√	√	√	√	√	-	1.0
D15	WKH5225	5.2±0.2		2.5+0.2	-	√	√	√	√	√	1.5
D18	WKH5235	5.2±0.2		3.5+0.2	-	√	√	√	√	√	2.0
D6	WKR2510	2.5±0.2		1.0+0.2	√	√	√	√	√	-	0.4
D6	WKR3110	3.1±0.2		1.0+0.2	√	√	√	√	√	-	0.5
D12	WKR3115	3.1±0.2		1.5+0.2	√	√	√	√	√	-	1.0
D15	WKR5225	5.2±0.2		2.5+0.2	-	√	√	√	√	√	1.5
D18	WKR5235	5.2±0.2		3.5+0.2	-	√	√	√	√	√	2.0
D21	WKR7040	7.0±0.2		4.0+0.2	-	√	√	√	√	√	3.0
D24	WKR9853	9.8±0.2		5.3+2	-	√	√	√	√	√	4.0
D12	WKY4015	4.0±0.2	8.12±0.13	1.5+0.2	-	√	√	√	√	√	1.0
D15	WKY4023	4.0±0.2	8.12±0.13	2.3+0.2	-	√	√	√	√	√	1.8
D18	WKY4029	4.0±0.2	8.12±0.13	2.9+0.2	-	√	√	√	√	√	2.3
D21	WKY7040	7.0±0.2	13.65±0.13	4.0+0.2	-	-	√	√	√	√	3.5
D24	WKY7053	7.0±0.2	13.65±0.13	5.2+0.2	-	-	√	√	√	√	4.6
D27	WKY12987	12.9±0.2	24.13±0.25	8.7±0.25	-	-	-	√	√	√	5.8
D30	WKY129120	12.9±0.2	24.13±0.25	12.0±0.25	-	-	-	√	√	√	7.6
D31	WKY152120	15.2±0.2	26.6±0.25	12.0±0.25	-	-	-	-	√	√	9.0
D33	WKY152150	15.2±0.2	26.6±0.25	15.0±0.50	-	-	-	-	√	√	10.0
D33	WKY18150	18.5±0.2	29.0±0.25	15.0±0.50	-	-	-	-	√	√	11.0
D33	WKY18180	18.5±0.2	29.0±0.25	18.0±0.50	-	-	-	-	√	√	12.0
