PCD Polycrystalline Diamond Die Blanks

Name: PCD Polycrystalline Diamond Die Blanks
Brand: tool-buy.com
SKU: 679965062
Availability: InStock
Rating: 4.7 (20 reviews)

Price:	US $ 10/Piece
Trade Terms:	EXW,CIF
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Zhecheng Hongxiang Superhard Material Co., Ltd.

Showroom Product Company Profile

Prod Model:	WKH3215
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Certificate:	ISO9001
Factory:	Hongxiang
Factory History:	26 Years
Factory Address:	Shangqiu, China
Material:	Stainless Steel
Application:	Car

Product Description

Overall sintered
Laser beam cutting
Cobalt-based material
1. Diamond polymer
2. With the high temperature and the ultrahigh pressure sintering
3. Made of Diamond and bonding agent
4. High heat resistance and high thermal stability

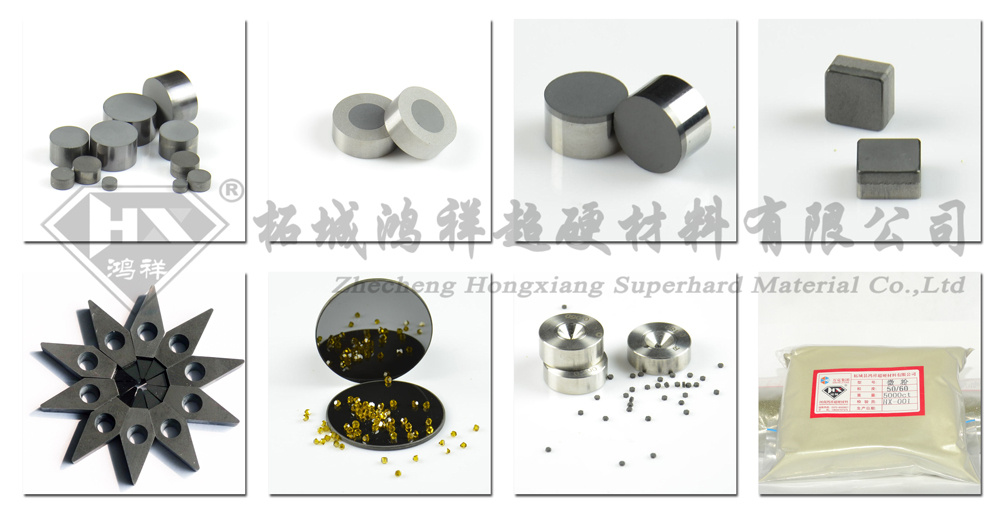

Shape: Triangle, square, rectangle, six prismatic, cylindrical,
Circular arc form at both ends

1. PCD for natural diamond: Size 10*0.75mm, 10*1mm
2. PCD for making wire drawing dies: Size D6, D12, D15, D18, D21, D24, D27, D30, D31, D33, etc,
We also can making the size as customer need.
3. Polycrystalline diamond compact PDC: Size 1308, 1313, 1613, 1913, etc.
4. PCD cutting tools: Diameter25mm, 30mm, etc

ADDMA
Code

Product NO.

Product Dimensions

Average Grain Size(um)

Max.Die4
Recommended
(mm)

Φd

ΦD

WKH2510

2.5±0.2

1.0+0.2

√

0.4

D12

WKH3215

3.2±0.2

1.5+0.2

√

1.0

D15

WKH5225

5.2±0.2

2.5+0.2

√

1.5

D18

WKH5235

5.2±0.2

3.5+0.2

√

2.0

WKR2510

2.5±0.2

1.0+0.2

√

0.4

WKR3110

3.1±0.2

1.0+0.2

√

0.5

D12

WKR3115

3.1±0.2

1.5+0.2

√

1.0

D15

WKR5225

5.2±0.2

2.5+0.2

√

1.5

D18

WKR5235

5.2±0.2

3.5+0.2

√

2.0

D21

WKR7040

7.0±0.2

4.0+0.2

√

3.0

D24

WKR9853

9.8±0.2

5.3+2

√

4.0

D12

WKY4015

4.0±0.2

8.12±0.13

1.5+0.2

√

1.0

D15

WKY4023

4.0±0.2

8.12±0.13

2.3+0.2

√

1.8

D18

WKY4029

4.0±0.2

8.12±0.13

2.9+0.2

√

2.3

D21

WKY7040

7.0±0.2

13.65±0.13

4.0+0.2

√

3.5

D24

WKY7053

7.0±0.2

13.65±0.13

5.2+0.2

√

4.6

D27

WKY12987

12.9±0.2

24.13±0.25

8.7±0.25

√

5.8

D30

WKY129120

12.9±0.2

24.13±0.25

12.0±0.25

√

7.6

D31

WKY152120

15.2±0.2

26.6±0.25

12.0±0.25

√

9.0

D33

WKY152150

15.2±0.2

26.6±0.25

15.0±0.50

√

10.0

D33

WKY18150

18.5±0.2

29.0±0.25

15.0±0.50

√

11.0

D33

WKY18180

18.5±0.2

29.0±0.25

18.0±0.50

√

12.0

Key words	PCD die blanks , wire drawing die blanks , diamond die blanks , PCD blanks , wire die blanks . Polycrystalline diamond die blanks
Size	D6 - D12 - D15 - D18 - D21 - D24 - D27 - D30 - D33 - D36
Application	For making all metal use wire drawing die , like copper PCD die , steel PCD die , iron PCD die , and so on
Bond	Coalt-based
Shape	Hexagon , Round
Type	Supported , Unsupporting
Grit	1um - 3um - 5um - 10um - 25um - 50um
Max Hole size	0.4mm - 20mm
Temperature resistant	650 degree
Note	1.Mount at temperautres not exceeding 650 degree . 2.Maximu recommend bearing diameter for "soft" nonferrous wire . " Hard " wire diameter normally should not exceed 65% of this diameter .
Quality Guarantee	Quality problem , we will exchange new one for you .
Packing	plastic bag & carton
Shipping ways	TNT ,DHL,FEDEX,EMS,UPS ,AIR SHIPPING ,SEA SHIPPING
Shipping time	5-7 work days
Payment terms	100% prepayment by T/T , western union , Paypal , Credit
Contact Person	Ms.Belinda
Factoty	ZHECHENG HONGXIANG
Website	www.hnhongxiang.com
Factory address	Shangqiu city , Henan province , China
Factory history	26 years
Factory main products	1. PCD die blanks & PCD die 2. PDC cutter for oil drilling bit 3. PCD cutting tools 4. Diamond powder

Zhecheng Hongxiang Superhard Material CO.,LTD was founded in 1990 which in affiliated with Wanke Group. The company is a high-tech enterprise with modern management experience and strong research and development ability. Besides, it has won many national and local awards and obtained several invention patents.
Constant innovation and good faith are our foothold.
Our products has exported to United Kingdom France , Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in many
Domestic and international exhibitions.
Main products:
1.synthetic diamond and diamond powder
2.In 2000,creative product:diamond drill bit,diamond wheel,diamond finger bit etc glass tools.The product is fit for kinds of glass machine,bilaterial machine and numerical control machine etc
3.In 2008,research and development product,Mainly include diamond saw blade ,diamond core bit,diamond abrasive fickert etc stone and ceramices tools.
4.In 2011,selfdevelop PCD ,PDC,etc oil and cutting tools products,which mainly used for oil drilling,coal drilling and geological exploration etc.

Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.

Our products include,

Synthetic diamond

Diamond powder

Diamond saw blade

Diamond drill bit

Poly crystalline Diamond composite ( PDC )

PCD wire drawing dies

Diamond glass tools

Diamond polishing pad

Diamond cutting tools

Diamond grinding tools

Diamond wheels

Diamond tools, etc.

Why choose us?

1. Since 1990, with over 27 years diamond tools manufacturer experience.

2. Rich experience in OEM order

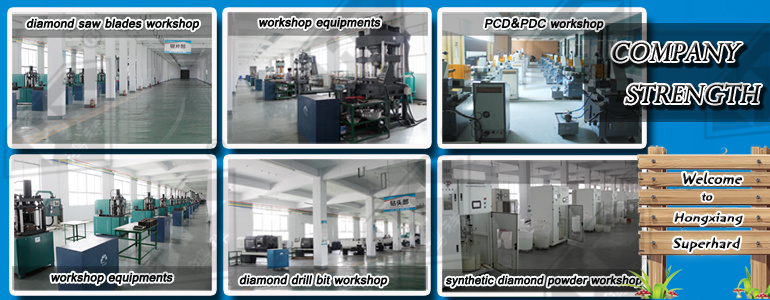

3. Advanced production equipment

4. Own design team, can help you custom the packaging

5. Own provincial engineering technology center

6. D&B and ISO9001 Certificates

We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.

Warmly welcome all partners to join us for mutual benefits cooperation.
