PDC Core Bit, Diamond PDC Drilling Bit Sample Free
| Price: |
US $ 100-500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |

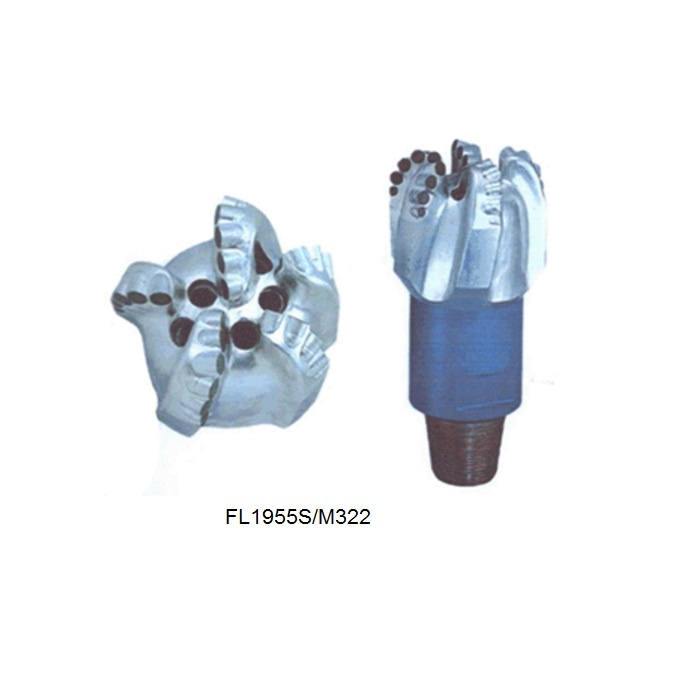

FL1955s M322 |
| Weight: |
5kg-810kg |
| Color: |
Golden |
| Operation Pressure: |
Atmospheric Pressure |
| Size: |
3"-26" |
| Application Condition: |
Soft-Hard Formation |
| HS Code: |
82071990 |
| Name: |
PDC Bit with 6 Wing Drilling Bit |
Product Description
PRODUCT DESCRIPTION
PDC cutters different features are selected and bit profile design is optimized to suit different drilling applications in different formations to satisfy different requirements when drilling soft to medium hard formations without sulfuretted hydrogen well section.
1. Drill bit with an optimized short parabolic profile adapted to soft to the medium soft homogeneous formation. 2. The involute asymmetric helix blade is designed to make the drill bit more stable. 3. Main and auxiliary cutting structure design, improve the life of the drill bit. 4. Bottom flow field simulation (CFD) hydraulic balance design, more conducive to drill bit cooling cleaning and chip removal.
5. High-performance composite sheet combination to improve the life of the drill bit.Bit diam.
(inch) | Bit specification | Recommend drilling well parameter |
Cutting teeth
(PCS) | Length
of stay | Nos.
nozzles | API
inch | Drilling
pressure (KN) | RPM
(r/min) | Mud flow
(1/s) | than water
power |
| 8 1/2 | 28 | 85 | 5 | 4 1/2 | 30-100 | 50-250 | 25-35 | 2-7 |
| 9 1/2 | 32 | 100 | 5 | 6 5/8 | 50-160 | 50-250 | 25-35 | 2-7 |
| 12 1/4 | 43 | 120 | 6 | 6 5/8 | 50-160 | 50-250 | 44-60 | 2-7 |
OTHER MAIN PRODUCT
OEM SERVICE
As an original equipment manufacturer, drilling tools from QIDELI meet the highest engineering standards in order to be productive in the toughest working environments.We are continuously improving our service offering to meet the market demand. Please contact us to find out which model is available on your market.PACKING & DELIVERY
- We can delivery in 2-3 days if we have products in stock, special design and customize products need 20-30 days. - We can delivery according to customers' requirement, by sea, by air or express. We have long cooperation with DHL, TNT, EMS, UPS, FedEx. - Standard export packing.Boxes will be stacked in a square, there's a tray at the bottom.- .Covering with PE stretch film.
