| Prod Model: |
1906 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
PDC for Oil Drilling Industry |
| Certification: |
ISO9001 |
| Factory: |
Hongxiang |
| History: |
26 Years |
| Address: |
Shangqiu ,China |
| Type: |
Cutter |
| Material: |
Polycrystalline Diamond |
| Work Type: |
Gear Cutting |

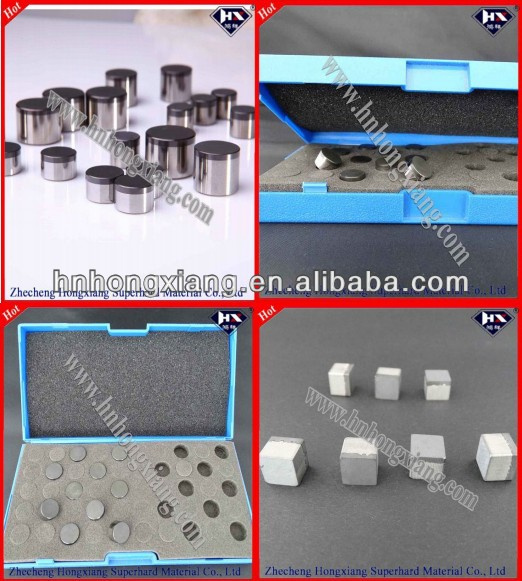

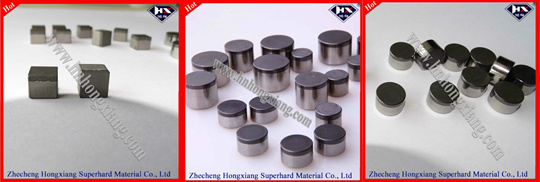

Product Description
Main products:
1.synthetic diamond and diamond powder
2.In 2000,creative product:diamond drill bit,diamond wheel,diamond finger bit etc glass tools.The product is fit for kinds of glass machine,bilaterial machine and numerical control machine etc.
3.In 2008,research and development product,Mainly include diamond saw blade ,diamond core bit,diamond abrasive fickert etc stone and ceramices tools.
4.In 2011,self-develop PCD ,PDC,etc oil and cutting tools products,which mainly used for oil drilling,coal drilling and geological exploration etc.
Advantages:
1.It has a super long life. The useful life of the PDC
bit is 4~5 times than the diamond bit, 10 times than
the tungsten carbide bit at least.
2.It has high drilling speed.
3.It can be operated with low pressure and low speed.
4.It has a good package protection.
5.It can be used widely, more suitable for drilling in
the stratum with hardness coefficient
Packaging : plastic bag, carton
Shipping ways: By express(TNT,DHL,Fedex,EMS), By air.
Inspection : ISO9001:2000
Our products have experted to United Kingdom,France,Germany,Spain,Italy,USA,Canada,Brazil,Japan,Korea,Thailand,Vietnam,India,Egypt,Iran,Turkey etc 52 countries and participated in many domestic and international exhibitions.Besides,our products have won good satisfaction and recogntion by foreign customers
Please contact us if you would like any further information. | Product Number | Diameter
(D)(mm) | Height
(T) (mm) | Diamond Thickness
(t) (mm) | Diamond
Chamfer
(mm) |
| 1308 | 13.44±0.03 | 8.00±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1313 | 13.44±0.03 | 13.20±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1608 | 15.88/16.00±0.03 | 8.00±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1613 | 15.88/16.00±0.03 | 13.20±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1908 | 19.05±0.05 | 8.00±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1913 | 19.05±0.05 | 13.20±0.10 | 2.30±0.20 | 0.30±0.10 |
| 1916 | 19.05±0.05 | 16.31±0.10 | 2.30±0.20 | 0.30±0.10 |
| Key words | PDC cutter , Polycrystalline diamond compact cutter , Oil drilling bit part PDC |
| Diameter | 6mm - 20mm |
| Thickenss | 3mm - 20mm |
Diamond
Thickness | 2.5mm , 1.0mm , 1.5mm , 2.0mm , 2.3mm |
| Application | For oil drilling bit ; For coal drilling bit ; For stone cutting ; For mining drilling bit ; |
Standard
Tolerance | 0.001mm |
| Bond | Cobalt based |
| Grit | 1um - 3um - 5um - 10um - 25um - 50um |
Temperature
resistant | 650 degree |
Quality
Guarantee | Quality problem , we will exchange new one for you . |
| Note | 1.Mount at temperautres not exceeding 650 degree .
2.Maximu recommend bearing diameter for "soft" nonferrous wire .
" Hard " wire diameter normally should not exceed 65% of this diameter . |
| Packing | plastic bag & carton ; plastic box . |
| Shipping ways | TNT ,DHL,FEDEX,EMS,UPS ,AIR SHIPPING ,SEA SHIPPING |
| Shipping time | 5-7 work days |
| Payment terms | 100% prepayment by T/T , western union , Paypal , Credit |
| Contact Person | Ms.Belinda |
| Factoty | ZHECHENG HONGXIANG |
| Website | www.hnhongxiang.com |
| Factory address | Shangqiu city , Henan province , China |
| Factory history | 26 years |
| Factory main products | 1. PCD die blanks & PCD die
2. PDC cutter for oil drilling bit
3. PCD cutting tools
4. Diamond powder |
Zhecheng Hongxiang Superhard Material CO.,LTD was founded in 1990 which in affiliated with Wanke Group. The company is a high-tech enterprise with modern management experience and strong research and development ability. Besides, it has won many national and local awards and obtained several invention patents.Constant innovation and good faith are our foothold.Our products has exported to United Kingdom France , Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in manyDomestic and international exhibitions. Main products:1.synthetic diamond and diamond powder2.In 2000,creative product:diamond drill bit,diamond wheel,diamond finger bit etc glass tools.The product is fit for kinds of glass machine,bilaterial machine and numerical control machine etc3.In 2008,research and development product,Mainly include diamond saw blade ,diamond core bit,diamond abrasive fickert etc stone and ceramices tools.4.In 2011,selfdevelop PCD ,PDC,etc oil and cutting tools products,which mainly used for oil drilling,coal drilling and geological exploration etc.
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.
Our products include,
Synthetic diamond
Diamond powder
Diamond saw blade
Diamond drill bit
Poly crystalline Diamond composite ( PDC )
PCD wire drawing dies
Diamond glass tools
Diamond polishing pad
Diamond cutting tools
Diamond grinding tools
Diamond wheels
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order
3. Advanced production equipment
4. Own design team, can help you custom the packaging
5. Own provincial engineering technology center
6. D&B and ISO9001 Certificates

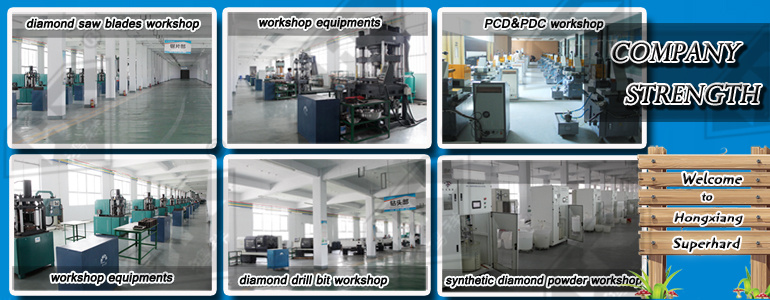

We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
