| Prod Model: |
75 mm to 215mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
75mm to 215.9 Mm |
| Usage: |
Water Wells, Mining |
| Types: |
Ordinary Type; Reinforced Type; Super Strength Typ |
| Thread: |
Ny Female or Male Threads. |
| No. Of Wing: |
3 |
| Cutter Materials: |
Polycrystalline Diamond Compacts |
Product Description
Description :

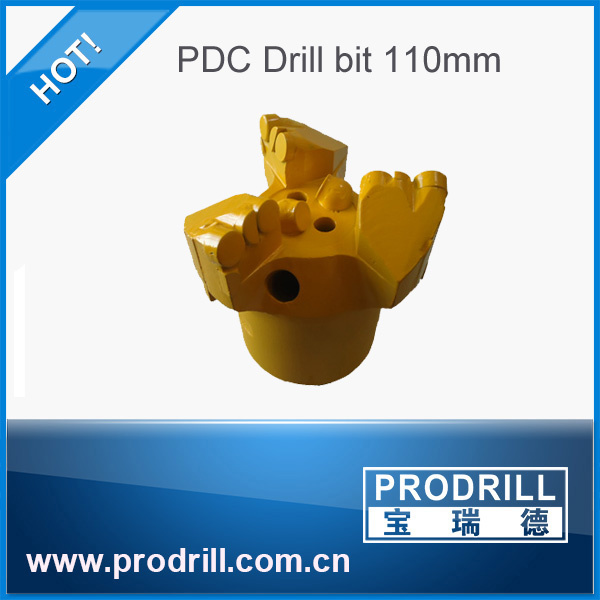

DC drag bit is a comprehensive drilling bit, mainly used for water wells, mining, geothermal, environmental and exploration drilling. It is suitable for drilling in soft and soft-medium formations with fast penetration rate and high efficiency, and special for the large diameter holes' drilling.
? Types: Ordinary type; Reinforced type; Super strength type.
? Threads: Any female or male threads.
Specification :
| Model | Diameter(mm) | PDC cutter type | Blade No. | Suitable rock formation | Operation mode |
| 75GD | 75 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 3 | Soft, medium, medium-hard | Cutting |
| 80GD | 80 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 3 | Soft, medium, medium-hard | Cutting |
| 90GD | 90 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 3 | Soft, medium, medium-hard | Cutting |
| 94GD | 94 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 3 | Soft, medium, medium-hard formation | Cutting |
| 98GD | 98 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 3 | Soft, medium, medium-hard | Cutting |
| 113GD | 113 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 3 | Soft, medium, medium-hard | Cutting |
| 120GD | 120 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 3 | Soft, medium, medium-hard | Cutting |
| 133GD | 133 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 3/4 | Soft, medium, medium-hard | Cutting |
| 140GD | 140 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 3/4 | Soft, medium, medium-hard | Cutting |
| 153GD | 153 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 3/4 | Soft, medium, medium-hard | Cutting |
| 171GD | 171 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 4/5 | Soft, medium, medium-hard | Cutting |
| 191GD | 191 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 4/5/6 | Soft, medium, medium-hard | Cutting |
| 215GD | 215.9 | Plane PDC, Cambered face PDC, GK PDC, ZX PDC | 6 | Soft, medium, medium-hard | Cutting |
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
