| Prod Model: |
Electrofusion Coupler 1400mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
From 20mm-1400mm |
| Connection: |
Welding |
| Structure: |
Vertical |
| Flexible Or Rigid: |
Flexible |
| Material: |
Plastic |
| Standard: |
Standard |
Product Description
Smart Joint developped full lines of electrofusion couplers from 20mm up to 1400mm with SDR11, SDR17& SDR9. ASTM couplers up to 36" in both IPS & DIPS are available.

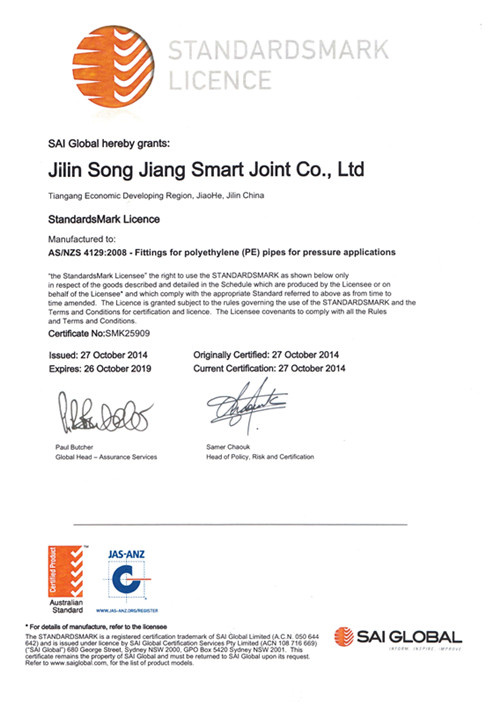

Product are certified by Australian watermark & standardmark.
Smart Joint are HDPE fittings & fusion machine producer since 1992. We provide our customer a complete solution for PE pipe installation
1: Butt fusion machine up to 2000mm
2: Electro-fusion machine up to 1400mm
3: Butt fusion fitting up to 1600mm
4: Electro-fusion coupler up to 1400mm

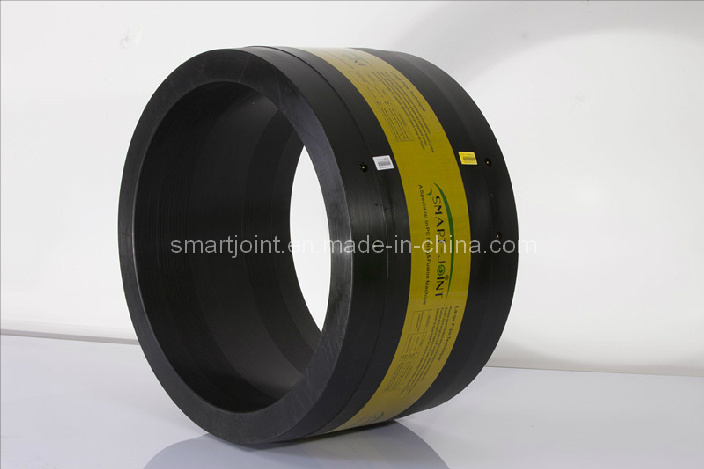

Electrofusion Coupler
| Code | Product Name | Size | SDR | Weight | Packing Size(mm) | pcs/box | L | D | Remark |
| EFCL20A | Electrofusion Coupler | 20 | 11 | 52 | 340*340*250 | 220 | 80 | 34 | |
| EFCL25A | Electrofusion Coupler | 25 | 11 | 55 | 340*340*250 | 200 | 80 | 39 | |
| EFCL32A | Electrofusion Coupler | 32 | 11 | 65 | 340*340*250 | 150 | 80 | 43 | |
| EFCL40A | Electrofusion Coupler | 40 | 11 | 75 | 340*340*250 | 108 | 86 | 53 | |
| EFCL50A | Electrofusion Coupler | 50 | 11 | 150 | 340*340*250 | 50 | 98 | 68 | |
| EFCL63A | Electrofusion Coupler | 63 | 11 | 224 | 340*340*250 | 32 | 109 | 81 | |
| EFCL75A | Electrofusion Coupler | 75 | 11 | 350 | 440*340*360 | 40 | 121 | 98 | |
| EFCL90A | Electrofusion Coupler | 90 | 11 | 604 | 340*340*250 | 12 | 147 | 118 | |
| EFCL110A | Electrofusion Coupler | 110 | 11 | 900 | 420*280*320 | 12 | 155 | 141 | |
| EFCL125A | Electrofusion Coupler | 125 | 11 | 1140 | 440*340*360 | 10 | 170 | 158 | |
| EFCL140A | Electrofusion Coupler | 140 | 11 | 1450 | | | 180 | 188 | |
| EFCL160A | Electrofusion Coupler | 160 | 11 | 1920 | 426*400*380 | 8 | 190 | 199 | |
| EFCL180A | Electrofusion Coupler | 180 | 11 | 2960 | 492*260*410 | 4 | 210 | 227 | |
| EFCL200A | Electrofusion Coupler | 200 | 11 | 3290 | 492*260*410 | 4 | 205 | 247 | |
| EFCL225A | Electrofusion Coupler | 225 | 11 | 4560 | 315*315*440 | 2 | 220 | 273 | |
| EFCL250A | Electrofusion Coupler | 250 | 11 | 4855 | 315*315*440 | 2 | 216 | 307 | |
| EFCL280A | Electrofusion Coupler | 280 | 11 | 8105 | 315*315*440 | 2 | 247 | 362 | |
| EFCL315A | Electrofusion Coupler | 315 | 11 | 8340 | 375*375*235 | 1 | 234 | 384 | |
| EFCL355A | Electrofusion Coupler | 355 | 11 | 11450 | 480*480*305 | 1 | 295 | 428 | |
| EFCL400A | Electrofusion Coupler | 400 | 11 | 15150 | 480*480*305 | 1 | 295 | 473 | |
| EFCL450A | Electrofusion Coupler | 450 | 11 | 28000 | | | 340 | 550 | |
| EFCL500A | Electrofusion Coupler | 500 | 11 | 37800 | | | 360 | 615 | |
| EFCL560A | Electrofusion Coupler | 560 | 11 | 48830 | | | 380 | 685 | |
| EFCL630A | Electrofusion Coupler | 630 | 11 | 61000 | | | 420 | 770 | |
| EFCL450B | Electrofusion Coupler | 450 | 17 | 17640 | | | 340 | 510 | |
| EFCL500B | Electrofusion Coupler | 500 | 17 | 22260 | | | 360 | 570 | |
| EFCL560B | Electrofusion Coupler | 560 | 17 | 26000 | | | 380 | 630 | |
| EFCL630B | Electrofusion Coupler | 630 | 17 | 38800 | | | 420 | 710 | |
| EFCL710B | Electrofusion Coupler | 710 | 17 | 49000 | | | 460 | 800 | |
| EFCL800B | Electrofusion Coupler | 800 | 17 | 67000 | | | 500 | 900 | |
| EFCL900B | Electrofusion Coupler | 900 | 17 | 106000 | | | 540 | 1030 | |
| EFCL1000B | Electrofusion Coupler | 1000 | 17 | 142000 | | | 580 | 1145 | |
| EFCS630B | Electrofusion Coupler | 630 | 17 | 29000 | | | 330 | 710 | |
| EFCS710B | Electrofusion Coupler | 710 | 17 | 39600 | | | 340 | 800 | |
| EFCS800B | Electrofusion Coupler | 800 | 17 | 49500 | | | 340 | 912 | |
Jilin Songjiang Smart Joint Co., Ltd was established in 1992.
We are specialised in fusion equipments and PE fittings. We can provide our customer with a complete solution for PE pipeline installation.

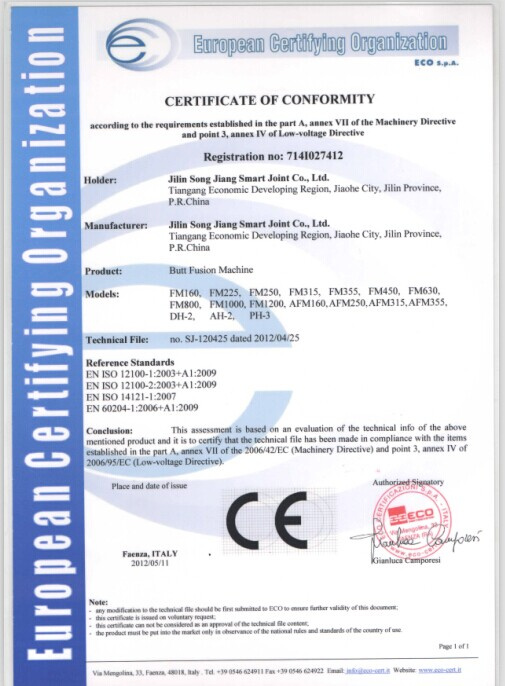

We are an ISO certified company. Fusion machine has CE certificate. HDPE fitting is going to be certified by DVGW Germany for both gas and water.
We have followed products:
Fusion Equipment
1: Hydraulic butt fusion machine up to 2000mm
2: Electro-fusion machine up to 800mm
3: Automatic butt fusion machine up to 315mm
4: Socket fusion kits up to 110mm
5: Other fusion tools
PE fitting
Spigot fitting up to 1200mm
Butt fusion reducer up to 1000mm
Butt fusion elbow up to 630mm
Butt fusion Tee up to 630mm
PE flange stub up to 1200mm
Electro-fusion fitting up to 800mm
Electro-fusion coupler up to 800mm
Electro-fusion tee, elbow, reducer up to 160mm
Electro-fusion saddle&Tapping
Sewage fitting for kitchen & Toliet
Irrigation fitting-PP compression fitting
