| Prod Model: |
UP TO 36" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure: |
160 Psi, 240 Psi, 360 Psi |
| Structure: |
Vertical |
| Flexible Or Rigid: |
Flexible |
| Connection: |
Welding |
| Standard: |
Standard |
| Material: |
PE |
Product Description

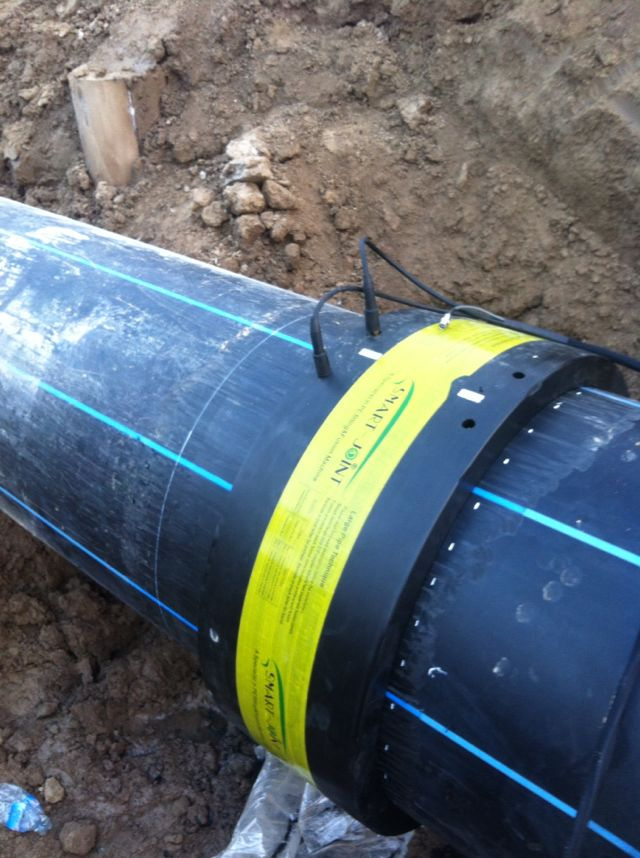

Smart Joint are specialist on Electrofusion fittings for both metric & ASTM inch size.
Large size electrofusion couplers are our advantaged products up to 1400mm&36"
All electrofusion fittings pass ISO long-term hydrostatic test and ASTM USA standard pressure test.
Smart Joint develops DH-2, pH-3, pH-4 barcode reading electrofusion machine with operation in English, Chinese, Spanish, Russian.
DH-2 welding range: 20mm-400mm
pH-3 welding range: 20mm-800mm
pH-4 welding range: 450mm-1400mm
| Code | Product Name | Size | Pressure | OD | D | L |
| IEFCL12A | IPS EF Coupler | 1/2" | 240PSI | 0.84 | 1.34 | 2.83 |
| IEFCL34A | IPS EF Coupler | 3/4" | 240PSI | 1.05 | 1.57 | 2.83 |
| IEFCL1A | IPS EF Coupler | 1" | 240PSI | 1.32 | 1.81 | 3.15 |
| IEFCL114A | IPS EF Coupler | 1 1/4" | 240PSI | 1.66 | 2.17 | 3.39 |
| IEFCL112A | IPS EF Coupler | 1 1/2" | 240PSI | 1.9 | 2.52 | 3.86 |
| IEFCL2A | IPS EF Coupler | 2" | 240PSI | 2.37 | 3.07 | 4.21 |
| IEFCL3A | IPS EF Coupler | 3" | 240PSI | 3.5 | 4.41 | 5.79 |
| IEFCL4A | IPS EF Coupler | 4" | 240PSI | 4.5 | 5.51 | 6.30 |
| IEFCL4A | IPS EF Coupler | 5" | 240PSI | 5.56 | 6.85 | 6.73 |
| IEFCL6A | IPS EF Coupler | 6" | 240PSI | 6.63 | 8.11 | 7.28 |
| IEFCL8A | IPS EF Coupler | 8" | 240PSI | 8.63 | 10.63 | 8.03 |
| IEFCL10A | IPS EF Coupler | 10" | 240PSI | 10.75 | 13.28 | 8.66 |
| IEFCL12A | IPS EF Coupler | 12" | 240PSI | 12.75 | 15.75 | 9.6 |
| IEFCL14A | IPS EF Coupler | 14" | 240PSI | 14 | 17.29 | 10 |
| IEFCL16A | IPS EF Coupler | 16" | 240PSI | 16 | 19.76 | 11.81 |
| IEFCL18A | IPS EF Coupler | 18" | 240PSI | 18 | 22.24 | 12.6 |
| IEFCL20A | IPS EF Coupler | 20" | 240PSI | 20 | 24.71 | 14.41 |
| IEFCL22A | IPS EF Coupler | 22" | 240PSI | 22 | 27.18 | 15.7 |
| IEFCL24A | IPS EF Coupler | 24" | 240PSI | 24 | 29.65 | 15.7 |
| IEFCL26A | IPS EF Coupler | 26" | 240PSI | 26 | 32.12 | 17.5 |
| IEFCL28A | IPS EF Coupler | 28" | 240PSI | 28 | 34.59 | 17.52 |
| IEFCL30A | IPS EF Coupler | 30" | 240PSI | 30 | 37.06 | 17.52 |
| IEFCL32A | IPS EF Coupler | 32" | 240PSI | 32 | 39.53 | 18.5 |
| IEFCL34A | IPS EF Coupler | 34" | 240PSI | 34 | 42.00 | 19.69 |
| IEFCL36A | IPS EF Coupler | 36" | 240PSI | 36 | 44.47 | 19.69 |
| IEFCL10B | IPS EF Coupler | 10" | 160PSI | 10.75 | 12.40 | 8.66 |
| IEFCL12B | IPS EF Coupler | 12" | 160PSI | 12.75 | 14.71 | 9.6 |
| IEFCL14B | IPS EF Coupler | 14" | 160PSI | 14 | 16.15 | 10 |
| IEFCL16B | IPS EF Coupler | 16" | 160PSI | 16 | 18.46 | 11.81 |
| IEFCL18B | IPS EF Coupler | 18" | 160PSI | 18 | 20.77 | 12.6 |
| IEFCL20B | IPS EF Coupler | 20" | 160PSI | 20 | 23.08 | 14.41 |
| IEFCL22B | IPS EF Coupler | 22" | 160PSI | 22 | 25.38 | 15.7 |
| IEFCL24B | IPS EF Coupler | 24" | 160PSI | 24 | 27.69 | 15.7 |
| IEFCL26B | IPS EF Coupler | 26" | 160PSI | 26 | 30.00 | 17.5 |
| IEFCL28B | IPS EF Coupler | 28" | 160PSI | 28 | 32.31 | 17.52 |
| IEFCL30B | IPS EF Coupler | 30" | 160PSI | 30 | 34.62 | 17.52 |
| IEFCL32B | IPS EF Coupler | 32" | 160PSI | 32 | 36.92 | 18.5 |
| IEFCL34B | IPS EF Coupler | 34" | 160PSI | 34 | 39.23 | 19.69 |
| IEFCL36B | IPS EF Coupler | 36" | 160PSI | 36 | 41.54 | 19.69 |
| IEFCL6H | IPS EF Coupler | 6" | 360PSI | 6.63 | 9.84 | 8.03 |
| IEFCL8H | IPS EF Coupler | 8" | 360PSI | 8.63 | 12.60 | 8.82 |
| IEFCL10H | IPS EF Coupler | 10" | 360PSI | 10.75 | 14.17 | 9.53 |
| IEFCL12H | IPS EF Coupler | 12" | 360PSI | 12.75 | 16.93 | 10.63 |
| DEFCL4A | DIPS EF Coupler | 4" | 240PSI | 4.8 | 6.30 | 6.6 |
| DEFCL6A | DIPS EF Coupler | 6" | 240PSI | 6.9 | 8.46 | 7.87 |
| DEFCL8A | DIPS EF Coupler | 8" | 240PSI | 9.05 | 10.60 | 8.05 |
| DEFCL10A | DIPS EF Coupler | 10" | 240PSI | 11.1 | 13.00 | 8.66 |
| DEFCL12A | DIPS EF Coupler | 12" | 240PSI | 13.2 | 15.35 | 9.06 |
| DEFCL14A | DIPS EF Coupler | 14" | 240PSI | 15.3 | 18.30 | 11.8 |
| DEFCL16A | DIPS EF Coupler | 16" | 240PSI | 17.4 | 20.86 | 12.6 |
| DEFCL18A | DIPS EF Coupler | 18" | 240PSI | 19.5 | 23.20 | 14.4 |
| DEFCL20A | DIPS EF Coupler | 20" | 240PSI | 21.6 | 26.50 | 15.7 |
| DEFCL24A | DIPS EF Coupler | 24" | 240PSI | 25.8 | 30.50 | 16.5 |
| DEFCL30A | DIPS EF Coupler | 30" | 240PSI | 32 | 37.40 | 18.5 |
Jilin Songjiang Smart Joint Co., Ltd was established in 1992.
We are specialised in fusion equipments and PE fittings. We can provide our customer with a complete solution for PE pipeline installation.
We are an ISO certified company. Fusion machine has CE certificate. HDPE fitting is going to be certified by DVGW Germany for both gas and water.
We have followed products:
Fusion Equipment
1: Hydraulic butt fusion machine up to 2000mm
2: Electro-fusion machine up to 800mm
3: Automatic butt fusion machine up to 315mm
4: Socket fusion kits up to 110mm
5: Other fusion tools
PE fitting
Spigot fitting up to 1200mm
Butt fusion reducer up to 1000mm
Butt fusion elbow up to 630mm
Butt fusion Tee up to 630mm
PE flange stub up to 1200mm
Electro-fusion fitting up to 800mm
Electro-fusion coupler up to 800mm
Electro-fusion tee, elbow, reducer up to 160mm
Electro-fusion saddle&Tapping
Sewage fitting for kitchen & Toliet
Irrigation fitting-PP compression fitting
