| Prod Model: |
EPC-20L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Material: |
PET |
| Making Method Of Parison: |
Stretch Blow |
| Automation: |
Non-Automatic |
| Computerized: |
Computerized |
| Certification: |
UL |
Product Description
EcoPura Engage in Blow Molding Machine, Stretch Blow Molding Machine, Bottle Blow Molding Machine, Blow Moulding Machine, Bottles Blowing Machine, Blow Molding Machinery, Bottle Making Machine, Blow Moulding Machinery, Blowing Machine, Moulding Machine, Molding Machine, Blow Bottle Machine, plastic machine, blow machine

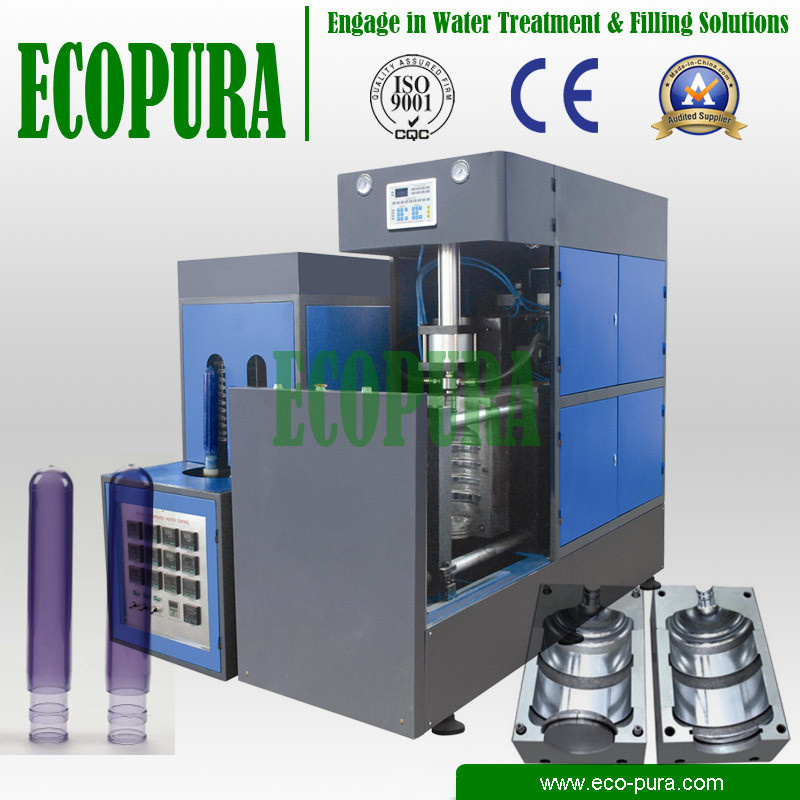

EPC-20L Bottle Blow Molding Machine for 3Gallon to 6Gallon PET bottle
Specification:

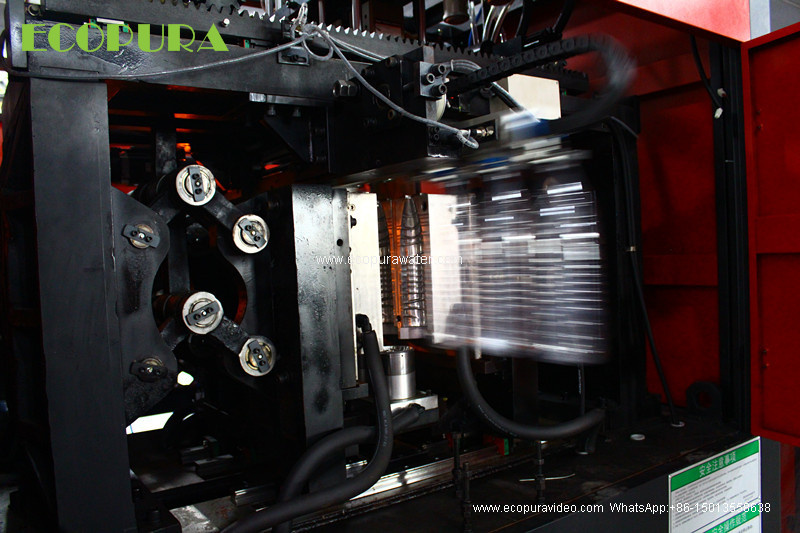

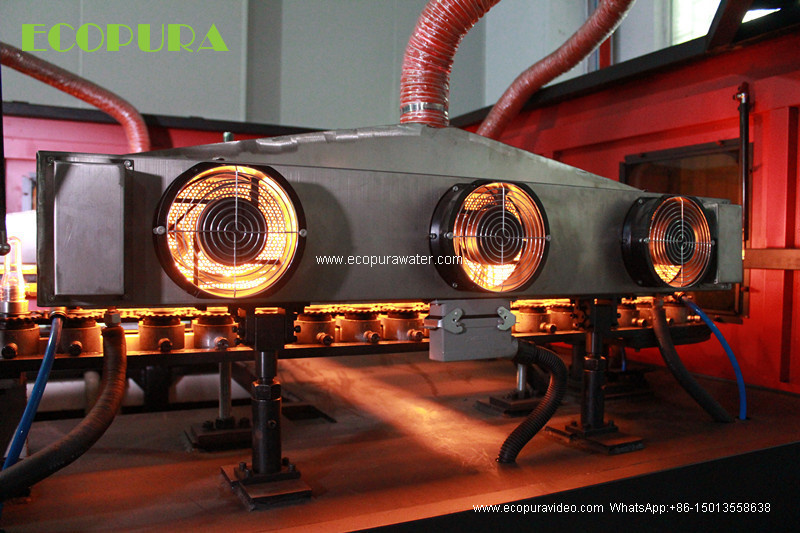

1) Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.

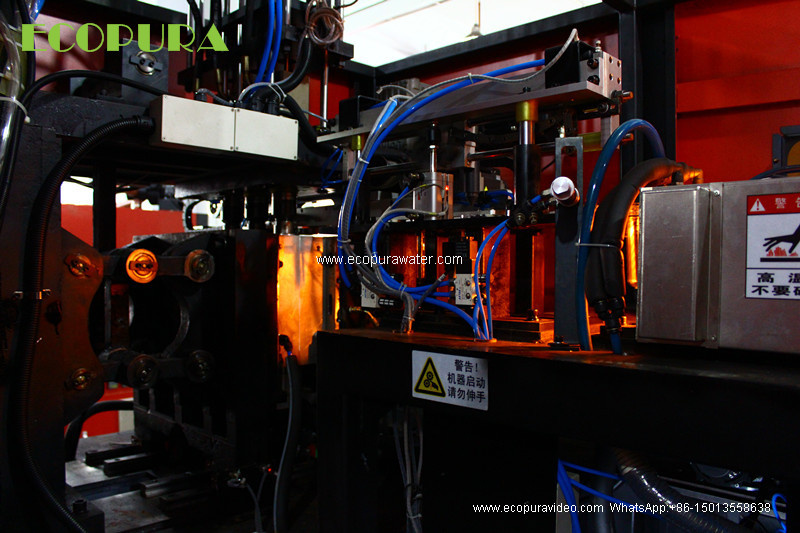

2) The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3) The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4) The machine can be operated in the step-by-step mode and the semi- auto mode.
5) The machine is small with low investment, easy and safe to operate by one person.
| TYPE | ITEM | MEASUREMENT | EPC-20 |
END PRODUCT
| Material | ------ | PET |
| Volume | L | 10-25(1-cavity) |
| Theoretical output | pcs/h | 90 |
| Max.length | mm | 460 |
| Max.diameter | mm | 200 |
| MOULD PLATE | Max.mould plate dimension(L*H) | mm | 420*500 |
| Max.mould thickness | mm | 40 |
| Clamping force | KN | 330 |
| Mould opening stroke(Adjustable) | mm | 33 |
| AUXILIARY | High pressure compressor | M3/Mpa KW | >=1.2/3.0*1sets 15 |
| Air cooling dryer | M3/Mpa KW | >=1.0/3.0*1set 0.375 |
| Precision air filters | M3/Mpa | >=1.0/3.0*2pcs |
| Dimension(L*W*H) | M | 2.2*1.9*2.2 |
| MAIN MACHINE ELECTRICITY | Power | KW | 40 |
| Voltage/Frequency | V/HZ | 220-380/50-60 |
| MACHINE SIZE AND WEIGHT | Blow unit dimension(L*W*H) | M | 2.10*0.77*1.96 |
| Blow unit weight | T | 1 |
| Pre-heater weight | T | 0.38 |
| Pre-heater dimension(L*W*H) | M | 2.37*0.68*1.65 |
Shenzhen EcoPura Water Equipment Co., Ltd was founded in 2007, specialized in Water Treatment/Dispenser, bottled water/beverage filling line, Blow molding machine & packaging solutions over 18 years experiences, In China, ECOPURA commands more than 60% of Water and Beverage Process Machine market. Covering all segments. Highly acclaimed for their user-friendly, tailor-made designs and customized solutions for various customer needs
As a leading manufacturer, we can supply the following solutions:
1, Water Treatment Solutions based on different raw water quality
Municipal or Mountain water treatment / Brackish Water Purification / Sea water desalting
2, Automatic Bottled Water Production Line
Accuracy filling, position due to PLC application and photoelectricity technology, neck spraying nozzle for cleaning completely, avoid the 2ND pollute. Adjusting and setting data make machine suitable to various bottles.
A)PET 250 ml - 2000ml Bottled Filling Line
B)PET/PP 3 liters - 6 liters Bottled Filling Line
C)5Gallon Bottled Filling Line
3, Blow molding machine with mould design and Post packaging machinery to be fully synchronized with the bottled water filling line.
4, High Quality Water Dispenser with 15years OEM experience for abroad client demand
With the support of advanced technique, mature experienced engineers and customer-oriented after sales service, So far, ECOPURA has close cooperation with hundreds of customers all over the world from USA, Canada, Russia, Mexico, Brazil, Panama, Sudan, Nigeria, Angola, Iraq, Jordan, Indonesia and so on. We won enormous credit by carry out business and confirmation based on carefully understood acts and detailed requirement from every customer.
Providing ' Quality Products, Customized services, Competitive Prices and Timely Delivery', . We are now looking forward to even more cooperation with overseas customers based on mutual benefits, Please feel free to contact us if you are interested in our products, Sincerely welcome to visit our company!
