| Prod Model: |
EPC-20L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Raw Material: |
PET |
| Making Method Of Parison: |
Stretch Blow |
| Automation: |
Non-Automatic |
| Computerized: |
Computerized |
| Certification: |
GMP |
Product Description

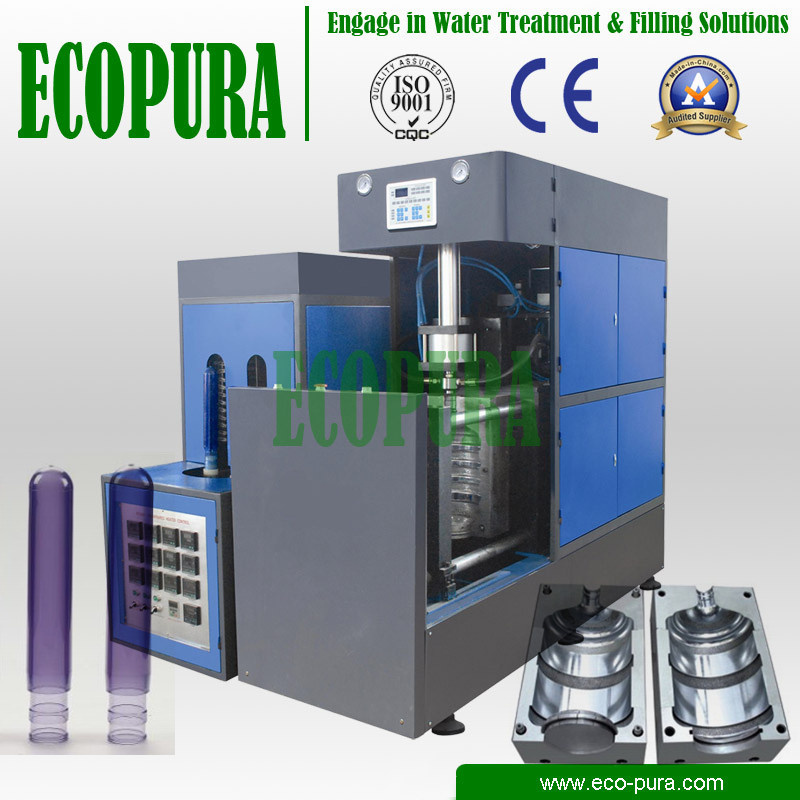

EPC-20L Bottle Blow Molding Machine for 3Gallon to 6Gallon PET bottle
Specification:

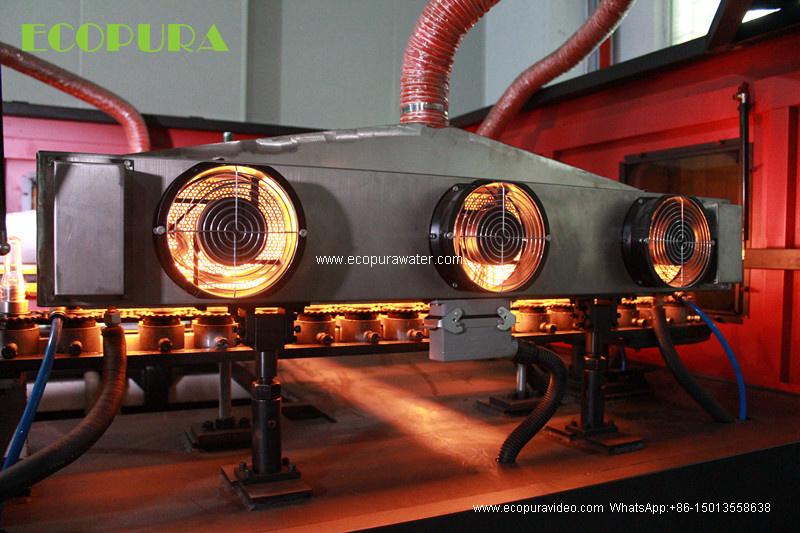

1) Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
2) The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3) The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4) The machine can be operated in the step-by-step mode and the semi- auto mode.
5) The machine is small with low investment, easy and safe to operate by one person.
| TYPE | ITEM | MEASUREMENT | EPC-20 |
END PRODUCT
| Material | ------ | PET |
| Volume | L | 10-25(1-cavity) |
| Theoretical output | pcs/h | 90 |
| Max.length | mm | 460 |
| Max.diameter | mm | 200 |
| MOULD PLATE | Max.mould plate dimension(L*H) | mm | 420*500 |
| Max.mould thickness | mm | 40 |
| Clamping force | KN | 330 |
| Mould opening stroke(Adjustable) | mm | 33 |
| AUXILIARY | High pressure compressor | M3/Mpa KW | >=1.2/3.0*1sets 15 |
| Air cooling dryer | M3/Mpa KW | >=1.0/3.0*1set 0.375 |
| Precision air filters | M3/Mpa | >=1.0/3.0*2pcs |
| Dimension(L*W*H) | M | 2.2*1.9*2.2 |
| MAIN MACHINE ELECTRICITY | Power | KW | 40 |
| Voltage/Frequency | V/HZ | 220-380/50-60 |
| MACHINE SIZE AND WEIGHT | Blow unit dimension(L*W*H) | M | 2.10*0.77*1.96 |
| Blow unit weight | T | 1 |
| Pre-heater weight | T | 0.38 |
| Pre-heater dimension(L*W*H) | M | 2.37*0.68*1.65 |
