Plastic Butterfly Valve/ CPVC Butterfly Valve/PVC Handle Butterfly Valve& Industrial /Water Butterfly Valve by (ANSI JIS DIN)
| Price: |
US $ 15/Piece |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
RPV121 |
| Color: |
Dark Grey |
| Standard: |
DIN,ANSI,JIS |
| Actuator Mounting: |
Available |
| Connection Form: |
Wafer |
| Structure: |
Centre Sealing |
| Seal Form: |
Force Sealed |
| Working Temperature: |
Normal Temperature (',-40??C
|
| Application: |
Water Usage |
| Work Pressure: |
Pn10 |
| Material Of Seal Surface: |
EPDM |
| Valve Body: |
Plastic Injection Moulding |
Product Description

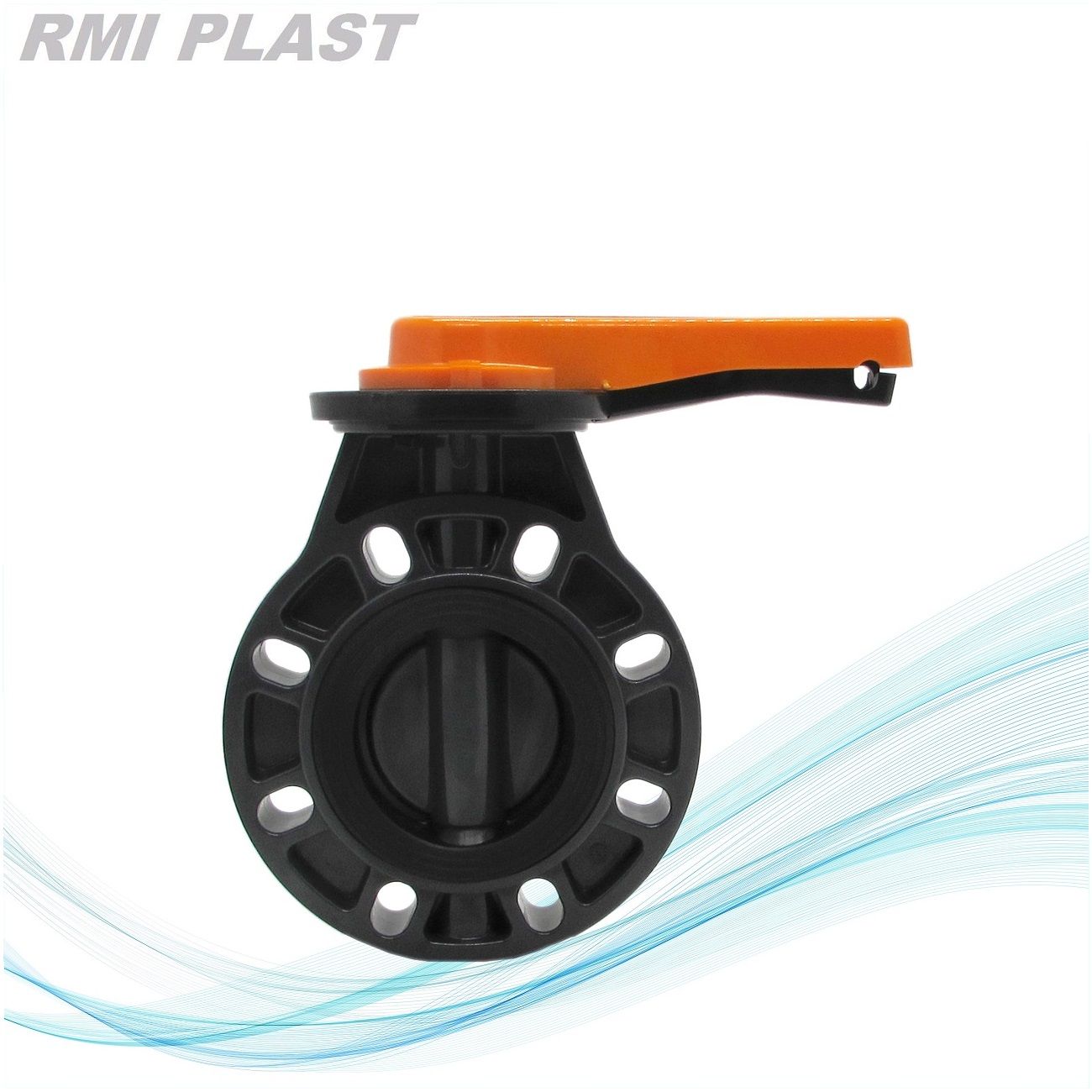

Product Name:manual handle PVC butterfly valvePV121B is a new type butterfly valve developed for water supply and water treatment application.
Basic specifi cationSize:DN50~DN200 (2 inch ~ 8 inch)
Body Material:PVC-U;PP
Seal material:EPDM
Wafer connection:DIN PN10; ANSI CL150; JIS 10K
Design pressure:1.0Mpa(PN10 bar)
Feature of valveDisc and seat that touch medium are made from plastic and rubber.
Multi-hole fit for different standards connection
Valve is easy to assemble and disassemble to change damaged parts
Dry-stem are optional
Electric and pneumatic actuator mounting are available

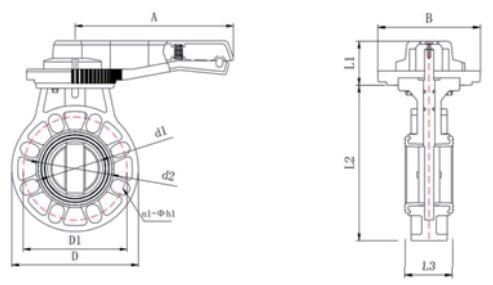

| Norminal Size | D1 | d1 | d2 | D | n1 | Φh1 | A | B | L1 | L2 | L3 |
| DN(Inch) | DIN | ANSI | JIS |
| DN50(2") | 125 | 120 | 120 | 50 | 85 | 162 | 4 | 18 | 210 | 116 | 35 | 205 | 44 |
| DN65(2-1/2") | 145 | 140 | 140 | 65 | 100 | 179 | 4 | 18 | 210 | 116 | 35 | 218 | 46 |
| DN80(3") | 160 | 152 | 150 | 80 | 110 | 195 | 8 | 18 | 220 | 136 | 35 | 242 | 57 |
| DN100(4") | 180 | 190 | 175 | 100 | 135 | 225 | 8 | 18 | 220 | 136 | 35 | 273 | 60 |
| DN125(5") | 210 | 216 | 210 | 125 | 165 | 255 | 8 | 18 | 273 | 150 | 46 | 303 | 66 |
| DN150(6") | 240 | 241 | 240 | 150 | 190 | 280 | 8 | 22 | 273 | 150 | 46 | 330 | 72 |
Ningbo RMI Plastic Co., Ltd is a professional manufacturer and supplier of plastic piping systems and piping materials, provide professional technical support and supply high quality piping materials for industrial anticorrosive application, water treatment system, irrigation systems, etc.
Our factory is located in city of Ningbo, Zhejiang Province of China, plant covers an area of 68000 m2 with ISO9001, ISO14001, ISO18001 verified. We get 15 professional engineers and 100 experienced workers. Which support our quality improving, technical innovation and service satisfied.
RMI products cover full range of plastic valves, pipes, fittings and accessories by different materials of PVDF, PVC, PVC-C, PP, PP-H, PP-GF, FRP, EPDM, VITON, PTFE. Over 30 kinds different valves include diaphragm valve, ball valve, check valve, butterfly valve, foot valve, globe valve, etc. Size from 1/2" up to 32", following standard of DIN, JIS, ANSI, CNS, ISO. 8 different materials of pipes and fittings diameter from 16mm to 600mm.
With high quality products and professional technical support, we serve more than 200 customers in different industrials and areas all around the world, and win good reputation. Especially in steel industrial, chlor alkali industry, metallurgical industry, papermaking industry, pharmaceutical factory, electroplating factory, mining plant, fish farm, etc.
We are continual working for the target of quality improving, technical innovation and service satisfied. Aim to provide customer durable and efficient products to ensure the piping system working safer and longer.
