| Prod Model: |
RPV132 |
| Color: |
Dark Grey |
| Flange Standard: |
DIN Pn10; JIS10k; ANSI Cl150 |
| Seal Material: |
EPDM |
| Seat Material: |
PTFE |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Flexible Ball Valve |
| Type: |
Flexible Ball Valve |
| Application: |
Water Treatment Usage |
| Material: |
UPVC |
| Driving Mode: |
Hand Lever, Gear Operate |
| Nominal Pressure: |
Pn10 150psi |
| Function: |
Shutoff Valve |
Product Description

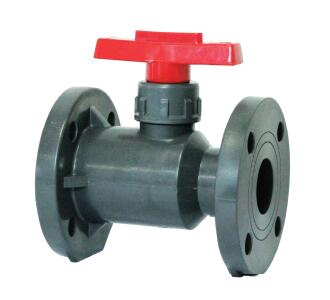

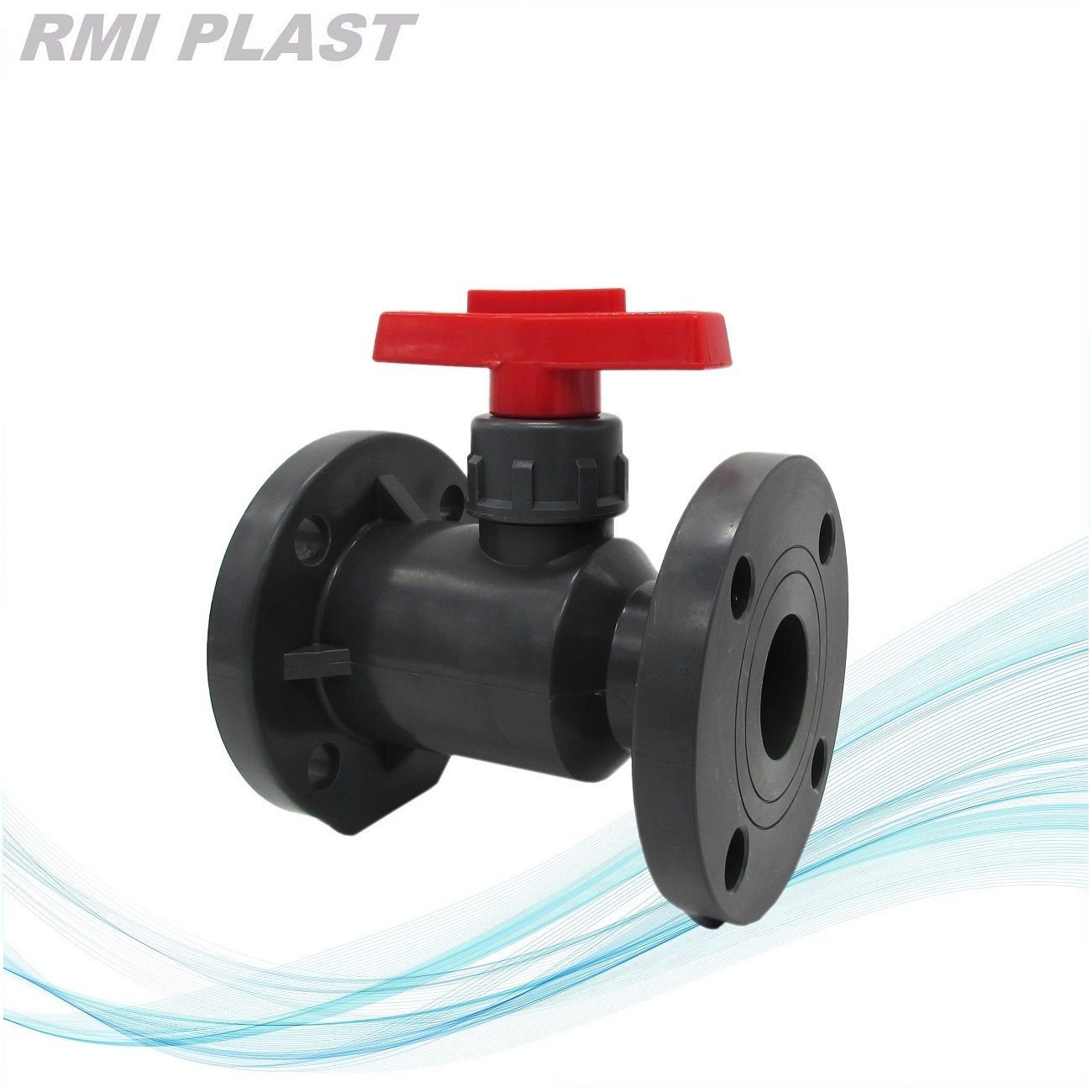

Product name: UPVC ball valve flange end ANSI JIS DINPV132 is an integral type ball valve, one piece body make valve stronger, PTFE stem packing make valve sealing better. flange fit for different standards.
Basic specifi cationSize:DN15~DN150 (1/2 inch ~ 6 inch)
Flange connection:DIN PN10; ANSI CL150; JIS10K
Body Material:PVC-U;PVC-C;PVDF;PP-GF;PP-H
Seal material:EPDM;FPM
Seat Material:PTFE
Design pressure:1.0Mpa(PN10 bar)
Feature of valveAll the parts that will touch medium is made from thermo plastic.
One piece injection body lower the leaking risk.
Strong body design extend the service life.
PTFE stem packing lower the operate torque and leaking risk.
Flange end fi t for different standards connection

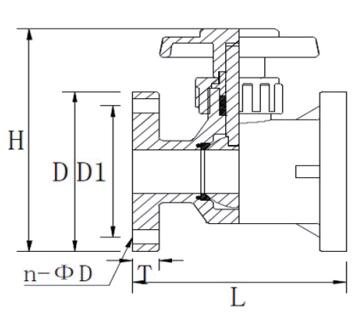

| Norminal Size | DIN PN10 | ANSI CL150 | JIS 10K | D | L | H | T |
| DN(Inch) | D1 | n | Φd1 | D1 | n | Φd1 | D1 | n | Φd1 |
| 15(1/2") | 65 | 4 | 14 | 60.5 | 4 | 15.8 | 70 | 4 | 15 | 105 | 120 | 150 | 16 |
| 20(3/4") | 75 | 4 | 14 | 70 | 4 | 15.8 | 75 | 4 | 15 | 105 | 120 | 150 | 16 |
| 25(1") | 85 | 4 | 14 | 79.5 | 4 | 15.8 | 90 | 4 | 19 | 115 | 145 | 160 | 18 |
| 32(1-1/4") | 100 | 4 | 18 | 89 | 4 | 15.8 | 100 | 4 | 19 | 135 | 150 | 195 | 19 |
| 40(1-1/2") | 110 | 4 | 18 | 98.5 | 4 | 15.8 | 105 | 4 | 19 | 145 | 168 | 200 | 19 |
| 50(2") | 125 | 4 | 18 | 120.5 | 4 | 19 | 120 | 4 | 19 | 160 | 195 | 220 | 20 |
| 65(2-1/2") | 145 | 4 | 18 | 139.5 | 4 | 19 | 140 | 4 | 19 | 180 | 225 | 250 | 20 |
| 80(3") | 160 | 8 | 18 | 152.5 | 4 | 19 | 150 | 8 | 19 | 195 | 247 | 270 | 22 |
| 100(4") | 180 | 8 | 18 | 190.5 | 8 | 19 | 175 | 8 | 19 | 220 | 283 | 305 | 24 |
| 125(5") | 210 | 8 | 18 | 216.5 | 8 | 22 | 210 | 8 | 23 | 245 | 365 | 340 | 30 |
| 150(6") | 240 | 8 | 22 | 241.5 | 8 | 22 | 240 | 8 | 23 | 280 | 408 | 360 | 30 |
Ningbo RMI Plastic Co., Ltd is a professional manufacturer and supplier of plastic piping systems and piping materials, provide professional technical support and supply high quality piping materials for industrial anticorrosive application, water treatment system, irrigation systems, etc.
Our factory is located in city of Ningbo, Zhejiang Province of China, plant covers an area of 68000 m2 with ISO9001, ISO14001, ISO18001 verified. We get 15 professional engineers and 100 experienced workers. Which support our quality improving, technical innovation and service satisfied.

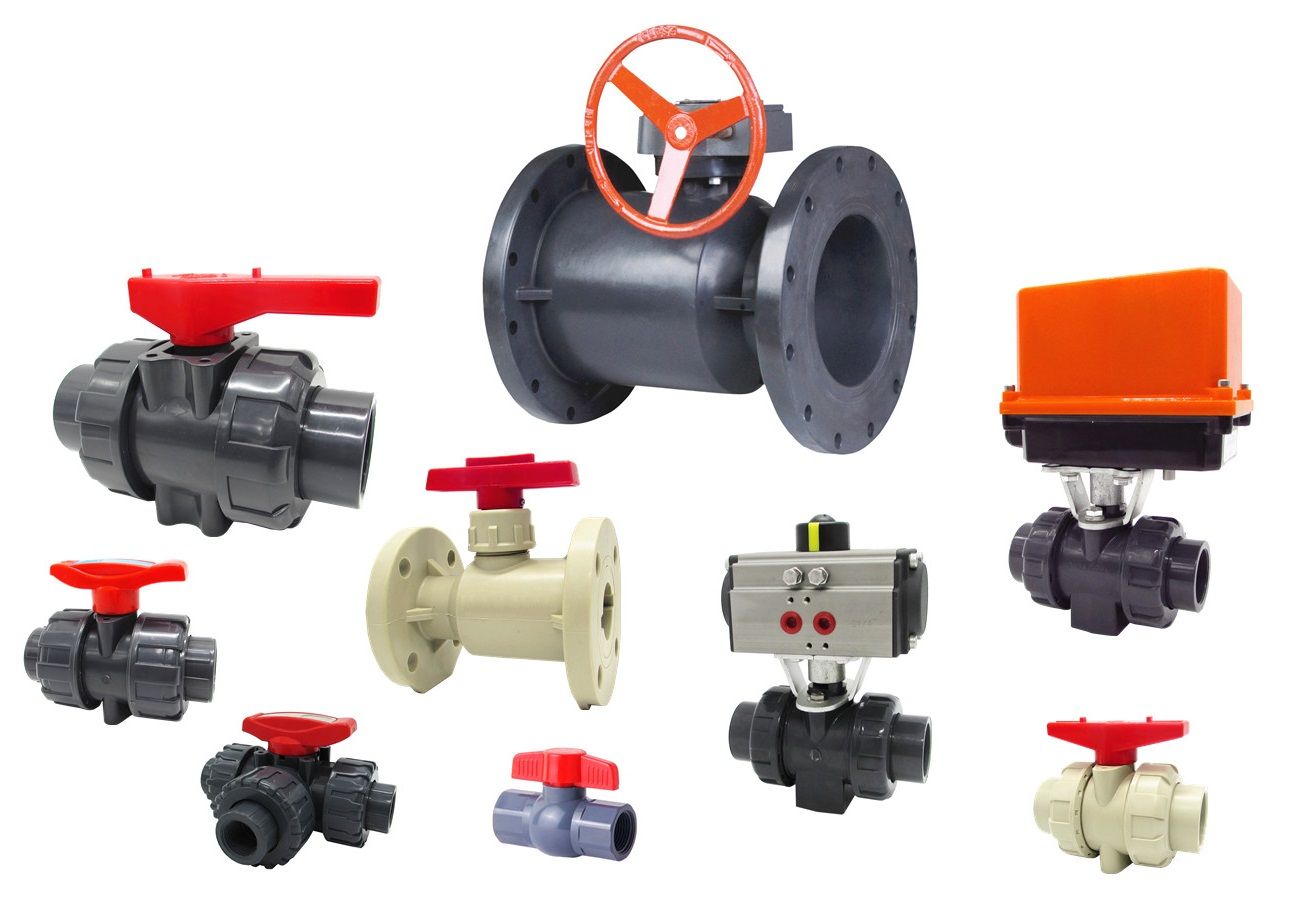

RMI products cover full range of plastic valves, pipes, fittings and accessories by different materials of PVDF, PVC, PVC-C, PP, PP-H, PP-GF, FRP, EPDM, VITON, PTFE. Over 30 kinds different valves include diaphragm valve, ball valve, check valve, butterfly valve, foot valve, globe valve, etc. Size from 1/2" up to 32", following standard of DIN, JIS, ANSI, CNS, ISO. 8 different materials of pipes and fittings diameter from 16mm to 600mm.
With high quality products and professional technical support, we serve more than 200 customers in different industrials and areas all around the world, and win good reputation. Especially in steel industrial, chlor alkali industry, metallurgical industry, papermaking industry, pharmaceutical factory, electroplating factory, mining plant, fish farm, etc.
We are continual working for the target of quality improving, technical innovation and service satisfied. Aim to provide customer durable and efficient products to ensure the piping system working safer and longer.
