| Prod Model: |
Y20, Y24, YT24, YT28, YT29A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Bestlink |
| Certificate: |
CE |
| Drilling Method: |
Dry Drilling |
| Place Of Origin: |
Fujian, China |
| Shank: |
22*108mm or 25*108mm |
| Certification: |
CE |
| Application: |
Stone Industry |
| Layout: |
Vertical |
| Precision: |
Normal Precision |
| Automation: |
Manual |
| Control: |
Artificial |
Product Description

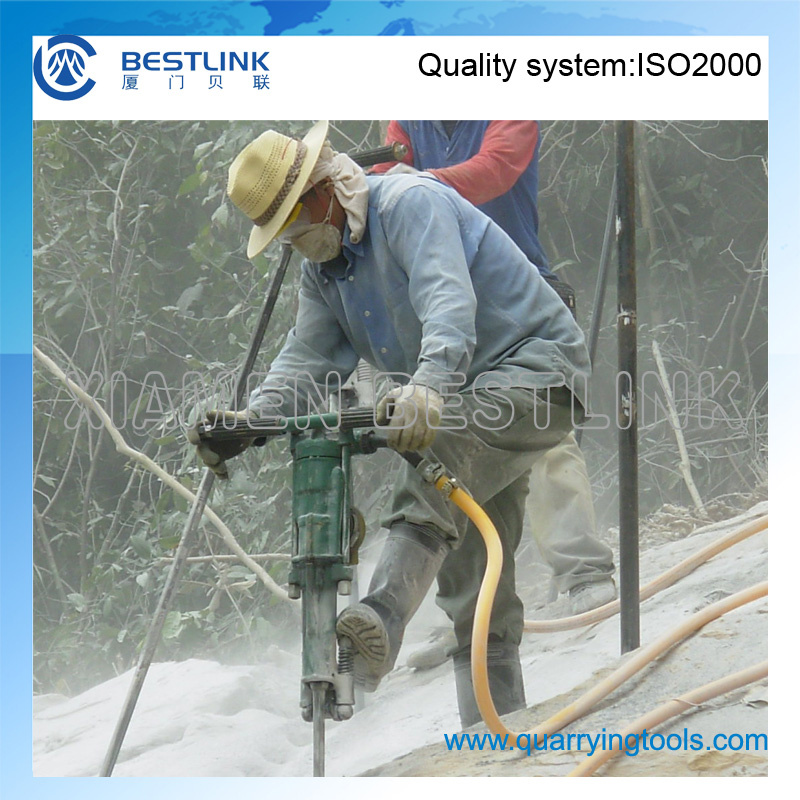

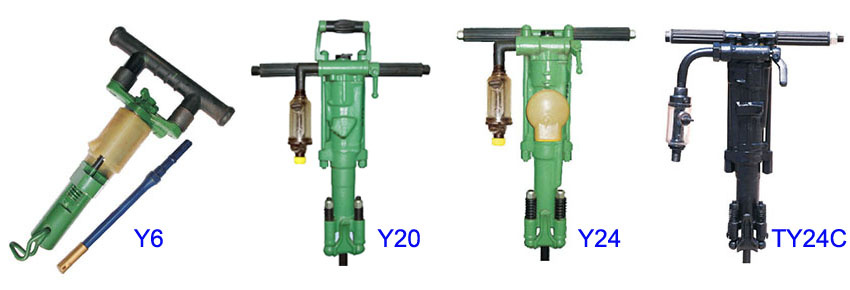

For hand-held rock drills, we have Y6, Y20, Y19A Y24 and Y26. Among them, the Y6, Y20 and Y24 are widely used in quarrying or construction industry.
Model Y6 hand-held rock drill is a light-duty tools designed for quarrying and drilling operation. You may expect satisfaction results with adoption of this drill either in making 20mm holes in rock and buildings or in the secondary blasting. It has characteristic of low weight, reasonable structure, handy use and little air consumption.

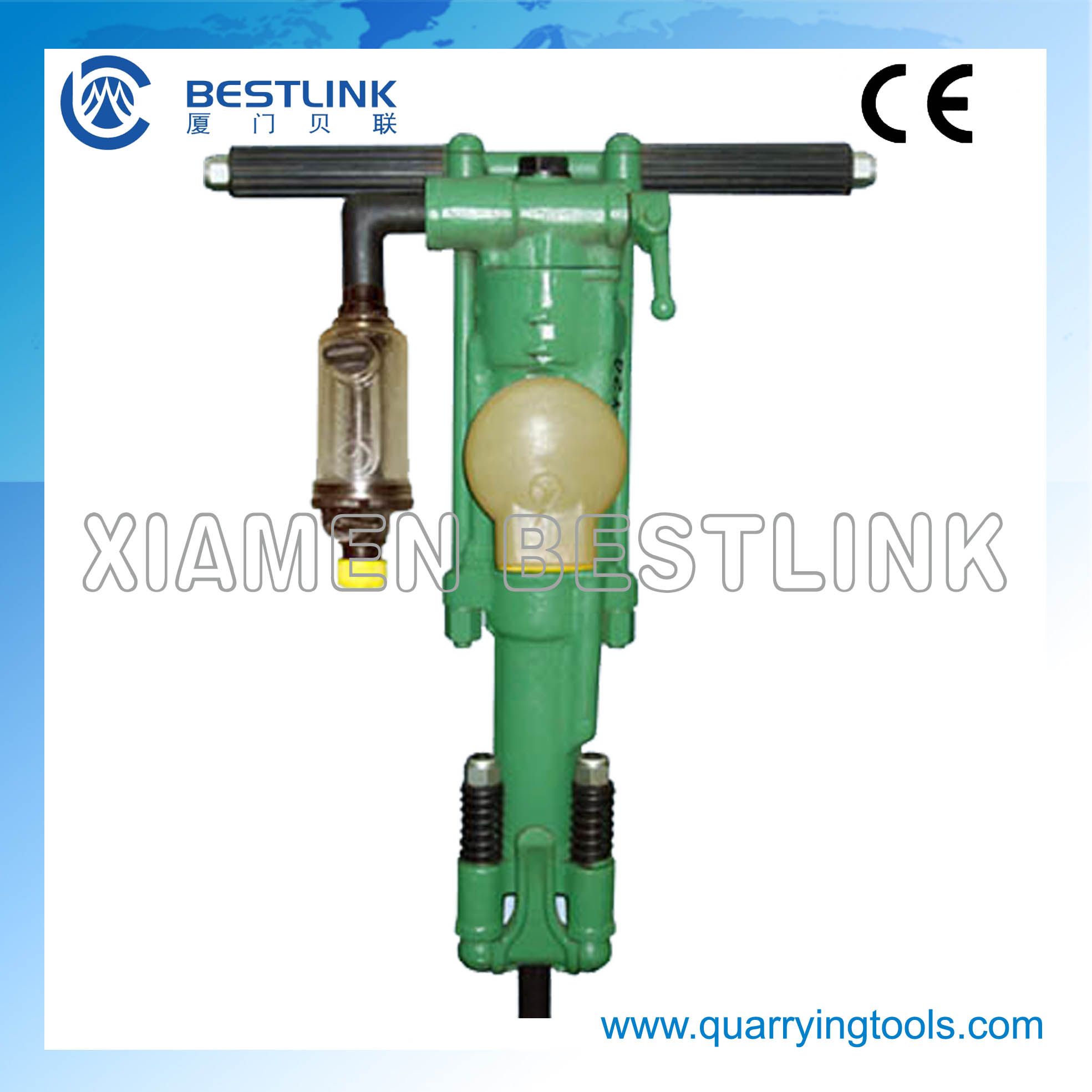

Model Y20 and Y24 Hand-held Rock Drill is intended for drilling downward and inclined blast holes in medium hard and herd rock (f=8~18):？The rock drill is mainly used small quarries. Mines for constructing in mountain areas, water conservancy works in capital construction, also for secondary blasting in large mines and other projects.

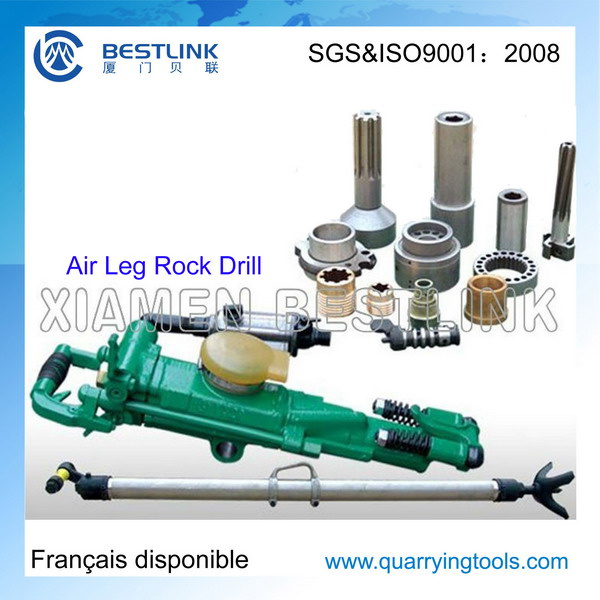

There are also air-leg rock drill machines for horizontal drilling.
Our air-leg rock drills have following features:
1. Fit for wet drilling in medium-hard or hard rock
2. Grouped control mechanism, quick to start up, with "air on, water on, air off, water off" machanism, convenient to handle and easy to maintain and repair.
3. Energy-saving and efficient, long service life of parts which are highly interchangeable and reliable performance.
4. YT28 differs from similar products particularly in its high efficiency strong flushing and powerful torque.
Our Enterprise emphasizes "Technology Improve Quality, Well Quality Occupy Market".
By this point, we have got good reputation from both domestic and foreign customers.
We peruse actively the new norms, high efficiency, simple operate products to achieve
The break through of the best quality for our customers, and then develop and enlarge market. Now our customers have throughout Middle-East, Africa, South-America and
Other countries and areas.Technical Parameters
Model |
| Y6 | Y20 | Y19A | Y24 | Y26 |
Weight | kg | 6 | 18 | 19 | 24 | 26 |
Air consumption | L/s | ≤9.5L/s | 25 | 43 | ≤50 | ≤47 |
Length | mm | 426 | 605 | 600 | 604 | 650 |
Shank | mm | 15*88 | 22*108 | 22*108 | 22*108 | 22(25)*108 |
Bore Dia. | mm | 20 | 30-42 | 30-42 | 30-42 | 30-42 |
Drill depth | m | 0.5 | 3 | 5 | 5 | 5 |
Impact rate | Hz | 51 | 34 | 35 | 30 | 27 |
Hose connection | mm | 13 | 16 or 19 | 19 | 19 | 19 |
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.
Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.
From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.
In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.
Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.
We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
