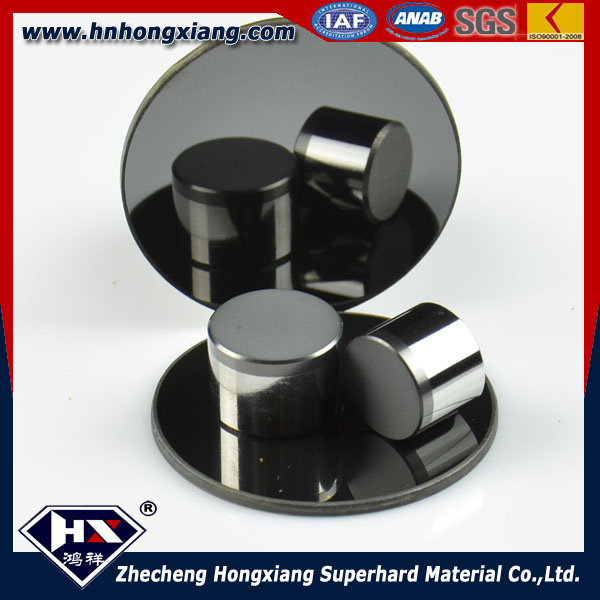

Polycrystalline Diamond Bit for PDC Drilling China Made

Prod Model:	1908
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	PDC for Oil Drilling Industry
Certification:	ISO9001
Factory:	Hongxiang
Address:	Shangqiu ,China
History:	26 Years
Type:	Cutter
Material:	Polycrystalline Diamond
Work Type:	Gear Cutting

Product Description

Main products:
1. Synthetic diamond and diamond powder
2. In 2000, creative product: Diamond drill bit, diamond wheel, diamond finger bit etc glass tools. The product is fit for kinds of glass machine, barristerial machine and numerical control machine etc.
3. In 2008, research and development product, Mainly include diamond saw blade, diamond core bit, diamond abrasive fickert etc stone and ceramices tools.
4. In 2011, self-develop PCD, PDC, etc oil and cutting tools products, which mainly used for oil drilling, coal drilling and geological exploration etc.

Advantages
1) With feature of high working efficiency, smooth surface
2) Advanced technics and strict process control
4) Long lifespan and stable performance
5) Competitive price and superior quality
6) Excellent service
Application:
1. For oil drilling
2. For well drilling
3. For geological drilling
4. For coal drilling
5. For hard material drilling

Established in 1990, Zhecheng Hongxiang Superhard Material Co., Ltd
Is a specialized enterprise that engages in the research, production and
Sales of various kinds of synthetic diamond and diamond tool, glass tools, which keep ahead in Chinese market. Our target: Advanced technology is the basis of high-quality products.

All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information

Product Number	Diameter (D)(mm)	Height (T) (mm)	Diamond Thickness (t) (mm)	Diamond  Chamfer (mm)
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10

Main products:
1.synthetic diamond and diamond powder
2.In 2000,creative product:diamond drill bit,diamond wheel,diamond finger bit etc glass tools.The product is fit for kinds of glass machine,bilaterial machine and numerical control machine etc.
3.In 2008,research and development product,Mainly include diamond saw blade ,diamond core bit,diamond abrasive fickert etc stone and ceramices tools.
4.In 2011,self-develop PCD ,PDC,etc oil and cutting tools products,which mainly used for oil drilling,coal drilling and geological exploration etc.
