| Prod Model: |
HX - PCD blanks |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
Product Description
Hardness: 5000-8000HV
Overall sintered
Laser beam cutting
Cobalt-based material
1. Diamond polymer
2. With the high temperature and the ultrahigh pressure sintering
3. Made of Diamond and bonding agent
4. High heat resistance and high thermal stability
Shape: Triangle, square, rectangle, six prismatic, cylindrical,
Circular arc form at both ends
1. PCD for natural diamond: Size 10*0.75mm, 10*1mm

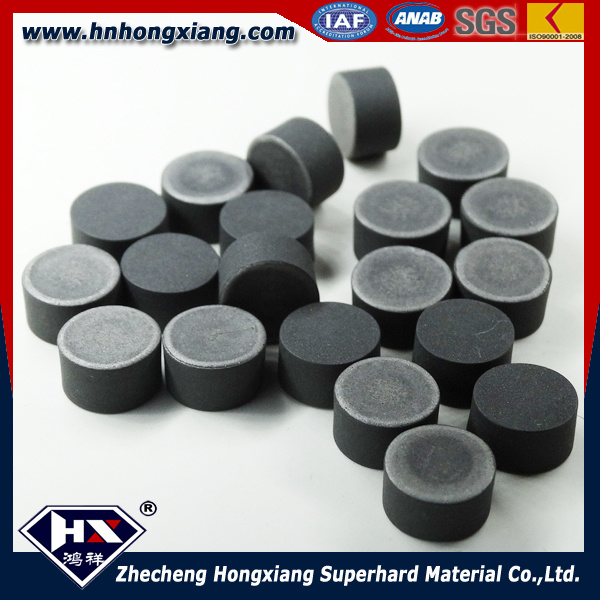

2. PCD for making wire drawing dies: Size D6, D12, D15, D18, D21, D24, D27, D30, D31, D33, etc,
We also can making the size as customer need.
3. Polycrystalline diamond compact PDC: Size 1308, 1313, 1613, 1913, etc.
4. PCD cutting tools: Diameter25mm, 30mm, etc
| ADDMA Code | Product NO. | Product Dimensions | Average Grain Size(um) | Max.Die4
Recommended
(mm) |
| Φd | ΦD | T | 1 | 2 | 5 | 10 | 25 | 50 |
| D6 | WKH2510 | 2.5±0.2 | | 1.0+0.2 | √ | √ | √ | | √ | - | 0.4 |
| D12 | WKH3215 | 3.2±0.2 | | 1.5+0.2 | √ | √ | √ | √ | √ | - | 1.0 |
| D15 | WKH5225 | 5.2±0.2 | | 2.5+0.2 | - | √ | √ | √ | √ | √ | 1.5 |
| D18 | WKH5235 | 5.2±0.2 | | 3.5+0.2 | - | √ | √ | √ | √ | √ | 2.0 |
| |
| D6 | WKR2510 | 2.5±0.2 | | 1.0+0.2 | √ | √ | √ | √ | √ | - | 0.4 |
| D6 | WKR3110 | 3.1±0.2 | | 1.0+0.2 | √ | √ | √ | √ | √ | - | 0.5 |
| D12 | WKR3115 | 3.1±0.2 | | 1.5+0.2 | √ | √ | √ | √ | √ | - | 1.0 |
| D15 | WKR5225 | 5.2±0.2 | | 2.5+0.2 | - | √ | √ | √ | √ | √ | 1.5 |
| D18 | WKR5235 | 5.2±0.2 | | 3.5+0.2 | - | √ | √ | √ | √ | √ | 2.0 |
| D21 | WKR7040 | 7.0±0.2 | | 4.0+0.2 | - | √ | √ | √ | √ | √ | 3.0 |
| D24 | WKR9853 | 9.8±0.2 | | 5.3+2 | - | √ | √ | √ | √ | √ | 4.0 |
| |
| D12 | WKY4015 | 4.0±0.2 | 8.12±0.13 | 1.5+0.2 | - | √ | √ | √ | √ | √ | 1.0 |
| D15 | WKY4023 | 4.0±0.2 | 8.12±0.13 | 2.3+0.2 | - | √ | √ | √ | √ | √ | 1.8 |
| D18 | WKY4029 | 4.0±0.2 | 8.12±0.13 | 2.9+0.2 | - | √ | √ | √ | √ | √ | 2.3 |
| D21 | WKY7040 | 7.0±0.2 | 13.65±0.13 | 4.0+0.2 | - | - | √ | √ | √ | √ | 3.5 |
| D24 | WKY7053 | 7.0±0.2 | 13.65±0.13 | 5.2+0.2 | - | - | √ | √ | √ | √ | 4.6 |
| D27 | WKY12987 | 12.9±0.2 | 24.13±0.25 | 8.7±0.25 | - | - | - | √ | √ | √ | 5.8 |
| D30 | WKY129120 | 12.9±0.2 | 24.13±0.25 | 12.0±0.25 | - | - | - | √ | √ | √ | 7.6 |
| D31 | WKY152120 | 15.2±0.2 | 26.6±0.25 | 12.0±0.25 | - | - | - | - | √ | √ | 9.0 |
| D33 | WKY152150 | 15.2±0.2 | 26.6±0.25 | 15.0±0.50 | - | - | - | - | √ | √ | 10.0 |
| D33 | WKY18150 | 18.5±0.2 | 29.0±0.25 | 15.0±0.50 | - | - | - | - | √ | √ | 11.0 |
| D33 | WKY18180 | 18.5±0.2 | 29.0±0.25 | 18.0±0.50 | - | - | - | - | √ | √ | 12.0 |
Zhecheng Hongxiang Superhard Material CO.,LTD was founded in 1990 which in affiliated with Wanke Group. The company is a high-tech enterprise with modern management experience and strong research and development ability. Besides, it has won many national and local awards and obtained several invention patents.Constant innovation and good faith are our foothold.Our products has exported to United Kingdom France , Germany, Spain, Italy, USA, Canada, Brazil, Japan, Korea, Thailand, Vietnam, India, Egypt, Iran, Turkey etc 52 countries and participated in manyDomestic and international exhibitions.
Main products:1.synthetic diamond and diamond powder2.In 2000,creative product:diamond drill bit,diamond wheel,diamond finger bit etc glass tools.The product is fit for kinds of glass machine,bilaterial machine and numerical control machine etc3.In 2008,research and development product,Mainly include diamond saw blade ,diamond core bit,diamond abrasive fickert etc stone and ceramices tools.4.In 2011,selfdevelop PCD ,PDC,etc oil and cutting tools products,which mainly used for oil drilling,coal drilling and geological exploration etc.
Contact :
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.

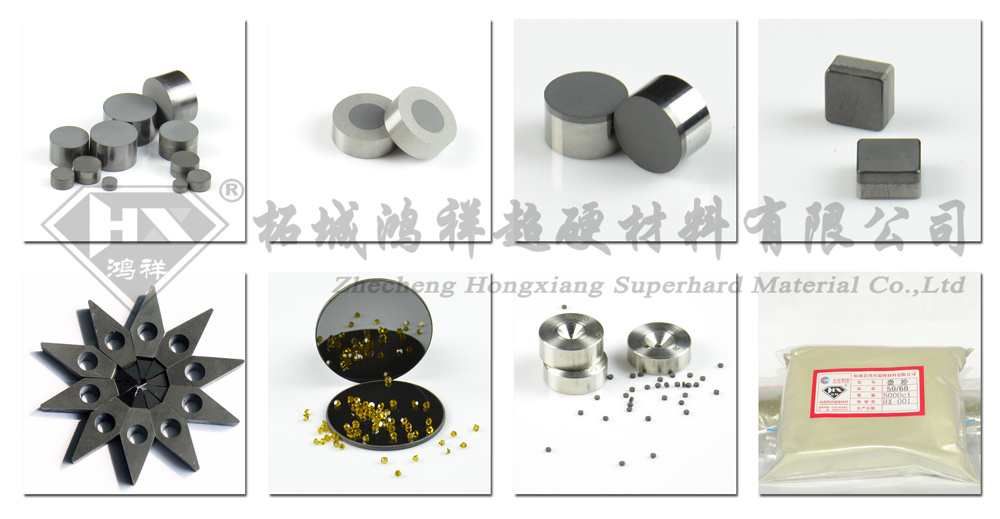

Our products include,
Synthetic diamond
Diamond powder
Diamond saw blade
Diamond drill bit
Poly crystalline Diamond composite ( PDC )
PCD wire drawing dies
Diamond glass tools
Diamond polishing pad
Diamond cutting tools
Diamond grinding tools
Diamond wheels
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order
3. Advanced production equipment
4. Own design team, can help you custom the packaging
5. Own provincial engineering technology center
6. D&B and ISO9001 Certificates

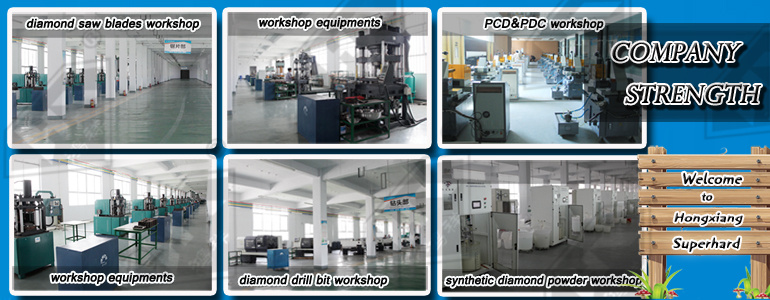

We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
