| Prod Model: |
DFL-200S |
| Weight: |
6650kg |
Product Description

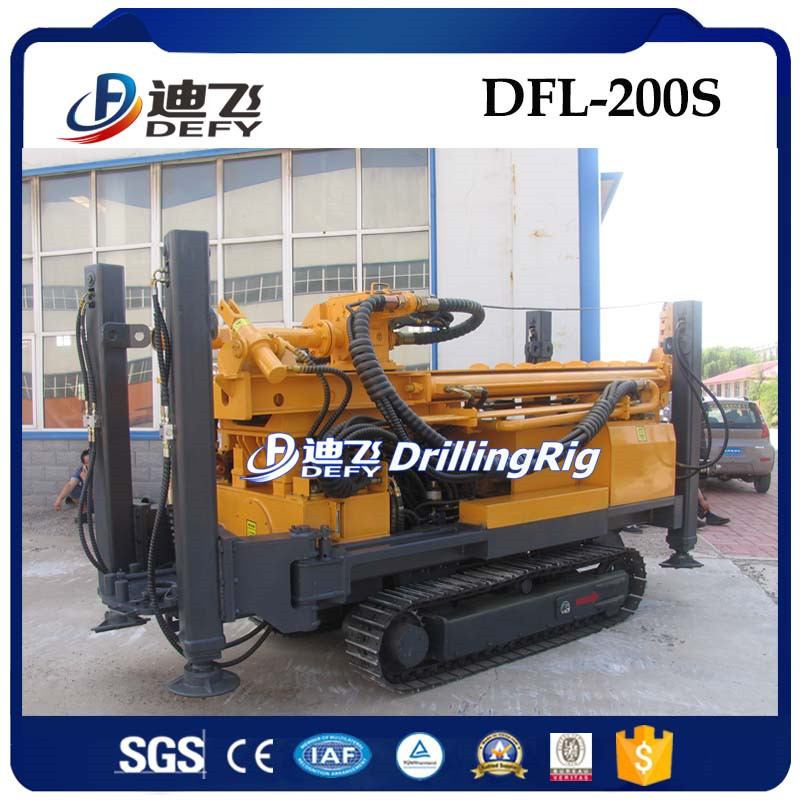

Portable DFL-200S hydraulic DTH hammer bits simple drilling machine
Our hydraulic water well drilling machine is a high efficiency top drive , multifunctional full hydraulic drilling rig, with advantages of advanced technology, ease operation, high efficiency, reliability and durability, widely applicable to drilling water wells, test wells, dewatering well, relief well, geothermal air conditioning hole, coal bed methane, natural gas, oil exploration and other projects, the rig applicable to various stratum by air DTH drilling, has high drilling speed for rock with Platts hardness of f = 4-20 .
Main features
1.full hydraulic control, Convenient and flexible:
The drilling speed, torque, propeller shaft pressure, anti-axial compression, forward speed, and lifting speed are adjustable to meet different drilling conditions and different construction technology needs.
2.Top drive rotary propulsion
Various drilling processes are available on this rig, such as: DTH drilling, through-type air reverse circulation drilling, gas lift reverse circulation drilling, cutting drilling, tri-cone drilling, drilling with simultaneously casing, and core drilling under development.
mud pump, foam pumps, generators can be added according to user needs, Drill also comes with a variety of winch as standard configuration.
3. Multifunctional Drilling
Equipped with cab which meets FOPS / TOPS requirement, using large area glass design, wider field of vision; multi-dimensional wind-type air-conditioning, so that the cab has a master operating experience.
4. High efficiency
Since the full hydraulic top-drive and rotary propulsion upgrade, adapted to the various drilling techniques and a variety of drilling tools, convenient and flexible manipulation, fast drilling speed, auxiliary time is short, high efficiency.
5.low cost
Mainly adopt DTH Drilling Technology when Drilling on the rock, high efficiency and lowest cost when single meter drilling.
6.High leg Crawler
High legs for easy loading transport, direct loading no need crane. Crawler walking more adapted to the muddy field moving.
7.Axis positive and negative-pressure regulator
The best impact efficiency of various impactor has its best matched axial force and speed. In the drilling process, with the growing number of the drill pipe,
the impactor axial pressure is also increasing, can adjust the positive and negative pressure valve to ensure best axial compression of the impactor during drilling process . In this case it has the highest impact efficiency.
8.The role of oil mist
Mainly adopt DTH Drilling Technology for rock drilling, high efficiency and low cost when single meter drilling.
9.Rig Chassis
Crawler or truck chassis for choice.
Specification
| Max drilling depth | 240m |
| Drilling diameter | 150-300mm |
| Working pressure | 1.05-3.45 Mpa |
| Gas consumption | 16-55 m³/min |
| Drilling rod length | 2 m |
| Drilling rod diameter | 89 mm |
| Main shaft pressure | 4T |
| Lifting force | 12T |
| Fast lifting speed | 20m/min |
| Fast forwarding speed | 35 m/min |
| Rotary torque | 3500/4000/5000 Nm |
| Rotary speed | 100/80/70 r/min |
| Small secondary winch lifting force | 1.5T |
| Small secondary winch lifting force | 1.3M |
| Drilling efficiency | 10-35 m/h |
| Moving speed | 2 Km/h |
| Working condition | Loose layers and bedrock |
| Drilling method | Hydraulic rotary top drive and propulsion, DTH hammer drilling or mud drilling |
| Suitable hammer | Middle and high air pressure series |
