| Prod Model: |
DFQ-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Depth: |
100m |
| Borehole Caliber Range: |
105-150mm |
| Drilling Angle: |
90°~75° |
| Application: |
Various Soft and Hard Rock, Water Well Drilling Ri |
| Color: |
as Require |
| Accessory: |
We Provide Factory Cost Accessory |
| Certificate: |
BV & SGS Certificate |
| Usage: |
Water Well |
| Power Type: |
Diesel |
| Type: |
Rotary Drilling Rig |
| Condition: |
New |
Product Description

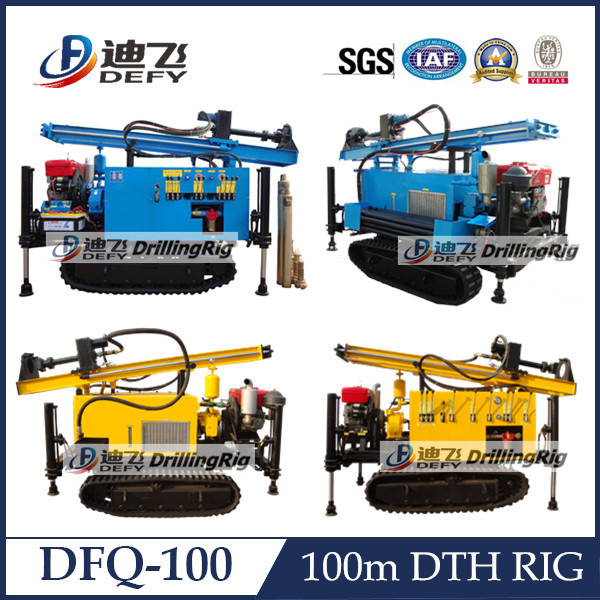

DFQ-100 portable small water well drilling machine/drilling rig for sale
Product Description
Application
1. water well drilling
2. geothermal air-conditioning project, other boreholes,
3. water engineering.
Features
1. suitable land condition is mainly very hard rock, like marble, granite, limestone.
2. Equipped with special DTH hammer and DTH bit, efficient in rocky area.
3. Power is diesel engine, suitable outside working.
4. Need use with air compressor
5. Higher efficiency, compared with traditional rigs. Drilling speed--20 m/h
Specification
No. |
Item |
Parameter |
1 |
Drilling caliber |
Φ105-150mm |
2 |
Max. drilling depth |
100m |
3 |
Work pressure |
1.05-2.0 MPa |
4 |
Gas consumption |
15~18 m³/min |
5 |
Apply to rock hardness |
f=6-12 |
6 |
Power |
24Kw/2300rpm |
7 |
Gradeability |
25° |
8 |
Lifting force |
8.5 tonf |
9 |
Speed of spindle |
Fast 135 rpm |
Slow 91 rpm |
10 |
Rotary torque |
1050N.m |
11 |
Mud pump |
BW-160 |
Different models of same series
Model |
Movement |
Borehole Diameter |
Drilling Depth |
DFQ-100 |
Crawler |
105~150mm |
100m |
DFQ-100W |
Wheel trailer |
105~150mm |
100m |
DFQ-150 |
Crawler |
105~203mm |
150m |
DFQ-150W |
Wheel trailer |
105~203mm |
150m |
DFQ-200 |
Crawler |
105~203mm |
200m |
DFQ-200W |
Wheel trailer |
105~203mm |
200m |
DFQ-250 |
Crawler |
105~254mm |
250m |
DFQ-300 |
Crawler |
105~305mm |
300m |
DFQ-400 |
Crawler |
105~400mm |
400m |
Our Services
1. Provide factory cost accessories all year
2. Engineers are available to service machine overseas or free training in factory
3. Online service 24hours*7 days
4. 12 months quality warranty for main body.
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience.
Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advices whenever you need.
Benefiting from the excellent performance of our drilling rigs, as well as our professional service, we have established friendly business relations with clients all over the world. Our products are serving for projects in Africa, South America, United States, Asia and so on. We cordially look forward to cooperating with you, let's work together to realize win-win result!
