| Prod Model: |
KM-92S |
| Product Name: |

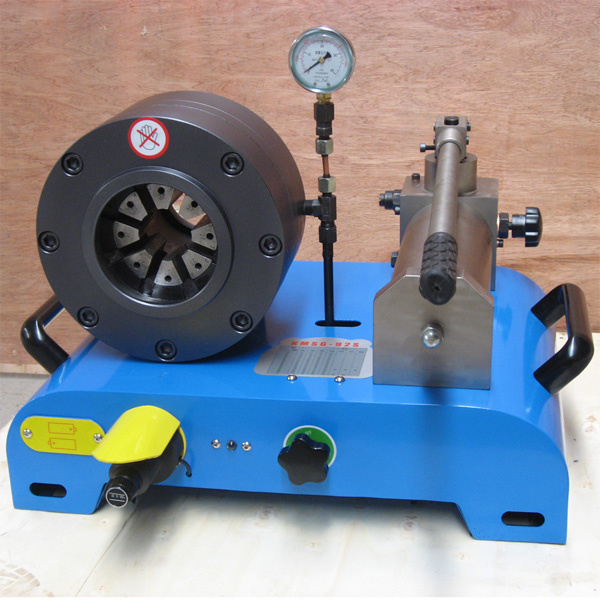

Manual Hydraulic Hose Crimping Machine Km-92s |
| Crimp Rage: |
1/8 Inch to 1 1/4 Inch |
| Machine Max Opening: |
108mm |
| Die Material: |
Special Steel |
| Machine Valves: |
From Taiwan |
| Machine: |
Blue |
| Weight: |
71kg |
| Volume(L-W-H): |
550*520*395(mm) |
| Automatic Grade: |
Manual |
Product Description
Technical Datas Of KM-92S Manual Hydraulic Hose Crimping Machine| Model NO. | KM-92S |
| Crimper Rage | 1/8 ich -1 1/4inch 4SP |
| Swaging Force | 1370KN |
| Pump | Maual Pump |
| Opening without dies | φ108mm |
| Opening | ≥ 27mm |
| Oil Box | 1.3L |
| Hydraulic Oil | L-HM32 |
| No. of standard die sets | 12 sets |
| Weight | 71 kg |
| Systematic Pressure | 30Mpa |

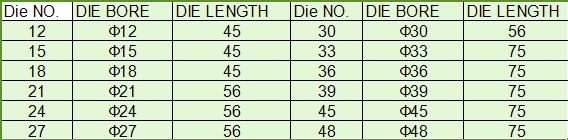

Die Information Of Manual Hose Crimping Machine KM-92S
Advantages Of KM-92S Manual Hydraulic Hose Crimping Machine 1).Small volume,low weight and easy to be moved;
2).When crimping to the pre-set size, indicator light will be on;
3).Suitable for outdoor, non-electricity manipulation;
4).Fast speed with compound dienbase;
5).Load-off handwheel make the die return fast.
Applications Of Manual Hydraulic Hose Crimping Machine KM-92S1). Suitable for OUT DOOR MAINTAINCE, ONLY 71KGS, EASY TO CARRY.
2).Used rubber hose to transmit hydraulic pressure as there working power.
3).Used in Building Construction, Petroleum Industry, Chemical Industry, Car and motor Industry.
Hydraulic Hose Crimper why not choose Kangmai?1). Kangmai hose crimper has approved
CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging or cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.
