| Prod Model: |
KM-92S-A |
| Product Name: |

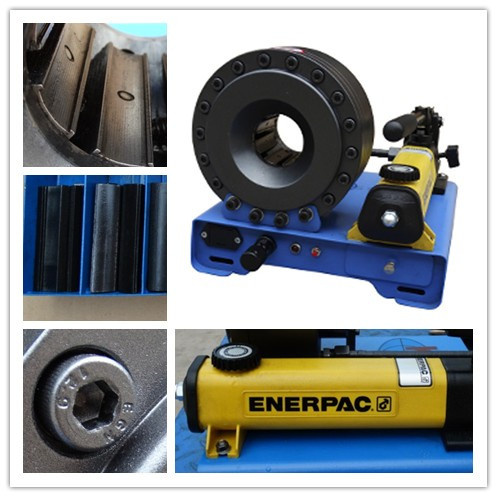

Manual Hydraulic Hose Crimping Tool Km-92s-a |
| Crimp Rage: |
1/8 Inch to 1 Inch |
| Machine Max Opening: |
54mm |
| Die Material: |
Special Steel |
| Machine Valves: |
From Taiwan |
| Machine: |
Blue |
| Weight: |
26.5kg |
| Volume(L-W-H): |
305*370*270(mm) |
| Automatic Grade: |
Manual |
Product Description
Technical Datas Of KM-92S-A Manual Hydraulic Hose Crimping Machine
| Model NO. | KM-92S-A |
| Crimper Rage | 1/8 ich -1 inch 2SN |
| Swaging Force | 1040KN |
| Pump | Maual Pump |
| Opening without dies | φ54mm |
| Opening | ≥ 17mm |
| Oil Box | 328ml |
| Hydraulic Oil | L-HM32 |
| No. of standard die sets | 7 sets |
| Weight | 26.5 kg |
| Systematic Pressure | 30Mpa |
Advantages Of KM-92S-A Manual Hydraulic Hose Crimping Machine
1).Small volume,low weight (only 26.5KGS) and easy to be moved;
2).When crimping to the pre-set size, indicator light will be on;
3).Suitable for outdoor, non-electricity manipulation;
4).Load-off handwheel make the die return fast.
Dies Information:
Dovetail Type Dies 7 sets, easy to install
When crimp elbow fittings, after crimp, you can take out one or two jaws, then take the crimped hose out easily.
Applications Of Manual Hydraulic Hose Crimping Machine KM-92S-A
1).Suitable for OUT DOOR MAINTAINCE, ONLY 26.5KGS, EASY TO CARRY.
2).Suitable for 1 inch/25mm hydraulic oil hose.
3).Suitable for washing hose, bathroom pipe.
Hydraulic Hose Crimper why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reason are like below:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging or cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.
Handan Kangmai Hydraulic Equipment Co., Ltd...Located in East of Wang Zhuang, Han (Dan) - Lin (Zhang) Expressway with covered an area of 50 acres. We invest RMB30 million and built mechanical processing workshop, finished debugging workshop, mold workshop, new product development center, warehouse, and spare parts warehouse. We can product 2000 sets machines in one year.
Our employees reach to 60 people now. Professional and technical personnel account more than 50%. With a number of technology patents, we passed the ISO9001 quality system certification, obtained the self import and export rights and the European Union CE certification. And now we are one of largest factory in hydraulic area.
The main products are hose crimping machine, hose cutting machine, hose skiving machine, hose coupling machine, marking machine, nut crimping machine, hose testing machine, and cleaning machine, nine series more than 50 models. We successively provided equipment for XAC, Jizhong energy, South car group, the Beijing Shanghai High-speed Rail, and Yiwan railway company. Meanwhile, our products are exported to the United Kingdom, Spain, Portugal, Ukraine, Russia, Mexico, Brazil, Argentina, USA, Saudi Arabia, Iran, Thailand, Indonesia and other more than 30 countries and regions, and get good response by domestic and foreign customers.
In the future, we will insist on innovation and development, make the product more and more precisely. Make Chinese Kangmai become the world's Kangmai.
