Portable Mining Hydraulic Geotechnical Rotary Core Drilling Rig Machine

Portable Mining Hydraulic Geotechnical Rotary Core Drilling Rig Machine
Price: US $ 12862-14616/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Drilling Depth: 130-200m
Open Hole Dia.: 220-325mm
Name: Drilling Rig Machine
Drill Rod Dia.: 42-60mm
Drill Angle: 90degree to 75degree
Matching Power: 13.2, 15
Wright: 3350-3600kg
Spindle Speed: 142/285/570(R/Min)
Mud Pump Flow: 160(L/Min)
Mud Pump Max.Pressure: 1.3MPa

Product Description

portable mining hydraulic geotechnical rotary core Drilling rig Machine

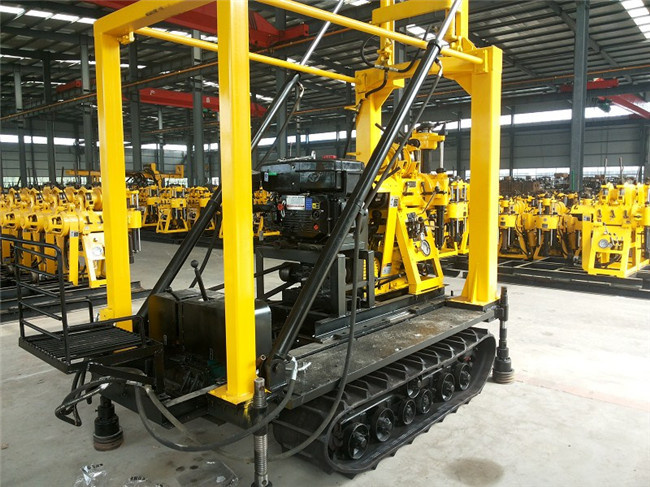

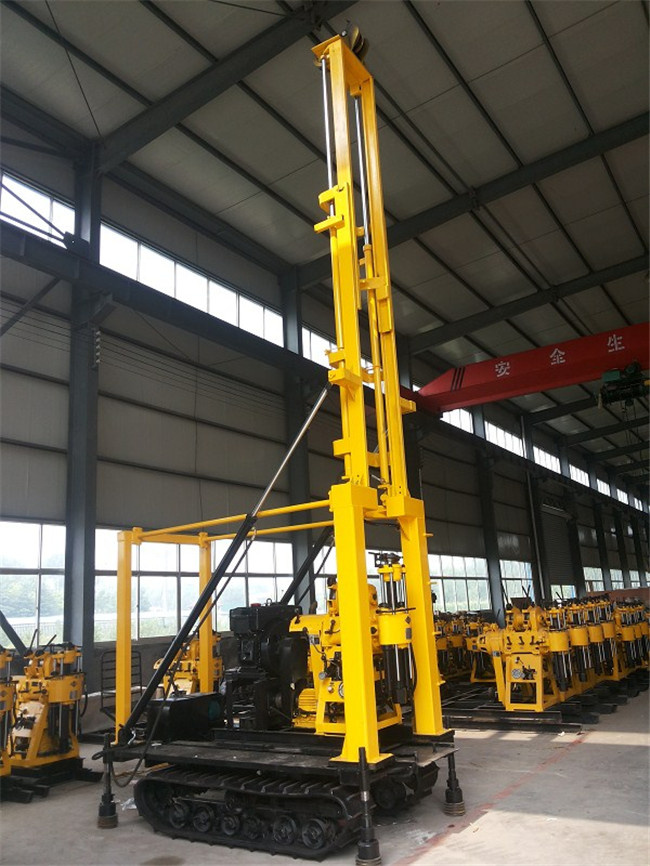

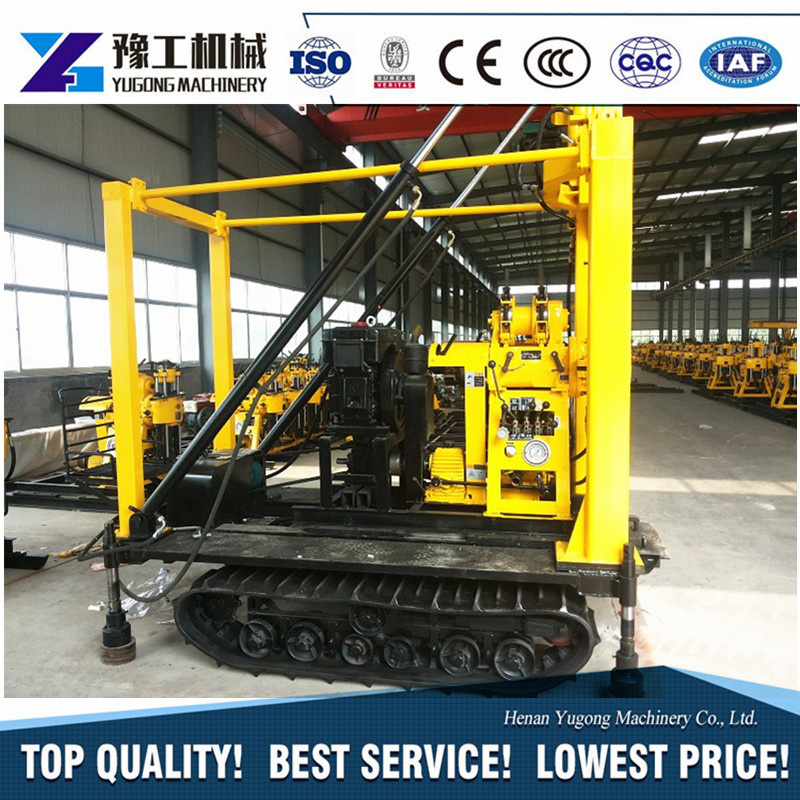

Description of Drilling rig Machine

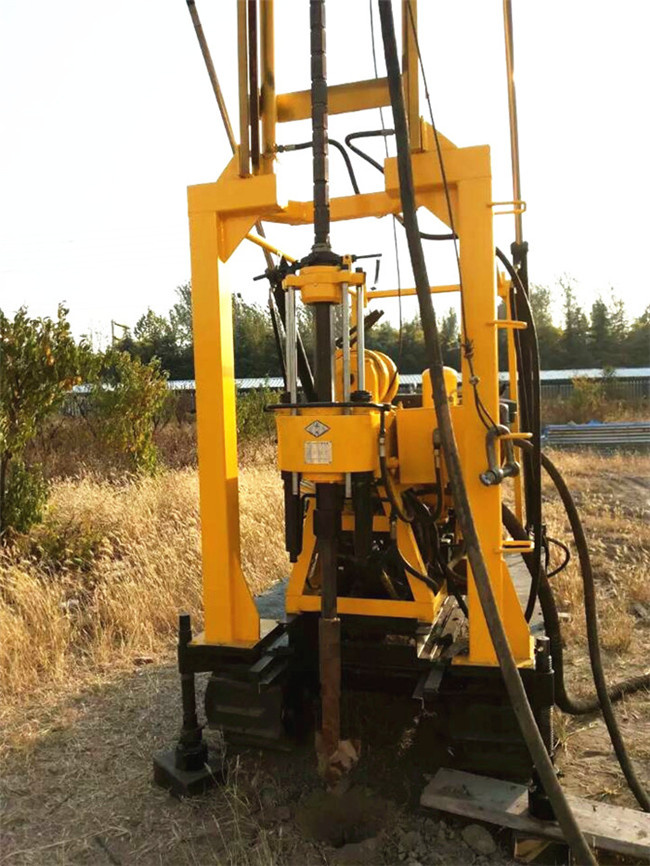

XYD Drilling rig Machine crawler drilling machine or track mounted drilling rig is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.







Feature of Drilling rig Machine
  1. Hydraulic control drill mast,save time and worker labor.
  2. Four hydraulic jacks with max. height 1.3m,the machine can be loaded on to and unloaded from truck.
  3. Rubber track is with lighter weight,and does not hurt urban road.
  4. Electric-start diesel engine reduces the operator's labor intensity.
  5. Mud pump:BW160 mud pump,with bigger flow displacement and pressure,easy maintenance.
  6. 6.Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.
Technical parameter of Drilling rig Machine
The Drilling rig Machine parameters
ModelXYD-130XYD-180XYD-200
Drill hole depth130m180m200m
Maximum opening diameterΦ75-Φ220mmΦ75-Φ220mmΦ75-Φ325mm
Final hole diameterΦ75mmΦ75mmΦ75mm
Drill pipe diameterΦ42-60mmΦ42-60mmΦ42-60mm
Borehole inclination90°- 75°90°- 75°90°- 75°
Power(diesel engine)13.2/2200kw/r/min13.2/2200kw/r/min15/2200kw/r/min
Size3.8*1.95*2.7m3.8*1.95*2.7m3.8*1.95*2.7m
Vertical shaft
Vertical spindle speed142,285,570r/min130,480,730,1045r/min64,28,287,557r/min
Vertical stroke450mm450mm450mm
Crawler chassis
Crawler size/piece350*90*48mm350*90*48mm350*90*48mm
Climbing angle20°20°20°
Moving speed10km/h10km/h10km/h
Hydraulic landing leg valid height1300mm1300mm1300mm
Rig
Rated load18t18t18t
Effective height6.5m6.5m6.5m
Mud pump
ModelBW160BW160BW160
Flow160L/min160L/min160L/min
Maximum pressure1.3Mpa1.3Mpa1.3Mpa
Reciprocating frequency165times/min165times/min165times/min
Inlet hose diameterΦ51mmΦ51mmΦ51mm
Outlet hose diameterΦ32mmΦ32mmΦ32mm
Our services
1.Any inquiries will be replied within 12 hours.
2.Professional manufacturer, Welcome to visit our factory at any time.
3.High quality, fashion designs, reasonable & competitive price and fast lead time.
4. Protection of your sales area, ideas of design and all your private information.
5.Shipping:We have strong cooperation with DHL, TNT, UPS, FedEx, EMS, China air post.You also can choose your own shipping forwarder.

Company Information













Henan Yugong Machinery Co., Ltd., located in Zhengzhou City, is specialized in machinery in China over 20 years. Our company focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on. Our products include equipments of different fields, highways, bridges, tunnels, culverts of metros, mining, coal mines and non-coal mines. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Our factory have 20 years of manufacturing all kinds of mineral equipment, construction machinery, prestressed machinery, metallurgy machinery etc. There are more than 500 employees in our company, including more than 30 senior technical staff and 30 international sales persons. You can be rest assured that All the products with high quality meet international standards and have won a good reputation at home and abroad.

We are warmly looking forward your long-term friendly cooperation, please kindly contact us any time you need these machines.
