| Prod Model: |
DIW |
| Product Name: |
C-Frame Power Press/C-Frame Punch Press in Machine |
| Main Electrical Appliance: |
Schneider |
| Application: |
Profile Steel Process |
| Hydraulic Part: |
Taiwan Hnc |
| Sealing Element: |
Japan Valqua |
| Operate Way: |
Foot Pedal |
| Oil Hydraulic Pump: |
Taiwan Hydromax |
| Motor: |
Siemens |
| Type: |
High-Speed Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Hydraulic Pressure |
| Precision: |
High Precision |
Product Description
c-frame power press/c-frame punch press in machinery/ c-type mechanical press

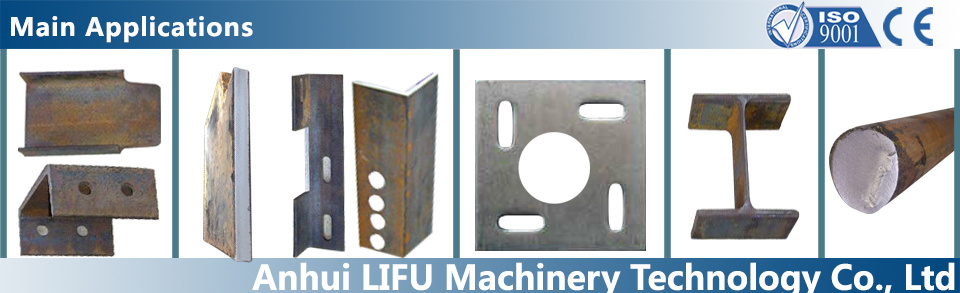

Adopt hydraulic transmission, Punching hole at different material, like metal sheet, channel steel, angle steel, etc. Equipped different punching moulds, can achieve different punching function. And finished short stroke punching parts. Machine running stable, there is no vibration and noise when punching and shearing. This is ideal hydraulic punching machine.
Technical parameter
| No | Name | Value |
| 1 | Model | HC-S-65T |
| 2 | Pressure (Ton) | 65 |
| 3 | Maximum cutting thickness (mm) | 16 |
| 4 | Slide stroke(mm) | 80 |
| 5 | Stroke frequency (beats/min) | 12 |
| 6 | Throat depth (mm) | 300 |
| 7 | Punching thickness (mm) | 16 |
| 8 | Maximum Punching diameter(mm) | 25 |
| 9 | Main motor power (kw) | 5.5 |
Main configuration
| Main electrical appliance | 1 set | SCHNEIDER |
| Hydraulic part | 1 set | TAIWAN HNC |
| Sealing element | 1 set | JAPAN VALQUA |
| Main motor | 1 set | SIEMENS BEIDE |
| Hydraulic pump | 1 set | TAIWAN HYDROMAX |
Main Features
1.Adopt imported electromagnetic valve, which can ensure machine running stable and reduce the failure rate to minimum.
2.Adopt imported gear pump, low noise, small volume, large flow, running stable.
3.Adopt imported motor, good stability, energy save.
4.Adopt Schneider electric (contain: circuit breaker, contactor, thermal overload, small type relay, limit switch, button ), electric line clear, reduce electrical fault.
5.Adopt three layer high-pressure oil tube, and ensure there is no leakage when at high pressure.
6.Oil cylinder adopt 40Cr high strength alloy material whole forging. Inside piston guide bush used nodular cast iron. There is no gap when installing, and it can go through long time high temperature resistance, heat-resistant limit is 700ºC. It can prevent oil cylinder inside bush transformation and oil cylinder leakage at high temperature
Packing & Delivery Plastic film, wooden package, or as requirement.

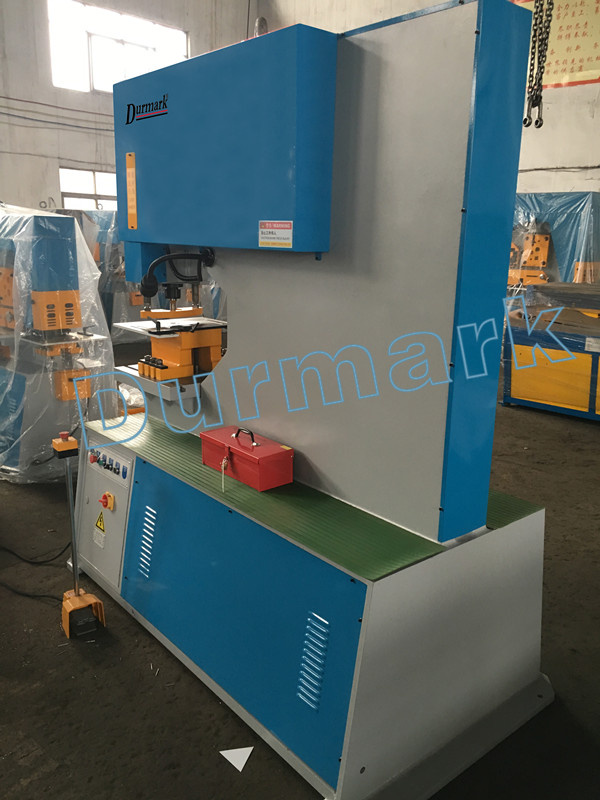

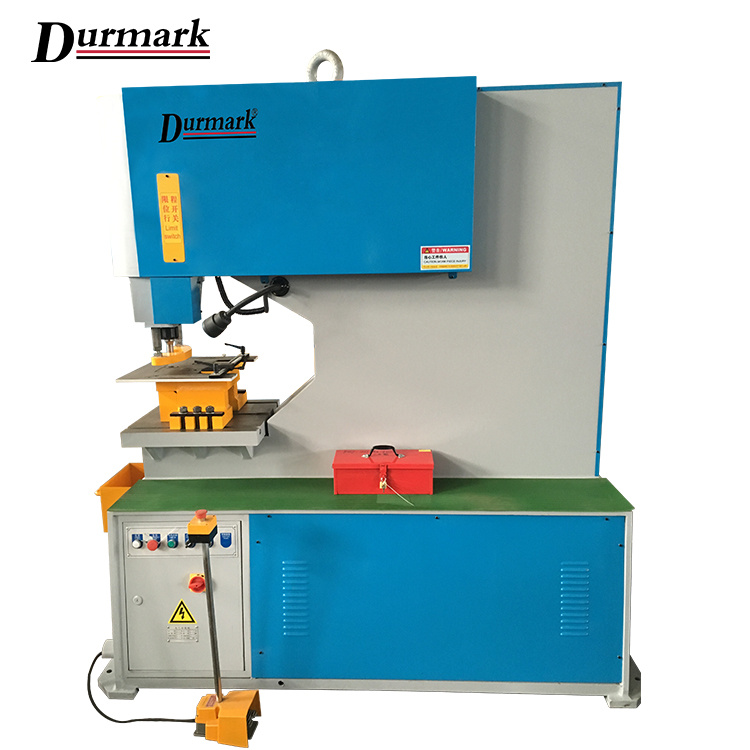

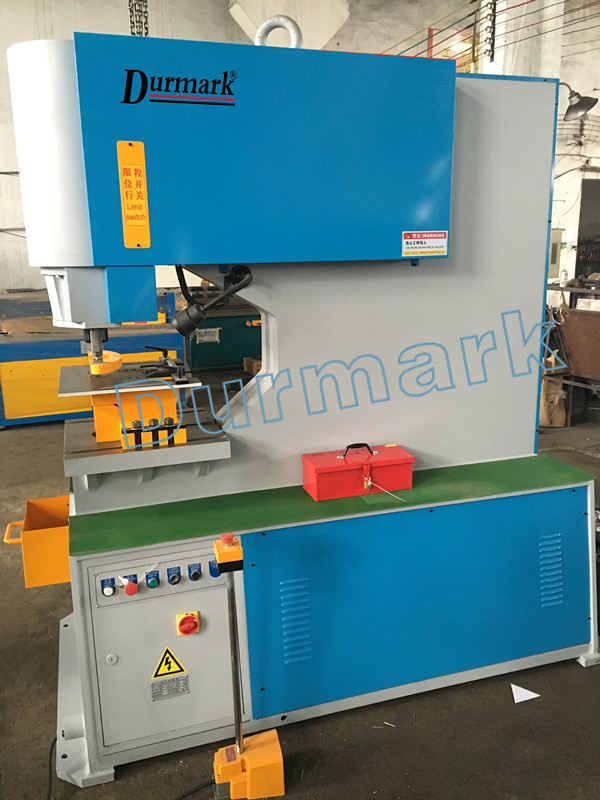

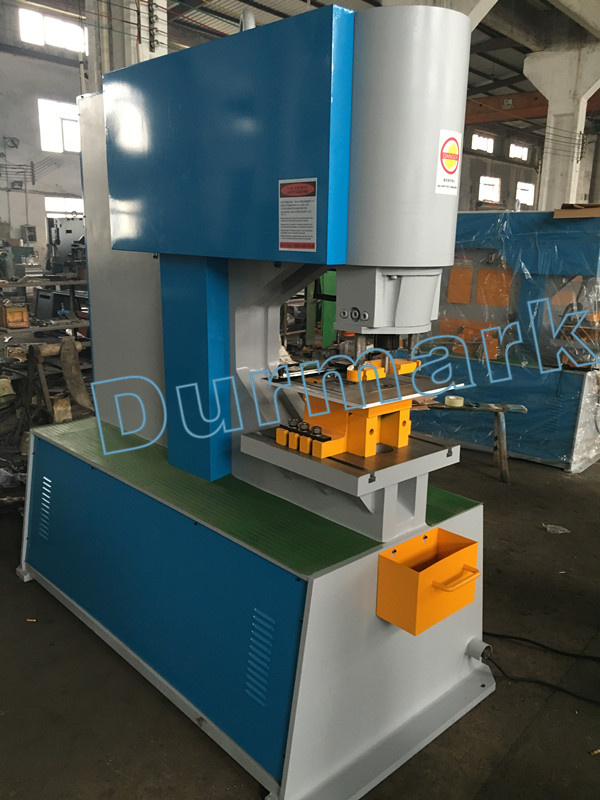

Delivery Detail: 15 daysDetailed Images
