Prod Model: |
4*110mm-45*1000mm |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Electric Hammer Drill Bit |
Material: |
40cr Drill and Yg8c Tip |
Use: |
Concrete and Marble Drilling |
Product Description

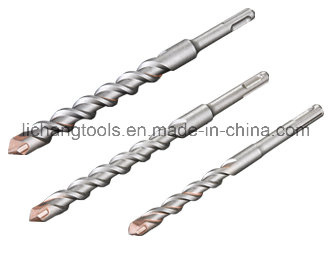

SDS PLUS HAMMER DRILL BIT, USE FOR CONCRETEMaterial: 40 Chrome steel and YG8C carbide tip
Flute type: Single flute and double flute ( S4)
Professional Heat treatmentHRC: 47-55
Use for Concrete, stone.Tip: "-" tip and "+" tip
Shank type: SDS PLUS shank and SDS MAX shank
Dia Size: 4-30mm
Length Size 110-1000mm
Packing: PVC bag, plastic tube,hanger and so on.
Employing high quality alloy steel for drilling body and tungsten carbide for drilling tip, and in combination with various types of electric hammer. The drill is one of the most efficient tools suitably and widely used for hole drilling in hard materials like concerte and brick in construction & installation industries. Available in sandblast, bright finish, black oxide, brown color etc.
HANGZHOU LICHANG TOOLS CO LTD |

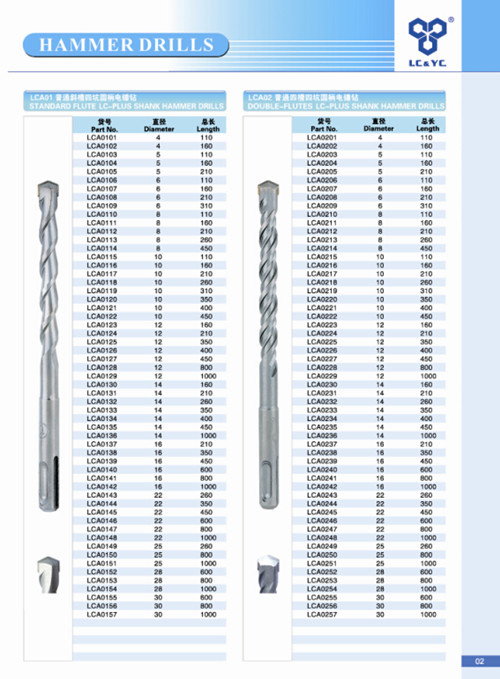

Species | Specification | Specification | Specification | Species | Specification | Specification | Specification |
Dia X Length (mm) | Dia X Length (mm) | Dia X Length (mm) | Dia X Length (mm) | Dia X Length (mm) | Dia X Length (mm) |
SDS-PLUS | 5X110 | 12X160 | 18x350 | SDS-MAX | 10X280 | 22X340 | 32X600 |
5X160 | 12X210 | 18x400 | 10X340 | 22X400 | 32X800 |
5.5X110 | 12X260 | 18x460 | 10X400 | 22X505 | 32X1000 |
5.5X160 | 12X310 | 18x600 | 10X505 | 22X600 | 35X280 |
6X110 | 12X350 | 18x800 | 12X280 | 22X800 | 35X340 |
6X160 | 12X400 | 18x1000 | 12X340 | 22X1000 | 35X400 |
6X210 | 12X460 | 20x210 | 12X400 | 25X280 | 35X505 |
6X260 | 12X600 | 20x260 | 12X505 | 25X340 | 35X600 |
6.5X110 | 12x800 | 20x310 | 14X280 | 25X400 | 35X800 |
6.5X160 | 12x1000 | 20x350 | 14X340 | 25X505 | 35X1000 |
6.5X210 | 14x160 | 20x400 | 14X400 | 25X600 | 38X280 |
6.5X260 | 14x210 | 20x460 | 14X505 | 25X800 | 38X340 |
7X110 | 14x260 | 20x600 | 14X600 | 25X1000 | 38X400 |
7X160 | 14x310 | 20x800 | 16X280 | 28X280 | 38X505 |
7X210 | 14x350 | 20x1000 | 16X340 | 28X340 | 38X600 |
7X260 | 14x400 | 22x210 | 16X400 | 28X400 | 38X800 |
8X110 | 14x460 | 22x260 | 16X505 | 28X505 | 38X1000 |
8X160 | 14x600 | 22x310 | 16X600 | 28X600 | 40X400 |
8X210 | 14x800 | 22x350 | 18X280 | 28X800 | 40X505 |
8X260 | 14x1000 | 22x400 | 18X340 | 28X1000 | 40X600 |
8X310 | 16x160 | 22x460 | 18X400 | 30X280 | 40X800 |
8X350 | 16x210 | 22x600 | 18X505 | 30X340 | 40X1000 |
8X460 | 16x260 | 22x800 | 18X600 | 30X400 | 42X600 |
10X110 | 16x310 | 22x1000 | 20X280 | 30X505 | 42X800 |
10X160 | 16x350 | 25x210 | 20X340 | 30X600 | 42X1000 |
10X210 | 16x400 | 25x260 | 20X400 | 30X800 | 45X600 |
10X260 | 16x460 | 25x310 | 20X505 | 30X1000 | 45X800 |
10X310 | 16x600 | 25x350 | 20X600 | 32X280 | 45X1000 |
10X350 | 16x800 | 25x400 | 20X800 | 32X340 | |
10X400 | 16x1000 | 25x460 | 20X1000 | 32X400 | |
10X460 | 18x210 | 25x600 | 22X280 | 32X505 | |
10X600 | 18x260 | 25x800 | | | |
12X110 | 18x310 | 25x1000 | | | |
Hangzhou Lichang Tools Co., Ltd previously known as Whenzhou Yongchang Tools which is set up in 1987, ithas awarded the ISO9002 Certificate. Lichang specialized in the production of various tooling productssuch as SDS-plus electric hammer drill bits, HSS twist drills, chisels, carbide tipped router bits, hole drilling implements, TCT saw blades and some other power tool accessories.
Thanks to unlimited experience, excellent faxilities as well as advanced technology, the quality of our products ranks among the best in our domestic market. While our products are distributed nationally in China. We have many very satisfied customers internationally, including customers in Europe and the U. S. A...
No matter how big your order is we will always offer the most competitive prices and the kbest service possible. We would like our business relationship to be mutually beneficial as we continue to grow business together.
We thank all our clients for their loyal support!
