PP Medicine Bottle with Cap Mould
| Price: |
US $ 1500cavity |
| Min Order: |
1cavity |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
YS413 |
| Cavity: |
2/4/8/12/16/18/20/24/28/32/36/48 |
| Mould Matieral: |
P20\S136\2316\#45\718/ Copper |
| Polish: |
High Polish |
| Process: |
Hot/Cold |
| Gate: |
Pin Point/Edge Gate |
| Application: |
Household Appliances |
| Product Material: |
Steel |
| Process Combination Type: |
Compound Die |
| Method For Making Preforms: |
Injection Type |
| Extrusion Blow Molding Mould Application Type: |
Commodity Container |
| Function: |
Anti-Cold |
| Certification: |
SGS |
| Warranty: |
12 Months |
| Customized: |
Customized |
| Condition: |
New |
Product Description
1.ADVANTAGE:
1.Saving 10%-30% cost than others.
2. Direct factory price
3. Life:3, 000, 000 time
4.2D and 3D provided
5. Quick T1 time: 25-40 days
6.More than 15 years experience

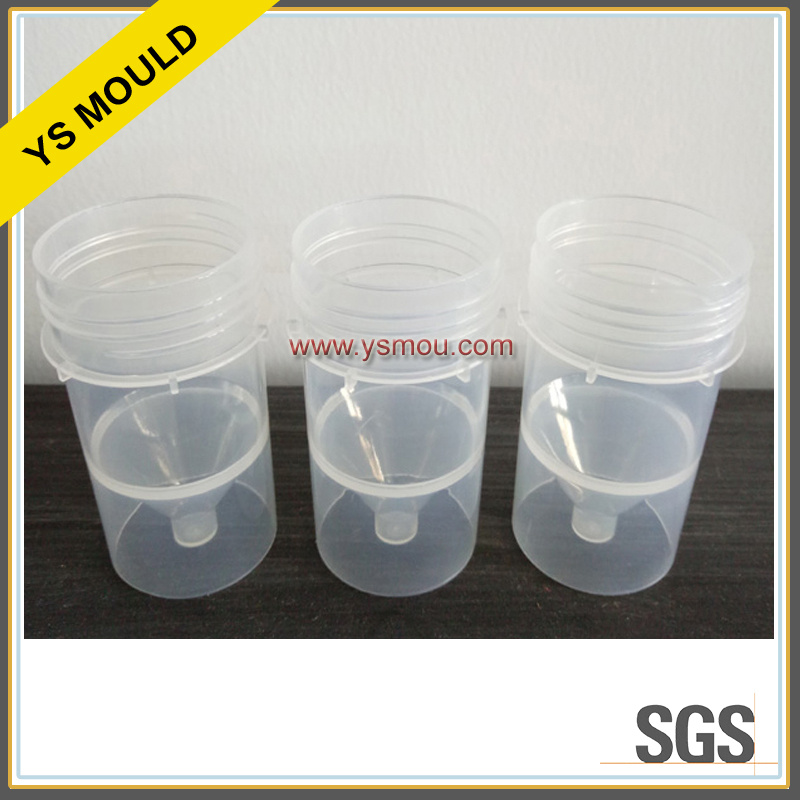

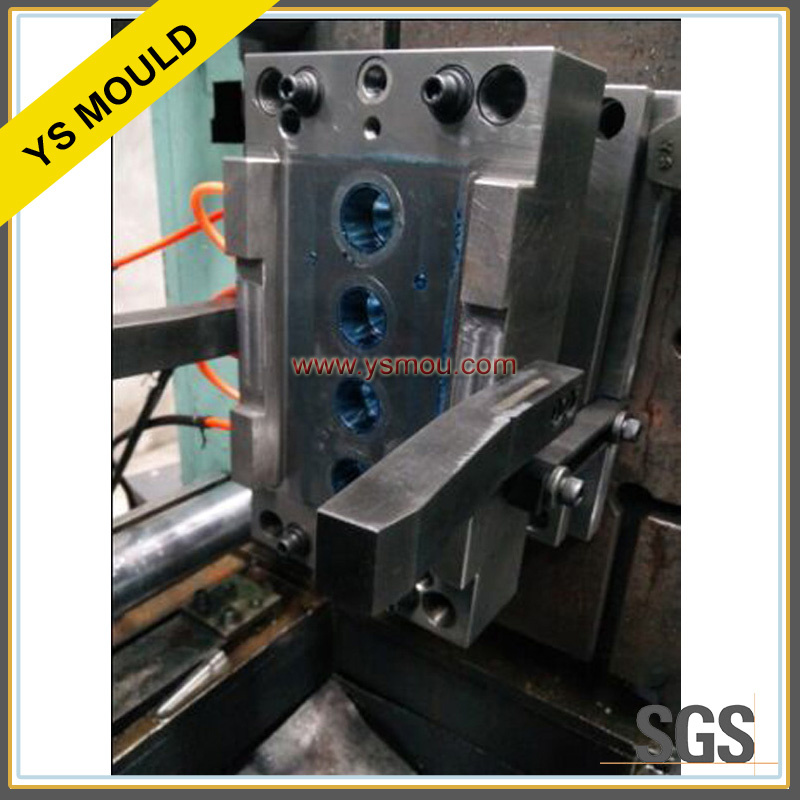

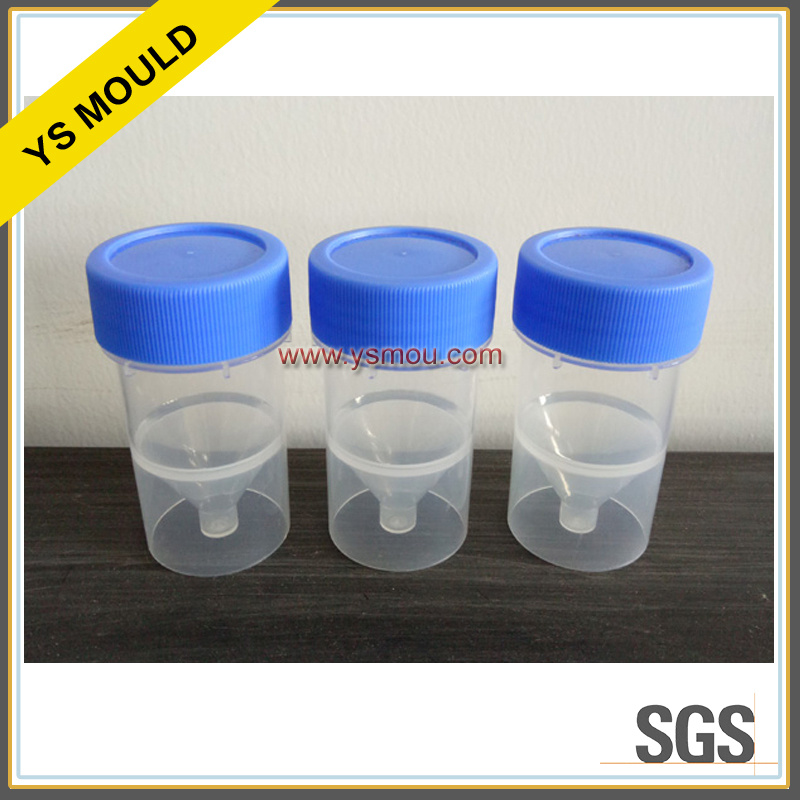

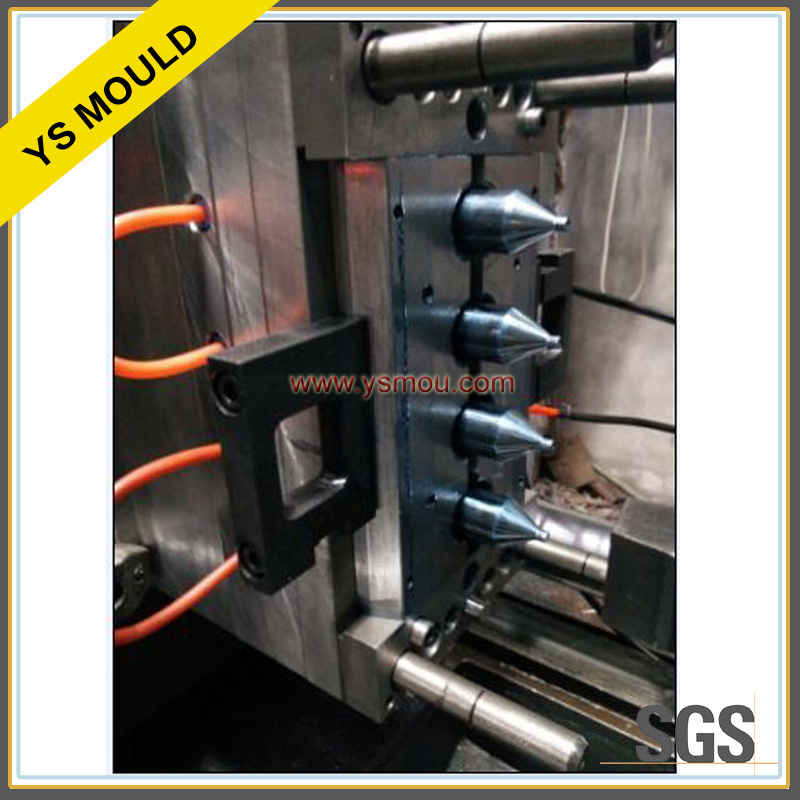

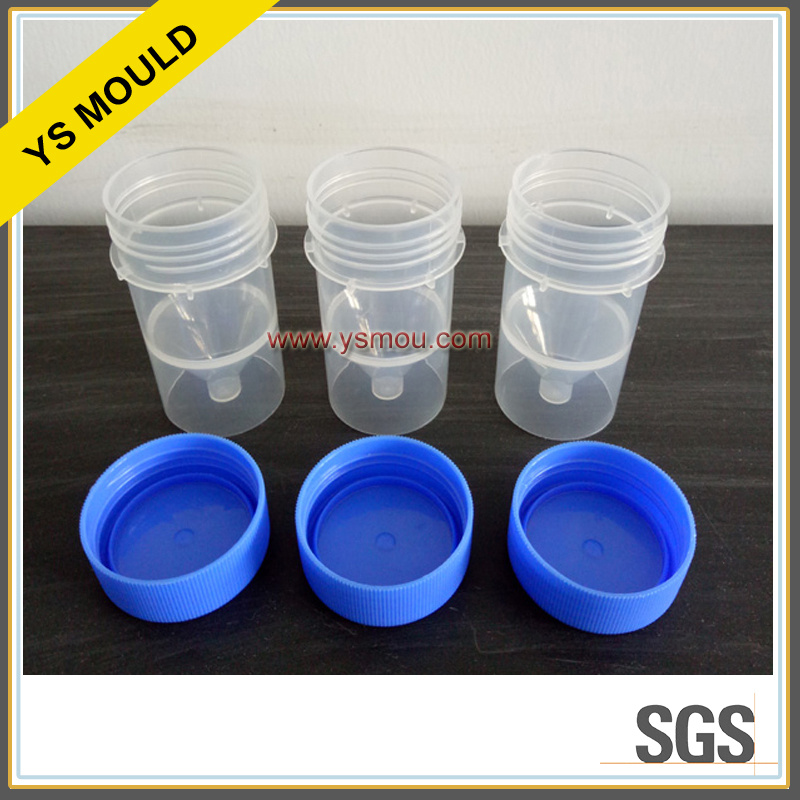

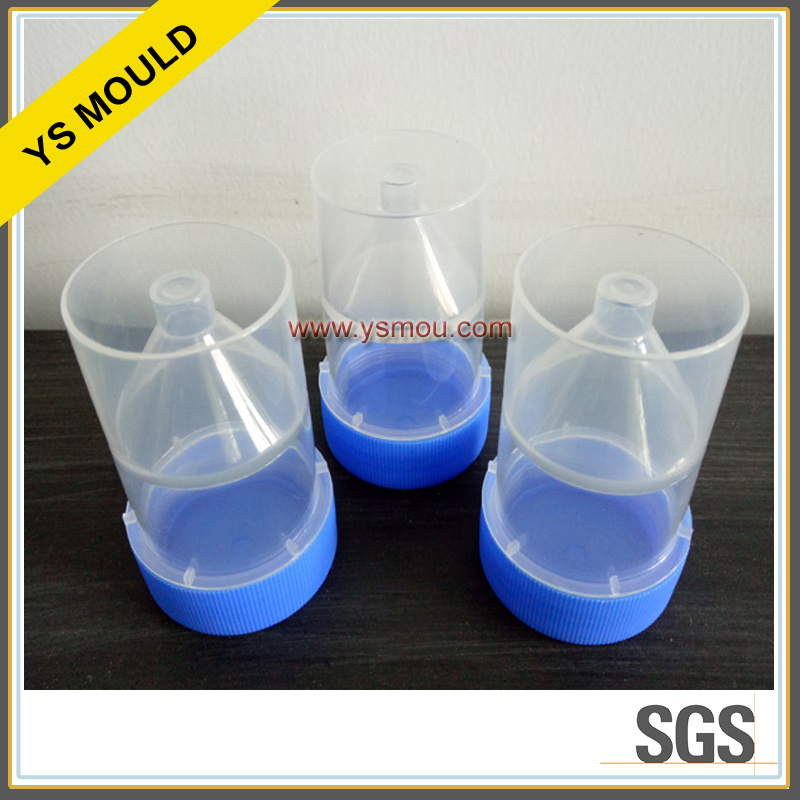

2.PICTURE:
3.MOULD DESCRIPTION:
1.Cavity:1-72
2.Mould base material :P20 , 45# , 4CR13 , .ECT
3.Core&Cavity material : S136,718, P20,2378,2316,4CR13,P20 .ECT
4.Runner: Cold /Hot (LOCAL BRAND,HASCO,YUDO,HUSKY .ETC)
5.Life time:3,000,000 shots
6.Quick T1 time:25-40 days
7.Package:wooden case
4.MOULD MANUFACTURE PROCESS:Cap Mould : grinding→fly-cutter →CNC Milling→drilling→lathe→boring lathe→electric pulse →fine fly-cutter→polish→electroplate→install
Preform Mould: grinding→drilling→lathe→boring lathe→fine fly-cutter→polish→electroplate→install
Need vale ,itself-locking :new advanced needle vale gate system.each cavity is self-lock independently to ensure low decent ration of product.
The excellent hot runner design assures uniform heating and greatlyimproves the quality of plastic products
5.AFTER SALE SERVICE:Any mould problem,we will provide free maintenance service
6. FLOW CHART| 1 | Sample or 2D,3D drawing from customer |
| 2 | Bulid 2D,3D drawing |
| 3 | CAD mould design |
| 4 | Send drawing to customer to confirm |
| 5 | Parts inspection/CNC machining/EDN machining |
| 6 | Mould assembly |
| 7 | Mould test |
| 8 | Send sample to confiom |
| 9 | Dilver the mould |
7.CONTACT ME:
Taizhou Huangyan Yongsheng Mould Co., Ltd, founded in 2007, is located at Zhejiang province. It is near Hangzhou and Ningbo port. And domestic flights can arrive directly. You can go anywhere freely. Our company covers an area of more than 1, 000 meters. We are specializing in the development, production and sales of no gate hot runner cap mould, cut-free independent self-locking gate perform mould, free-gate valve perform mould, anti-theft cap mould, die cut cap mould, handle mould, bottles mould and daily necessities mould. Now we have had first-class experts and production machines.
After many years of efforts and sustained fast developments, we have obtained customers' recognition with our scale, quality and good faith. Now we have got a clear advantage on technologies and equipments levels, quality grades, market share etc. And our core competencies are keeping on being stronger and stronger. It goes without saying that our company will develop steadily, rapidly and healthily. In order to be more professional, solider, stronger and bigger, we insist on perfect quality, good faith and customers first from our foundation, never stopped developing technologies and products.
Now our products are popular in domestic market, and become a famous national brand. In oversea market, they are sold to Americas, Europe, Middle East, Africa and Southeast Asia. We will keep on fast development, strengthening personnel training and introduction, developing technologies, enhancing the capability of independent innovation, accelerating new plastic perform development, improving technology progress and industry upgrade, and carry out "going-out" strategy seriously, take part in the competition actively to open much wider market all over the world.
"YONGSHENG- keeps up with times and makes friends with all over the world
