| Prod Model: |
ppr pipe |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading Port: |
Shanghai & Ningbo Port |
| Delivery Date: |
15-30 Days |
| Quality: |
Top |
| Size: |
20 – 160 mm |
| Connection: |
Hot Melting |
| Pressure: |
1.25MPa,1.6MPa,2.0MPa,2.5MPa |
| Material: |
PPR |
| Hardness: |
Hard Tube |
| Type: |
Thermosetting Plastic Pipe |
| Hollow: |
Hollow |
| Shape: |
Round |
| Usage: |
Water Supply Pipe |
| Color: |
Green |

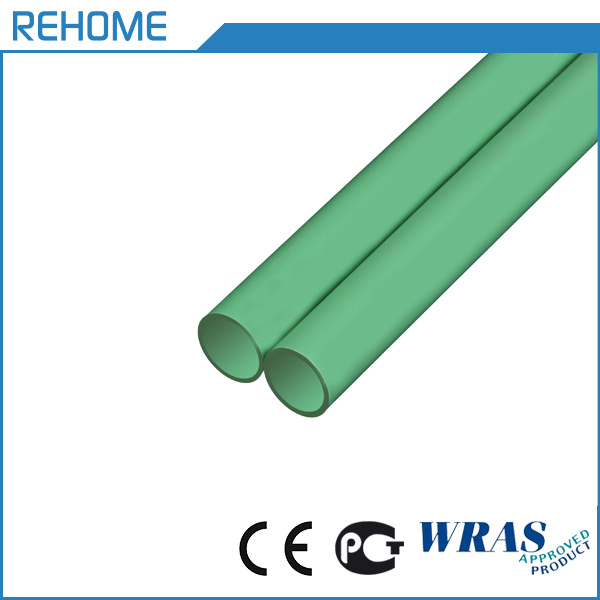

Product Description
Material: 99.9% Korea RP2400 and brass inserts.
Pressure Rating: 1.0Mpa, 1.25MPa, 1.6MPa, 2.0MPa, 2.5MPa
Standard: ISO 15874: 2003, GB/T 18742.1-2002
Production temperature: -40° C----+95° C
Certification: ISO9001, ISO14001
Color: Green, White, Grey etc
Size: 16-160 mm
| Spec(mm) | Thickness(mm) | Package(m/bale) |
| S5 1.25mpa | S4 1.6mpa | S3.2 2.0mps | S2.5 2.5mpa |
| 20 | 2.0 | 2.3 | 2.8 | 3.4 | 120 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 | 120 |
| 32 | 2.9 | 3.6 | 4.4 | 5.4 | 80 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 | 60 |
| 50 | 4.6 | 5.6 | 6.9 | 8.3 | 40 |
| 63 | 5.8 | 7.1 | 8.6 | 10.5 | 24 |
| 75 | 6.8 | 8.4 | 10.3 | 12.5 | 16 |
| 90 | 8.2 | 10.1 | 12.3 | 15.0 | 8 |
| 110 | 10.0 | 12.3 | 15.1 | 18.3 | 8 |
| 160 | 14.6 | 17.9 | 21.9 | 26.6 | 4 |
Applications:
Cold or hot water supply, heating system including flooring heating, wall heating and radiant, central air conditioning and industrial liquids transportation.
Advantages:
1. High Temperature Resistance: The maximum sustained working temperature is up to 70 Degree Celsius, the maximum transient temperature is up to 95 Degree Celsius
2. Heat Preservation: Low thermal conductivity which is only 1/5000 of copper pipe, and 1/250 of steel pipe
3. Non-toxic: No heavy metal additives, would not be covered with dirt or contaminated by bacterium
4. Corrosion Resistant: Resist chemical matters or electron chemical corrosion
5. Lower Installation Costs: Light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system6. Higher Flow Capacity: Smooth interior walls result in lower pressure loss and higher volume than metal pipes
7. Long Life: More than 50 years under normal conditions
8. Recycled and Environment-friendly
Applications:
1. Cold and hot water supply system for civil and industrial constructions. E. G. In residential buildings, hospitals, hotels, school and office buildings, ship building sports facilities etc
2. Drinking water system and food industry pipe works
3. Central air conditioning system and heating system for residential houses
4. Irrigating system in gardens and green houses
5. Public and sport facilities such as swimming pool and stadiums
6. For rainwater utilization system
Shanghai Ruihe Enterprise Group Co., Ltd is a leading manufacturer for plastic pipe and fittings since its foundation in 2002. We are specialized in manufacturing PPR, PVC, PE pipes and fittings for more than 15 years. Ruihe is a modern high-tech enterprise who is able to do scientific research, product development, production, sales and after-sales service with the certificates of WaterMark, CE, ISO 9001, ISO 14001, OHSAS 18001, WRAS, GOST-R and third party inspection test reports ( such as SGS, BV, National Test Report and etc ).
The affiliated holding companies of Ruihe are: Shanghai Ruihe Electric Technology Co., Ltd., Shanghai Ruihe Waterproof Technology Co., Ltd., Shanghai Yitong Electronic Equipment Co., Ltd.
Currently, Our annual sales turnover has reached more than USD 60, 000, 000. Our factory covers 80, 000 square meters with more than 300 employees. 218 offices have been set at home and abroad. Ruihe products have been exported to Oceanian countries such as Australia, New Zealand, Papua New Guinea, Republic of Vanuatu; Asian countries such as Thailand, Philippines, Sri Lanka, the UAE, Malaysia, Pakistan, Iraq; African countries such as Kenya, Guinea, Togo, the Niger; American countries such as America, Cuba, Brazil; European countries such as Russia, Germany, Ireland, Italy, England etc.
REHOME is the brand for international market for Shanghai Ruihe Enterprise Group Co., Ltd.
With a clear international market strategy, the leaders of Ruihe encourage all of the staffs to work harder and more efficiently, showing a young and active organization to all of you.
