| Prod Model: |
ppr pipe |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Loading Port: |
Shanghai & Ningbo Port |
| Delivery Date: |
15-30 Days |
| Quality: |
Top |
| Size: |
20 -160 mm |
| Connection: |
Hot Melting |
| Pressure: |
1.25MPa,1.6MPa,2.0MPa,2.5MPa |
| Standard: |
DIN8077, DIN8078 ,ISO15874 |
| Certification: |
ISO14001,Ohsas18001,ISO9001,Ce,GOST |
| Hardness: |
Hard Tube |
| Type: |
Thermosetting Plastic Pipe |
| Hollow: |
Hollow |
| Shape: |
Round |
| Usage: |
Water Supply Pipe |
| Material: |
PPR |
| Color: |
Green |
Product Description

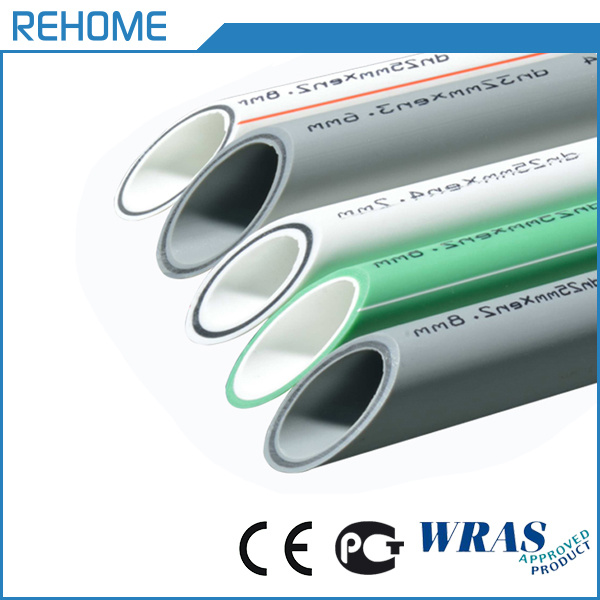

PPR pipe/PPR hot water pipe pn16 20-110mm
1. Good compression resistance,
2...High flow capacity;
3. Drinking water supply
| Items | ppr pipe |
| material | polypropylene random |
| size | 20 - 160 mm |
| color | white,green,gray |
| connection | hot melting |
| pressure | 1.25MPa,1.6MPa,2.0MPa,2.5MPa |
| standard | DIN8077, DIN8078 ,ISO15874 |
| Certification | ISO14001,OHSAS18001,ISO9001,CE,GOST |
| Spec(mm) | Thickness(mm) | Package(m/bale) |
| S5 1.25mpa | S4 1.6mpa | S3.2 2.0mps | S2.5 2.5mpa |
| 20 | 2.0 | 2.3 | 2.8 | 3.4 | 120 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 | 120 |
| 32 | 2.9 | 3.6 | 4.4 | 5.4 | 80 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 | 60 |
| 50 | 4.6 | 5.6 | 6.9 | 8.3 | 40 |
| 63 | 5.8 | 7.1 | 8.6 | 10.5 | 24 |
| 75 | 6.8 | 8.4 | 10.3 | 12.5 | 16 |
| 90 | 8.2 | 10.1 | 12.3 | 15.0 | 8 |
| 110 | 10.0 | 12.3 | 15.1 | 18.3 | 8 |
| 160 | 14.6 | 17.9 | 21.9 | 26.6 | 4 |
Features of the PPR pipe:
Material: PPR--Random Polypropylene(Type 3)
Sizes: 20mm to110mm
Pressure Rating: 1.0Mpa, 1.25MPa, 1.6MPa, 2.0MPa, 2.5MPa
Colors: Light grey, white, green or other colors on request
Connection: Socket fusion joint, electro fusion joint or transition joint
Standard: ISO9001, 14001; OHSMS18001 GB/DIN
Factory Certification: ISO9001, ISO14001, OHSAS18001
Applications: Cold or hot water supply, heating system including flooring heating,
Wall heating and radiating system, Central air conditioning system, industrial liquids transportation
PPR Pipe Application
PPR pipe for Cold and hot water supply
Heating system including flooring heating, wall heating and radiant system
Central air conditioning system
Industrial liquids transportation
PPR Pipe Application Areas:
Residential Apartments, Condominiums, Public Housing
Schools, Laboratories and Chemical Sewerage
Hotels and Resorts
Advantages:
High Temperature Resistance: PPR pipe the maximum sustained working temperature is up to 70° C, the maximum transient temperature is up to 95° C.
Heat Preservation: Low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: No heavy matal additives, would not be covered with dirt or contaminated by bacterium.
Corrosion Resistance: Resist chemical matters and electron chemical corrosion.
High Flow Capacity: Smooth interior walls and low friction result in low resistance and high volume.
Excellent Flexibility.
Low Installation Costs: Light weight and ease of installation can reduce installation costs
Longevity: More than 50 years under proper use
Recycled and Environment-friendly
Shanghai Ruihe Enterprise Group Co., Ltd is a leading manufacturer for plastic pipe and fittings since its foundation in 2002. We are specialized in manufacturing PPR, PVC, PE pipes and fittings for more than 15 years. Ruihe is a modern high-tech enterprise who is able to do scientific research, product development, production, sales and after-sales service with the certificates of WaterMark, CE, ISO 9001, ISO 14001, OHSAS 18001, WRAS, GOST-R and third party inspection test reports ( such as SGS, BV, National Test Report and etc ).
The affiliated holding companies of Ruihe are: Shanghai Ruihe Electric Technology Co., Ltd., Shanghai Ruihe Waterproof Technology Co., Ltd., Shanghai Yitong Electronic Equipment Co., Ltd.
Currently, Our annual sales turnover has reached more than USD 60, 000, 000. Our factory covers 80, 000 square meters with more than 300 employees. 218 offices have been set at home and abroad. Ruihe products have been exported to Oceanian countries such as Australia, New Zealand, Papua New Guinea, Republic of Vanuatu; Asian countries such as Thailand, Philippines, Sri Lanka, the UAE, Malaysia, Pakistan, Iraq; African countries such as Kenya, Guinea, Togo, the Niger; American countries such as America, Cuba, Brazil; European countries such as Russia, Germany, Ireland, Italy, England etc.
REHOME is the brand for international market for Shanghai Ruihe Enterprise Group Co., Ltd.
With a clear international market strategy, the leaders of Ruihe encourage all of the staffs to work harder and more efficiently, showing a young and active organization to all of you.
