| Prod Model: |
ZD400T |
| Dimension Of Sliding Table: |
3200X415 mm |
| Tilting Saw Group: |
0-45 |
| Main Saw Motor Power: |
5.5 Kw |
| Lifting Of Saw Blade: |
Electrical Lifting |
| Cutting Degree Readout: |
Digital Readout |
| Weight: |
1100 Kgs |
| Overall Dimension: |
3250X3150X900 mm |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Precision |
| Certification: |
ISO |
Product Description

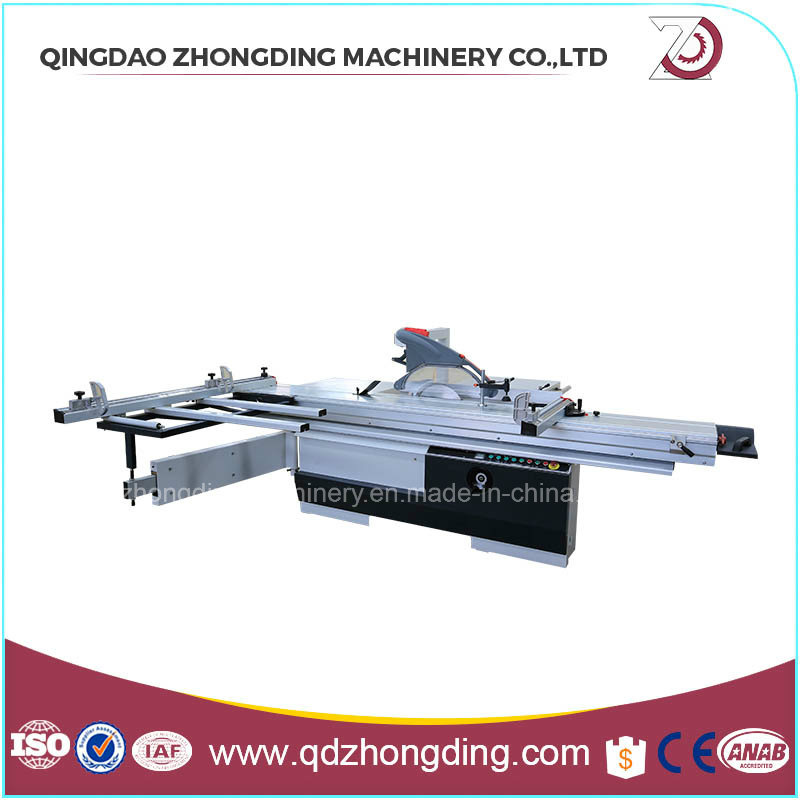

PANEL SAW ZD400T| Type | ZD400T |
| Dimension of sliding table | 3200x415 mm |
| Gross cut capacity | 3200 mm |
| Width of cut between saw blade and rip fence | 1250 mm |
| Tilting saw group | 0-45° |
| Diameter of main saw blade | 400 mm |
| Max cutting height (90°) | 125 mm |
| Speed of main saw spindle | 3000/4000/5000 r.p.m |
| Main saw motor power | 5.5 kw |
| Main spindle diameter | 30 mm |
| Diameter of scoring saw blade | 120 mm |
| Speed of scoring saw spindle | 8000 r.p.m |
| Scoring saw motor power | 1.1 kw |
| Scoring saw spindle diameter | 22 mm |
| Lifting of saw blade | Electrical lifting |
| Cutting degree readout | Digital readout |
| Weight | 1100 KGS |
| Overall dimension | 3250x3150x900 mm |
Feature:
- Apply to processing all kinds of density boards, shaving boards, artificial board, ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.
- Moveable table guide track is chromium steel bar structure, exact and durable
- The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent
- With oxidation treatment, the sliding table surface is beautiful and durable
- The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise
The saw blade lifting is electrical controlled with titling digital display to make the operation Product advantage
1) The width of the sliding table is 415mm, which makes the cutting more convenient and prefect.
2) The saw blade can tilt from 0-45º. The main saw blade is lifted electrically. The tilting angle is adjusted manually, but the tilting angle is digital readout, which makes the cutting more précised.
3) The machine body is Altendorf structure (frame structure) to keep the stability, and it is Altendorf sliding unit.
4) The European big sliding table is with steel roller, double guides movable table, which is anti-abrasive, long service life and high-precision.
Function:
Cutting MDF board, chipboard, plywood, melamine board,etc

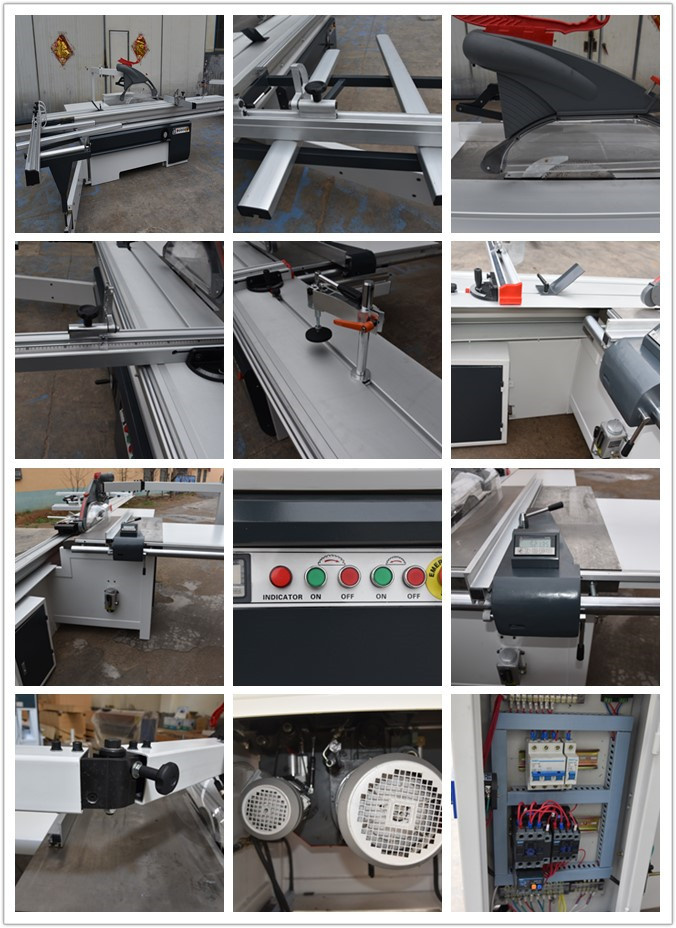

Product details:
Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659100
