Precision Auto Parts and Plastic Injection Mould for Ejector Sleeve Extensions (ESE001)

Precision Auto Parts and Plastic Injection Mould for Ejector Sleeve Extensions (ESE001)
Price: US $ 2/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Prod Model: ESE001 Ejector Sleeve Extensions
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Dme/DIN etc Standard and Customized Avaliable
Price: Manufactury Price
MOQ: 10PCS/Type
Delivery Time: Generally 7-8 Workdays or According to Quantity
Shaping Mode: Injection Mould
Process Combination Type: Progressive Die
Application: Hardware
Installation: Fixed
Design Software: Pdf, CAD, PRO-E, Ug, Other Drawing Formats
Certification: ISO9001:2008

Product Description

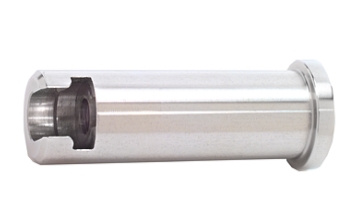

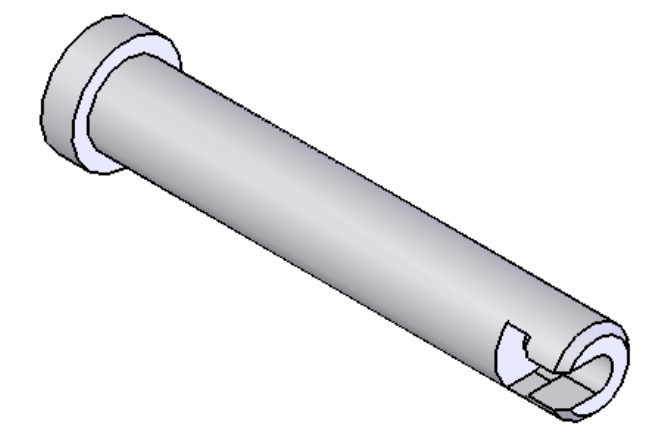

Ejector Sleeve Extensions

Ejector Sleeve Extensions give added length to sleeves quickly and inexpensively.
Four standard lengths are available for more versatility.
Standard Sleeve Extensions are designed to be compatible with Standard Sleeves.

Features

  • Lengthens Sleeves quickly and inexpensively
  • Four Lengths available

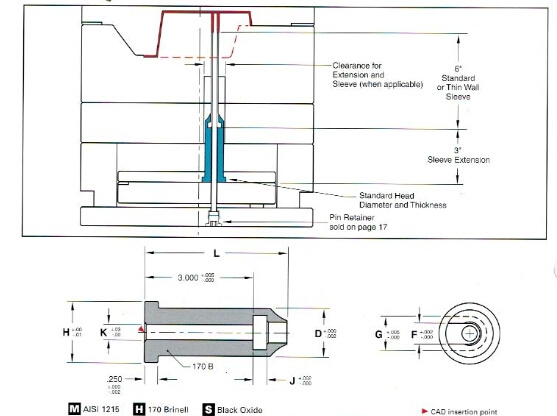

Specifications

* Applicable to all items below

Feature Size / Details
A Pin Clearance Hole Diameter Tolerance+.002 -.000
B Pin Head Clearance Hole Diameter Tolerance+.005 -.000
C I.D. Tolerance+.03 -.00
D Extension O.D. Tolerance+.000 -.002
Etched for IdentificationNo
Extension Head Thickness Tolerance+.000 -.002
H Head Diameter Tolerance+.000 -.010
Head TypeRound
L Shoulder Length Tolerance+.005 -.000
Material Type12L14
T Pin Head Clearance Thickness Tolerance+.002 -.000
Unit of Measure Inch
