Precision Dicing Saw for 8" Wafer Cutting (DS820)
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
DS820 |
| Workpiece Size: |
Φ200mm 180mm (for Square) |
| Groove Depth: |
≤4mm or Customize |
| Alignment System: |
70X Straight Light + Ring Light(210X Optional) |
| Spindle: Revolution Speed Range: |
10000~50000 Rpm |
| Spindle: Output Power: |
1.5kw |
| X Axis: Feed Speed Range: |
0.1~400mm/S |
| Y Axis: Single-Step Accuracy: |
≤0.003mm/5mm |
| Z Axis: Repeatability Accuracy: |
0.002mm |
| Power Supply: |
Single Phase, AC220V±10% |
| Power Consumption: |
0.9kw (Processing); 0.8kw (Warming up) |
| Type: |
Fixed |
| Application: |
Blue Glass, Silicon, GaAs, PCB, Ceramic, Sapphire |
| Power Source: |
Servo Motor+Step Motor+Dd Motor |
Product Description

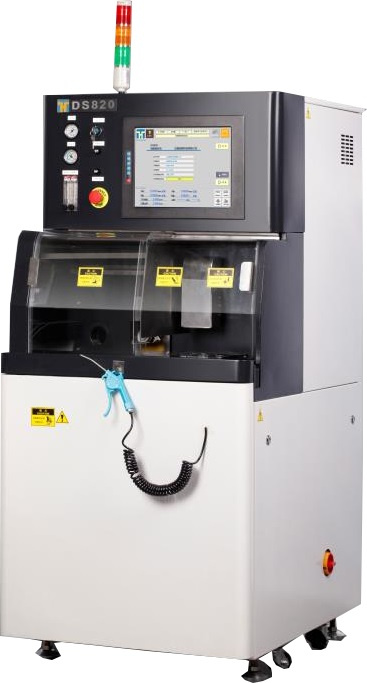

DS820 precision dicing saw can be widely used for a variety of processing requirements. DS820 uses DS-200 software control system, touch screen control and GUI interface so that the image alignment of workpiece is simple and convenient. DS820 has stable performance and low failure rate. DS820 is applicable to the cutting process of blue glass, silicon, GaAs, PCB, ceramic, sapphire, crystal, lithium niobate, alumina and quartz. Features- Available for workpiece with the dimension of 210 x 210mm
- Available for cutting large-size square-chip and small size multi-chip materials
- Cutting range can be adjusted based on needs to improve production efficiency
- Reasonable structure
- Low failure rate
- Convenience for maintenance
Specifications
|
| Configuration and performance | Workpiece size | Φ200mm | 180mm (for square) |
| Groove depth | ≤4mm or customize |
| Table flatness | ±0.005mm/100mm |
| Alignment system | 70x straight light + ring light (210x optional) |
| Spindle | Revolution speed range | 10000~50000 rpm |
| Output power | 1.5kW |
| X axis | Drive mode | Servo motor |
| Max. stroke | 380mm |
| Stroke resolution | 0.001mm |
| Feed speed range | 0.1~400mm/s |
| Y axis | Drive mode | Step motor + grating closed-loop control system |
| Max. stroke | 210mm |
| Stroke resolution | 0.0005mm |
| Single-step positioning accuracy | ≤0.003mm/5mm |
| Index positioning accuracy | ≤0.005mm/210mm |
| Z axis | Drive mode | Step motor |
| Max. stroke | 30mm |
| Stroke resolution | 0.001mm |
| Repeatability accuracy | 0.002mm |
| Θ axis | Drive mode | DD motor |
| Max. rotating angle | 360° |
| Angle resolution | 0.0005° |
| Basic specification | Power supply | Single phase, AC220V±10% |
| Power consumption | 0.9kW (processing) |
| 0.8kW (warming up) |
| Compressed air | Pressure: 0.55~0.8Mpa; average flow rate: 350L/min |
| Cleaning water | Pressure: 0.2~0.4Mpa; flow rate: 3.0L/min |
| Cooling water | Pressure: 0.2~0.4Mpa; flow rate: 1.5L/min |
| Exhaust air rate | 1.8m3/min (ANR) |
| Overall dimensions W×D×H | 775mm×960mm×1650 mm |
| Weight | 600kg |
• Use clean, oil-free air (dew point below -15, residual oil: 0.1 ppm, and filtration rating: 0.01μm/99.5 % or more).• Keep room temperature fluctuations within ±1ºC of the set value (Set value should be between 20ºC - 25ºC), indoor humidity no more than 80% and no condensation.• Keep cutting water and cleaning water 2ºC above room temperature (fluctuations within ±1ºC). Keep temperature of cooling water the same as room temperature.• The machines should be used in an environment, free from external vibration. Do not install machine near a ventilation opening, heat generation equipment or oil mist generating parts.• This machine uses water. In case of water leakage, please install the machine on the floor with sufficient waterproofing and drainage treatments.• Please follow the product manual of our company.
