Super Precision Dicing Saw for Wafer Cutting (DS623)
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
DS623 |
| Workpiece Size: |
Φ160mm ≤150mm X 150mm |
| Groove Depth: |
≤4mm or Customize |
| Alignment System: |
70X Straight Light + Ring Light(240X Optional) |
| Spindle: Revolution Speed Range: |
10000~50000 Rpm |
| Spindle: Output Power: |
1.5kw (2.4kw Optional) |
| X Axis: Feed Speed Range: |
0.1~500mm/S |
| Y Axis: Single-Step Accuracy: |
≤0.002mm/5mm |
| Z Axis: Repeatability Accuracy: |
0.002mm |
| Power Supply: |
Single Phase, AC220V±10% |
| Power Consumption: |
0.8kw (Processing); 0.7kw (Warming up) |
| Type: |
Fixed |
| Application: |
Silicon, PCB, Ceramic, Glass, Lithium Niobate, etc |
| Power Source: |
Servo Motor+Step Motor |
Product Description

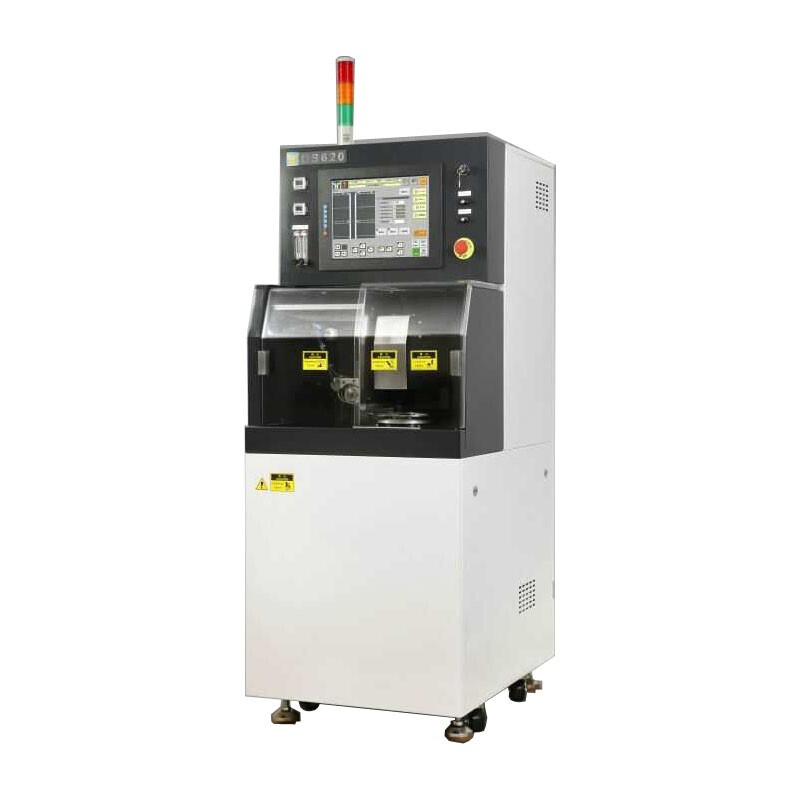

DS623 super precision dicing machine uses the imported high-power DC spindle and performance is more excellent. The spindle has self-locking function and makes it much easier to replace the blade. DS623 is applicable to the cutting process of silicon, PCB, ceramic, glass, lithium niobate, alumina, quartz and sapphire.Features- With dual lens and higher alignment accuracy
- Broken Blade Detector (BBD)
- Grinding machine function
- Automatic edge-searching function
- Data scanning function
Specifications
|
| Configuration and performance | Workpiece size | Φ160mm | ≤150mm x 150mm |
| Groove depth | ≤4mm or customize |
| Table flatness | ±0.005mm/150mm |
| Alignment system | 70x straight light + ring light (240x optional) |
| Spindle | Revolution speed range | 10000~50000 rpm |
| Output power | 1.5kW (2.4kW optional) |
| X axis | Drive mode | Servo motor |
| Max. stroke | 240mm |
| Stroke resolution | 0.001mm |
| Feed speed range | 0.1~500mm/s |
| Y axis | Drive mode | Step motor + grating closed-loop control system |
| Max. stroke | 170mm |
| Stroke resolution | 0.0001mm |
| Single-step positioning accuracy | ≤0.002mm/5mm |
| Index positioning accuracy | ≤0.004mm/170mm |
| Z axis | Drive mode | Step motor |
| Max. stroke | 30mm |
| Stroke resolution | 0.001mm |
| Repeatability accuracy | 0.002mm |
| Θ axis | Drive mode | Imported DD motor |
| Max. rotating angle | 380° |
| Angle resolution | 0.0002° |
| Basic specification | Power supply | Single phase, AC220V±10% |
| Power consumption | 0.8kW (processing) |
| 0.7kW (warming up) |
| Compressed air | Pressure: 0.55~0.8Mpa; average flow rate: 450L/min |
| Cleaning water | Pressure: 0.2~0.4Mpa; flow rate: 3.5L/min |
| Cooling water | Pressure: 0.2~0.4Mpa; flow rate: 1.5L/min |
| Exhaust air rate | 1.5m3/min (ANR) |
| Overall dimensions W×D×H | 580mm×850mm×1680mm |
| Weight | 500kg |
• Use clean, oil-free air (dew point below -15, residual oil: 0.1 ppm, and filtration rating: 0.01μm/99.5 % or more).• Keep room temperature fluctuations within ±1ºC of the set value (Set value should be between 20ºC - 25ºC), indoor humidity no more than 80% and no condensation.• Keep cutting water and cleaning water 2ºC above room temperature (fluctuations within ±1ºC). Keep temperature of cooling water the same as room temperature.• The machines should be used in an environment, free from external vibration. Do not install machine near a ventilation opening, heat generation equipment or oil mist generating parts.• This machine uses water. In case of water leakage, please install the machine on the floor with sufficient waterproofing and drainage treatments.• Please follow the product manual of our company.
